产品介绍

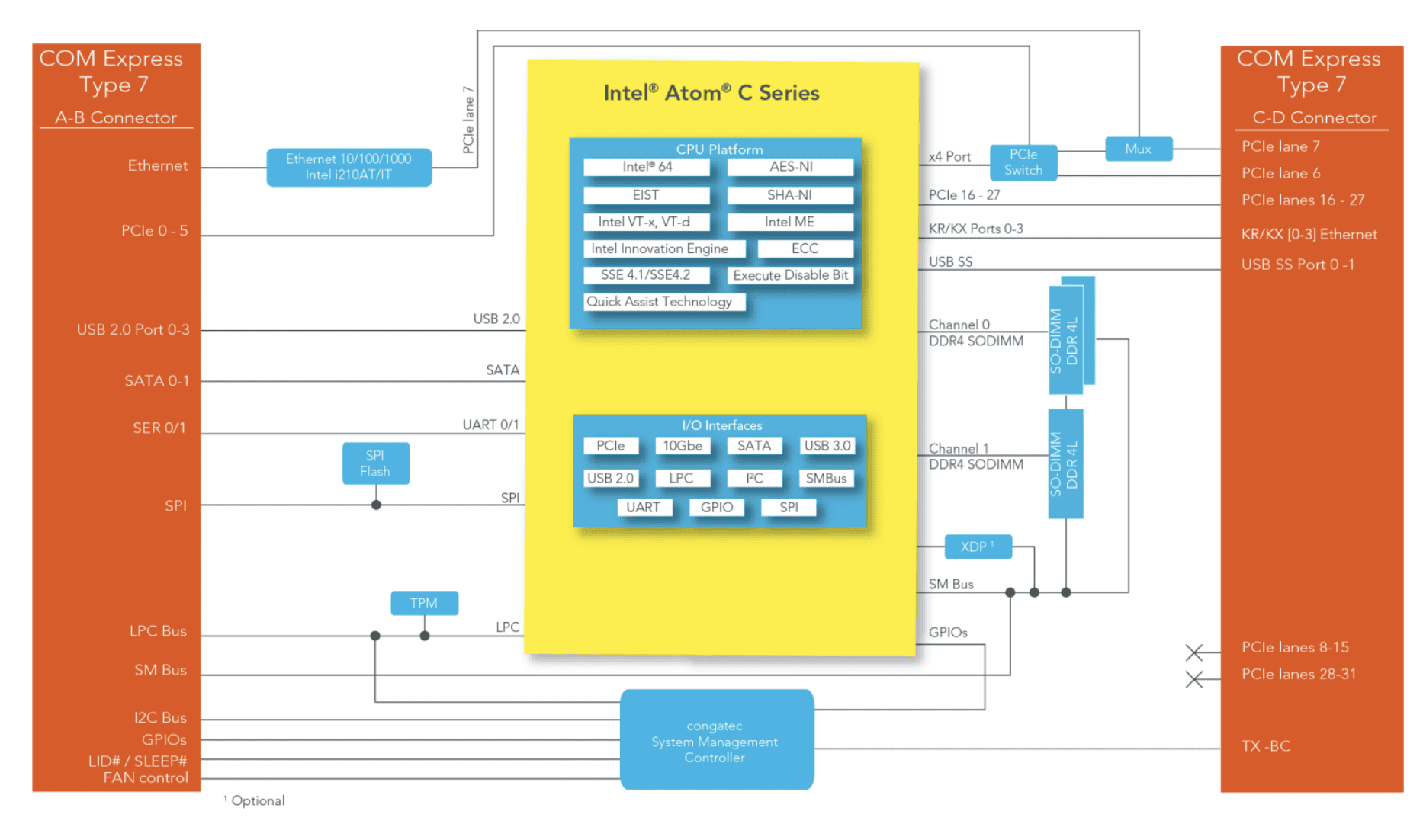

产品规格
| Item | Description |
| Formfactor | COM Express Basic |
| CPU |
Intel® Atom™ C3958 (16 x 2.0 GHz, 16MB cache, 31W)
Intel® Atom™ C3858 (12 x 2.0 GHz, 12MB cache, 25W)
Intel® Atom™ C3758 (8 x 2.2 GHz, 16MB cache, 25W)
Intel® Atom™ C3558 (4 x 2.2 GHz, 8MB cache, 16W)
Intel® Atom™ C3538 (4 x 2.1 GHz, 8MB cache, 15W)
Intel® Atom™ C3808 (12 x 2.0 GHz, 12MB cache, 24W)
Intel® Atom™ C3708 (8 x 1.7 GHz, 16MB cache, 17W)
Intel® Atom™ C3508 (4 x 1.6 GHz, 8MB cache, 11.5W)
Intel® Atom® C3308 (2 x 1.6 GHz, 4MB, 9.5W)
|
| DRAM | up to 3 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (96 GByte total) with 2400 MT/s | ECC and non-ECC supported |
| Ethernet |
4x 10GbE with KR interface support
|
| I/O Interfaces |
12 x PCI Express GEN 3.0 lanes
8 x PCIe Gen2
2 x USB 3.0
4 x USB 2.0
2 x SATA III (6Gb/s)
LPC bus
SPI
2 x UART
SM-Bus
|
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control |
| embedded BIOS Features |
OEM Logo
Flash Update
AMI Aptio UEFI
|
| Item | Description |
| Security |
Trusted Platform Module (TPM) | Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator
|
| Operating Systems |
Microsoft® Windows Server 2016
Microsoft® Windows Server 2012 R2
Microsoft® Windows Server 2012
Microsoft® Windows Server 2008 R2 SP1
Microsoft® Windows® 10
Microsoft® Windows® 8.1
Microsoft® Windows® 7
RHEL 6.6 & 7.1
SuSE 11 SP4 & 12 SP1
Fedora 22
Ubuntu 14.10
CentOS 6.6 & 7.1
FreeBSD 10.3 & 11
Yocto v.2.0 Kernel 4.1
Wind River VxWorks 7
VMware
ESXi
|
| Temperature |
Commercial: Operating: 0 to +60°C Storage: -20 to +70°C
Industrial: Operating: -40 to +85°C Storage: -40 to +85°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 95 x 125 mm (3.74″ x 4.92″) |
订购资讯
| P/N | Product name | Description |
| 048200 | conga-B7AC/A-C3958 | COM Express Type 7 Basic module based on Intel® Atom™ C3958 16-core processor with 2.0 GHz, 16MB Cache and dual channel DDR4 2400 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 10GbE KR interface ports. Commercial temperature range. |
| 048201 | conga-B7AC/A-C3858 | COM Express Type 7 Basic module based on Intel® Atom™ C3858 12-core processor with 2.0 GHz, 12MB Cache and dual channel DDR4 2400 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 10GbE KR interface ports. Commercial temperature range. |
| 048202 | conga-B7AC/A-C3758 | COM Express Type 7 Basic module based on Intel® Atom™ C3758 8-core processor with 2.2 GHz, 16MB Cache and dual channel DDR4 2400 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 10GbE KR interface ports. Commercial temperature range. |
| 048203 | conga-B7AC/A-C3558 | COM Express Type 7 Basic module based on Intel® Atom™ C3558 4-core processor with 2.2 GHz, 8MB Cache and dual channel DDR4 2133 MT/s memory interface for up to 96 GByte (formerly Denverton). Features two 2.5GbE KX and two 10GbE KR interface ports. Commercial temperature range. |
| 048204 | conga-B7AC/A-C3538 | COM Express Type 7 Basic module based on Intel® Atom™ C3538 4-core processor with 2.1 GHz, 8MB Cache and dual channel DDR4 2133 MT/s memory interface for up to 96 GByte (formerly Denverton). Features two 2.5GbE KX and two 10GbE KR interface ports. Commercial temperature range. |
| 048205 | conga-B7AC/A-C3308 | COM Express Type 7 Basic module based on Intel® Atom™ C3538 2-core processor with 1.6 GHz, 4MB Cache and dual channel DDR4 2133 MT/s memory interface for up to 64 GByte (formerly Denverton). Features four 2.5GbE KX interface ports. Commercial temperature range. |
| 048210 | conga-B7AC/i-A-C3808 | COM Express Type 7 Basic module based on Intel® Atom™ C3808 12-core processor with 2.0 GHz, 12MB Cache and dual channel DDR4 2133 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 10GbE KR interface ports. Industrial temperature range. |
| 048211 | conga-B7AC/i-A-C3708 | COM Express Type 7 Basic module based on Intel® Atom™ C3708 8-core processor with 1.7 GHz, 16MB Cache and dual channel DDR4 2133 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 10GbE KR interface ports. Industrial temperature range. |
| 048213 | conga-B7AC/i-A-C3508 | COM Express Type 7 Basic module based on Intel® Atom™ C3508 4-core processor with 1.6 GHz, 8MB Cache and dual channel DDR4 1866 MT/s memory interface for up to 96 GByte (formerly Denverton). Features four 2.5GbE KX interface ports. Industrial temperature range. |
相关配件
| P/N | Product name | Description |
| 048251 | conga-B7AC/HSP-Cu-B | Standard heatspreader for COM Express Basic Type 7 module conga-B7AC with integrated copper plate. Intended for modules with TDP up to 17W (Cu = Copper plate | B = Bore hole standoffs) |
| 048252 | conga-B7AC/HSP-Cu-T | Standard heatspreader for COM Express Basic Type 7 module conga-B7AC with integrated copper plate. Intended for versions up to 17W TDP (Cu = Copper plate | T = M2.5 threaded standoffs) |
| 048253 | conga-B7AC/CSA-Cu-B | Standard active cooling solution for COM Express Basic Type 7 module conga-B7AC with integrated copper plate, 15mm fins, 20mm overall heat sink height and integrated 12V fan. (Cu = Copper plate | B = 2.7mm Bore hole standoffs) |
| 048254 | conga-B7AC/CSA-Cu-T | Standard active cooling solution for COM Express Basic Type 7 module conga-B7AC with integrated copper plate, 15mm fins, 20mm overall heat sink height and integrated 12V fan. (Cu = Copper plate | T = M2.5 threaded standoffs) |
| 048255 | conga-B7AC/CSP-Cu-B | Standard passive cooling solution for COM Express Basic Type 7 module conga-B7AC with integrated copper plate, 15mm fins and 20mm overall heat sink height. (Cu = copper plate | B = Bore hole standoffs) |
| 048256 | conga-B7AC/CSP-Cu-T | Standard passive cooling solution for high performance COM Express Basic Type 7 module conga-B7AC with integrated copper plate, 15mm fins and 20mm overall heat sink height. (Cu = copper plate | T = M2.5 Threaded standoffs) |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-B7AC
2024/06/26
Manual
User’s Guide for conga-B7AC
2024/10/30
Manual
Post Code List
2015/06/15
