conga-B7XD
COM Express Type 7 Basic module based on the latest Intel® Xeon™ and Intel® Pentium™ processor family
- Up to Intel® Xeon® D 1577 with 16 Cores
- 2x 10 Gigabit Ethernet KR Interface
- 32x PCI Express lanes
- up to 16 processor cores
- up to 24MByte Cache with Intel Cache Allocation Technology
- industrial grade variants
产品介绍
产品规格
订购资讯
相关配件
资讯下载

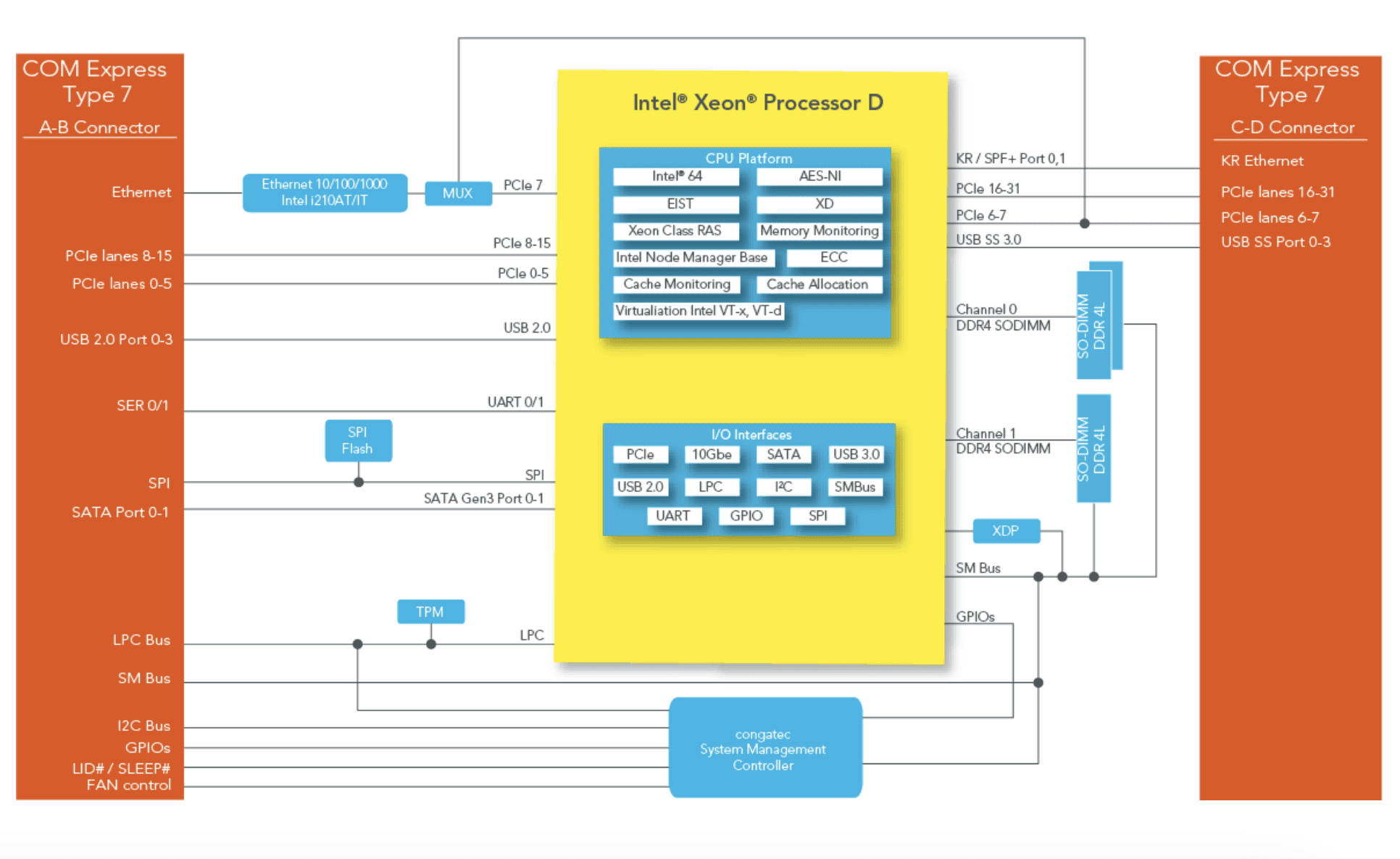

产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Basic |
| CPU |
Intel® Xeon® D1577 (16 x 1.3 GHz, 24MB cache, 45W)
Intel® Xeon® D1548 (8 x 2.0 GHz, 18MB cache, 45W)
Intel® Xeon® D1527 (4 x 2.2 GHz, 6MB cache, 35W)
Intel® Xeon® D1559 (12 x 1.5 GHz, 18MB cache, 45W)
Intel® Xeon® D1539 (8 x 1.6 GHz, 12MB cache, 35W)
Intel® Xeon® D1529 (4 x 1.3 GHz, 6MB cache, 20W)
Intel® Xeon® D1567 (12 x 2.1 GHz, 18MB cache, 65W)
Intel® Pentium™ D1509 (2 x 1.5 GHz, 3MB cache, 19W)
Intel® Pentium™ D1519 (4 x 1.5 GHz, 6MB cache, 25W)
Intel® Pentium™ D1508 (2 x 2.2 GHz, 3MB cache, 19W)
|
| DRAM | up to 3 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (96 GByte total) with 2400 MT/s | ECC and non-ECC supported |
| Ethernet |
1x Intel I210AT /IT Gigabit Ethernet Controller | 2x 10GbE with KR interface support – the 10GbE PHY must be implemented on the carrier board
|
| I/O Interfaces |
24 x PCI Express GEN 3.0 lanes
8 x PCI Express 2.0
4 x USB 2.0
4 x USB 3.0
LPC bus
SPI
I²C bus
2 x UART
2 x SATA III (6Gb/s)
|
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control |
| embedded BIOS Features |
OEM Logo
OEM CMOS Defaults
Flash Update
AMI Aptio UEFI
|
| Item | Description |
| Security |
Trusted Platform Module (TPM) | Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator
|
| Power Management |
ACPI 5 .0 compliant, Smart Battery Management
|
| Operating Systems |
Microsoft® Windows Server 2016
Microsoft® Windows Server 2012 R2
Microsoft® Windows Server 2012
Microsoft® Windows Server 2008 R2 SP1
Microsoft® Windows 10 Enterprise
Microsoft® Windows® 8.1
Microsoft® Windows® 7
RHEL 6.6 & 7.1
SuSE 11 SP4 & 12 SP1
Fedora 22
Ubuntu 14.10
CentOS 6.6 & 7.1
FreeBSD 10.3 & 11
Yocto v.2.0 Kernel 4.1
VMware
ESXi
RTS Hypervisor
Wind River VxWorks 7
|
| Temperature |
Standard
Operating: 0 to +60°C Storage: -20 to +80°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 95 x 125 mm (3.74″ x 4.92″) |
订购资讯
| P/N | Product name | Description |
| 047500 | conga-B7XD/X-D1577 | COM Express Type 7 Basic module with Intel® Xeon® D1577 processor with 16 Cores, 1.3GHz up to 2.1GHz core frequency, 24MB Cache and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 45W TDP, commercial temperature range. |
| 047501 | conga-B7XD/X-D1567 | COM Express Type 7 Basic module with Intel® Xeon® D1567 processor with 12 Cores, 2.1GHz up to 2.7GHz core frequency, 18MB Cache and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 65W TDP, commercial temperature range. |
| 047502 | conga-B7XD/X-D1548 | COM Express Type 7 Basic module with Intel® Xeon® D1548 processor with 8 Cores, 2.0GHz up to 2.6GHz core frequency, 12MB Cache with and 2400 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 45W TDP, commercial temperature range. |
| 047503 | conga-B7XD/X-D1527 | COM Express Type 7 Basic module with Intel® Xeon® D1527 processor with 4 Cores, 2.2GHz up to 2.7GHz core frequency, 6MB Cache with and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 35W TDP, commercial temperature range. |
| 047504 | conga-B7XD/P-D1509 | COM Express Type 7 Basic module with Intel® Pentium™ D1509 processor with 2 Cores, 1.5GHz core frequency, 3MB Cache and 1600 MT/s dual channel DDR4 memory interface for up to 96GB. 19W TDP, commercial temperature range. |
| 047505 | conga-B7XD/P-D1508 | COM Express Type 7 Basic module with Intel® Pentium™ D1508 processor with 2 Cores, 2.2GHz up to 2.6GHz core frequency, 3MB Cache and 1866 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 25W TDP, commercial temperature range. |
| 047520 | conga-B7XD/i-X-D1559 | COM Express Type 7 Basic module with Intel® Xeon® D1559 processor with 12 Cores, 1.5GHz up to 2.1GHz core frequency, 18MB Cache and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 45W TDP, industrial temperature range. |
| 047521 | conga-B7XD/i-X-D1539 | COM Express Type 7 Basic module with Intel® Xeon® D1539 processor with 8 Cores, 1.6GHz up to 2.2GHz core frequency, 12MB Cache and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 35W TDP, industrial temperature range. |
| 047522 | conga-B7XD/i-X-D1529 | COM Express Type 7 Basic module with Intel® Xeon® D1529 processor with 4 Cores, 1.3GHz core frequency, 6MB Cache and 1600 MT/s dual channel DDR4 memory interface for up to 96GB. 20W TDP, industrial temperature range. |
| 047523 | conga-B7XD/i-P-D1519 | COM Express Type 7 Basic module with Intel® Pentium™ D1519 processor with 4 Cores, 1.5GHz up to 2.1GHz core frequency, 6MB Cache and 2133 MT/s dual channel DDR4 memory interface for up to 96GB. Features two 10GbE KR interface ports. 25W TDP, industrial temperature range. |
相关配件
| P/N | Product name | Description |
| 047530 | B7XD/CSA-HP-T | Standard active cooling solution for high performance COM Express Type 7 module congaB7XD with integrated heat pipes, 70mm radial 12V PWM fan and 30mm overall heat sink height. All standoffs are M2.5mm threaded. |
| 047531 | B7XD/CSA-HP-B | Standard active cooling solution for high performance COM Express Type 7 module congaB7XD with integrated heat pipes, 70mm radial 12V PWM fan and 30mm overall heat sink height. All standoffs are with 2.7mm bore hole. |
| 047532 | B7XD/HSP-VC-T | Standard heatspreader for high performance COM Express Type 7 module conga-B7XD with integrated vapor chamber. All standoffs are M2.5mm threaded. |
| 047533 | B7XD/HSP-VC-B | Standard heatspreader for high performance COM Express Type 7 module conga-B7XD with integrated vapor chamber. All standoffs are with 2.7mm bore hole. |
| 047535 | B7XD/CSA-Cu-B | Standard active cooling solution for low and mid range performance COM Express Type 7 module conga-B7XD with integrated copper plate, 70mm 12V radial FAN and 27mm overall heat sink height. Intended for modules with TDP up to 35W * Cu = Copper plate | * B = 2.7mm Bore hole standoffs |
| 047536 | B7XD/CSA-Cu-T | Standard active cooling solution for low and mid range performance COM Express Type 7 module conga-B7XD with integrated copper plate, 70mm 12V radial FAN and 27mm overall heat sink height. Intended for modules with TDP up to 35W * Cu = Copper plate | * T = M2.5 Threaded standoffs |
| 047537 | B7XD/CSP-Cu-B | Standard passive cooling solution for low and mid range performance COM Express Type 7 module conga-B7XD with integrated copper plate and 26mm overall heat sink height. Intended for modules with TDP up to 20W * Cu = Copper plate | * B = 2.7mm Bore hole standoffs |
| 047538 | B7XD/CSP-Cu-T | Standard passive cooling solution for low and mid range performance COM Express Type 7 module conga-B7XD with integrated copper plate and 26mm overall heat sink height. Intended for modules with TDP up to 20W * Cu = Copper plate | * T = M2.5 Threaded standoffs |
| 047539 | B7XD/HSP-Cu-B | Standard heatspreader for COM Express Type 7 module conga-B7XD with integrated copper plate and 11mm overall height. * Cu = Copper plate | * B = 2.7mm Bore hole standoffs |
| 047540 | B7XD/HSP-Cu-T | Standard heatspreader for COM Express Type 7 module conga-B7XD with integrated copper plate and 11mm overall height. * Cu = Copper plate | * T = M2.5 Threaded standoffs |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-B7XD
2024/06/26
Manual
User’s Guide for conga-B7XD
2024/10/30
Manual
Post Code List
2015/06/15
