conga-B7XI
COM Express Type 7 Basic module based on Intel® Xeon® D processor series (code name “Ice Lake”)
- Industrial Use Condition with extended Temperature options
- 32 PCIe Express lanes
- AI Capabilities with Intel® DL boost
- Real Time Capable Platform
- Supporting up to 128 GB DDR4 2666MT/s Memory
产品介绍
产品规格
订购资讯
相关配件
资讯下载

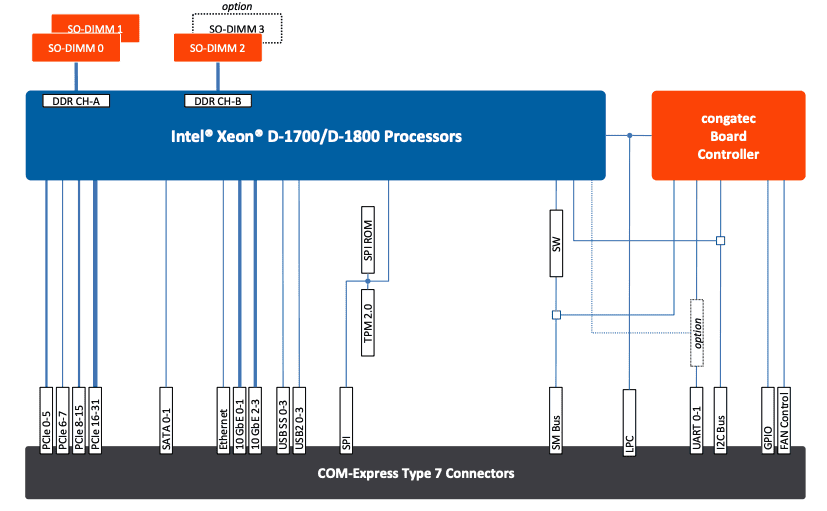

产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Basic |
| CPU |
Intel® Xeon® D-1848TER (10 x 2.0 GHz, 15 MB cache, 100G Eth, 57W)
Intel® Xeon® D-1712TR (4 x 2.0 GHz, 10 MB cache, 50G Eth, 39W)
Intel® Xeon® D-1735TR (8 x 2.2 GHz, 15 MB cache, 50G Eth, 59W)
Intel® Xeon® D-1715TER (4 x 2.4 GHz, 10 MB cache, 50G Eth, 50W)
Intel® Xeon® D-1732TE (8 x 1.9 GHz, 15 MB cache, 50G Eth, 52W)
Intel® Xeon® D-1746TER (10 x 2.0 GHz, 15 MB cache, 100G Eth, 67W)
|
| DRAM | Up to 4x SO-DIMM sockets (on request) for DDR4 memory modules up to 32 GByte each (128 GByte total) with 2666 MT/s |
| Ethernet |
1 x 2.5GbE TSN Ethernet
4 x 10GbE supporting CEI/KR/SFI
|
| I/O Interfaces |
16 x PCIe Gen4
16 x PCIe Gen3
4 x USB 3.0
4 x USB 2.0
2 x SATA III (6Gb/s)
SPI
2 x UART
8 x GPIOs
|
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
64Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
Flash Update
|
| Item | Description |
| Security |
AMI Aptio UEFI
64Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
Flash Update
|
| Power Management | ACPI 5.0 with battery support |
| Operating Systems |
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Microsoft® Windows IoT 10 Core
Linux
Android
Yocto
|
| Hypervisor | RTS Real-Time Hypervisor |
| Temperature | Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +85°C Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C (depending on CPU) |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 95 x 125 mm (3.74″ x 4.92″) |
订购资讯
| P/N | Product name | Description |
| 050200 | conga-B7XI/D1746TER | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. |
| 050201 | conga-B7XI/D1732TE | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1732TE 8-core processor with 1.9 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. |
| 050202 | conga-B7XI/D1715TER | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1715TER 4-core processor with 2.4 GHz, 10MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 78°C. |
| 050210 | conga-B7XI/D1735TR | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1735TR 8-core processor with 2.2 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. |
| 050211 | conga-B7XI/D1712TR | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1712TR 4-core processor with 2.0 GHz, 10MB cache and dual channel DDR4 2400 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. |
| 050220 | conga-B7XI/D1746TER-4S | COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. 4x SODIMM sockets. |
| 050221 | conga-B7XI/D1848TER-4S | COM Express Revision 3.1 Type 7 Basic module based on Intel® Xeon® D-1848TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface(formerly Ice Lake-D Refresh LCC). Industrial temperature range from -40°C to 85°C. 4x SODIMM sockets. |
相关配件
| P/N | Product name | Description |
| 050250 | conga-B7XI/CSA-HP | Standard active cooling solution for COM Express Basic modules conga-B7XI with integrated heat pipes, 39.5mm overall cooling height and integrated 12V fan. |
| 050252 | conga-B7XI/CSP-HP | Standard passive cooling solution for COM Express Basic modules conga-B7XI with integrated heat pipes, 23.3mm overall cooling height. |
| 050254 | conga-B7XI/HSP-HP-B | Standard heatspreader for COM Express Basic modules conga-B7XI with integrated heat pipes and 11mm overall cooling height. Through hole mounting with bore hole standoffs Ø2.7mm. |
| 050255 | conga-B7XI/HSP-HP-T | Standard heatspreader for COM Express Basic modules conga-B7XI with integrated heat pipes and 11mm overall cooling height. Threaded mounting with threaded standoffs M2.5. |
| 050256 | conga-B7XI/HPA | Heat pipe Adapter for COM Express Basic modules conga-B7XI. Suitable for standard 8 mm heat pipes to optimize heat distribution. |
| 065420 | conga-X7EVAL | Evaluation Carrier Board for COM Express Type 7 modules with up to four 10GbE SFP+ fiber/copper ports implemented via Intel Cortina 10GbE Phy’s. The carrier features an Aspeed AST2500 Board Management Controller (BMC). |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-B7XI
2024/10/30
Manual
User’s Guide for conga-B7XI
2024/10/30
