| Item | Description |
| Formfactor | 3.5” |
| Board Type |
Application Carrier Board for COM HPC Mini Type Modules
|
| Internal IO |
M.2 Key M 2242/3042/2260/2280 (PCIe x4) |
| Item | Description |
| External IO |
2x 2.5GbE RJ45 |
| Power Management |
ACPI 5.0a with battery support
|
| Power Specification |
DC-In 10 – 24V
|
| Operating Systems |
Microsoft® Windows 11 |
| Hypervisor |
RTS Real-Time Hypervisor |
| Operating Temperature |
Operating Temp.: -40°C … +85°C
Storage Temp.: -40°C … +85°C
|
| Humidity |
Operating Hum.: 10% … 90% r. H. non cond.
Storage Hum.: 5% … 95% r. H. non cond.
|

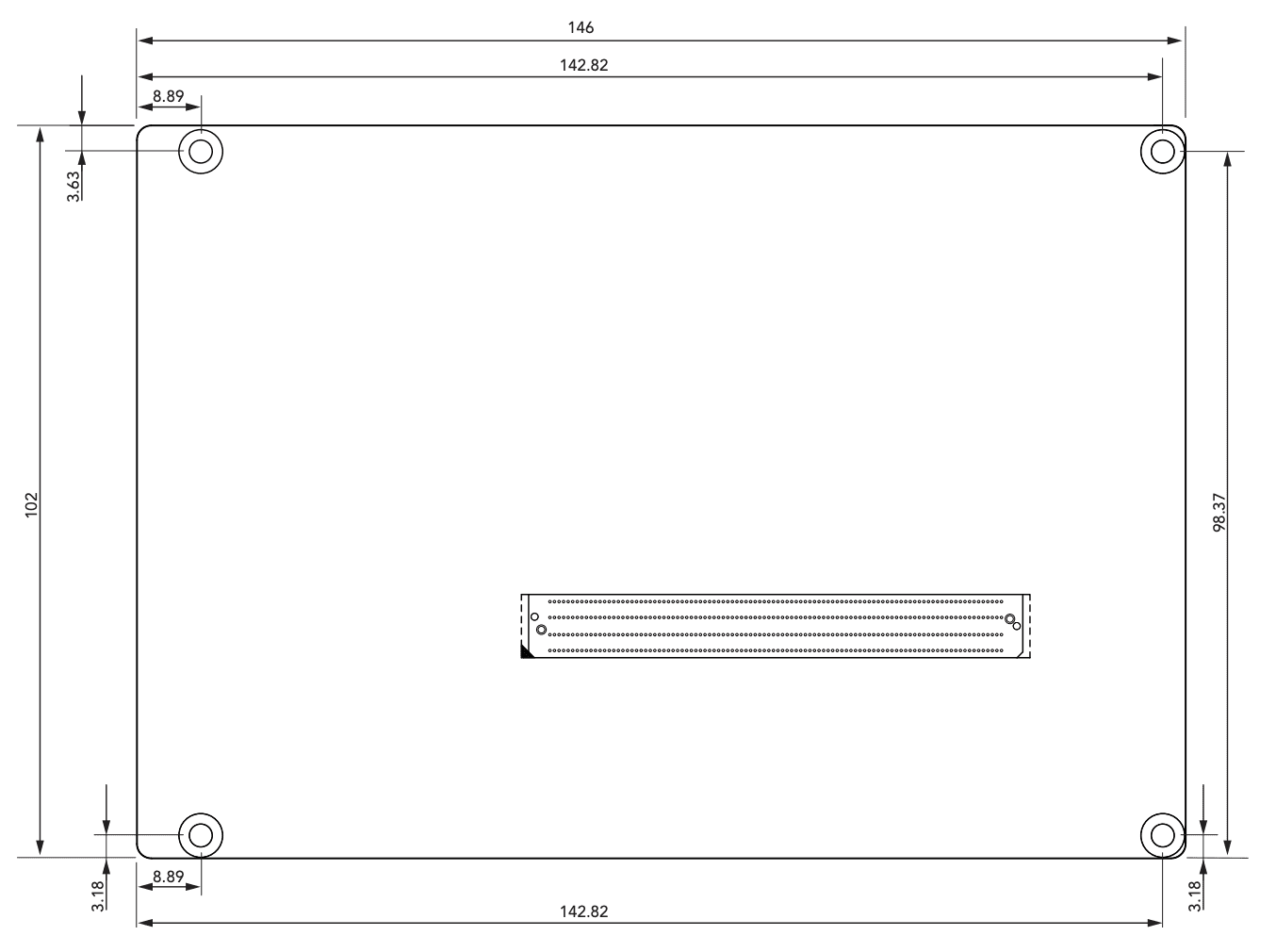

| Size |
146 x 102 mm
|
| P/N | Product name |
| 065630 | conga-HPC/3.5-Mini |
