conga-HPC/cRLS
COM-HPC Mini Size high performance module based on 13th Gen Intel® Core™ processor series (code name “Raptor Lake-P”)
- Intel® hybrid design combines Performance-cores with Efficient–cores
- Up to Intel® UHD Graphics 770 driven by Xe Architecture
- PCI Express Gen 4 and 5 | USB 3.2 Gen 2×2
- AI Acceleration based on Intel® Deep Learning Boost (VNNI)
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

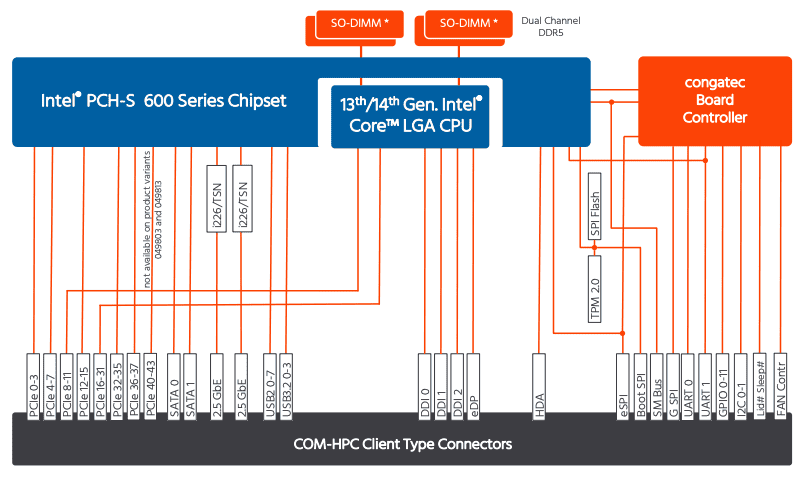

产品规格
| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Core™ i9-14900 (8 P-cores 2.0GHz up to 5.4GHz, 16 E-cores 1.5GHz up to 4.3GHz, 36MB cache, )
Intel® Core™ i7-14700 (8 P-cores 2.1GHz up to 5.3GHz, 12 E-cores 1.5GHz up to 4.2GHz, 33MB cache, )
Intel® Core™ i5-14400 (6 P-cores 2.5GHz up to 4.7GHz, 4 E-cores 1.8GHz up to 3.5GHz, 20MB cache)
Intel® Core™ i3-14100 (4 P-cores 3.5GHz up to 4.7GHz, 12MB cache, )
Intel® Core™ i3-13100E (4 P-cores 3.3GHz up to 4.4GHz, 12MB cache, 65W)
Intel® Core™ i5-13400E (6 P-cores 2.4GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.3GHz, 20MB cache, 65W)
Intel® Core™ i7-13700E (8 P-cores 1.9GHz up to 5.1GHz, 8 E-cores 1.3GHz up to 3.9GHz, 30MB cache, 65W)
Intel® Core™ i9-13900E (8 P-cores 1.8GHz up to 5.2GHz, 16 E-cores 1.3GHz up to 4.0GHz, 36MB cache, 65W)
|
| DRAM | U4 SO-DIMM sockets for DDR5 memory modules up to 32 GByte each | max. 128 GByte RAM system capacity |up to 4.000 MT/s | ECC Support (not supported on product variants 049803, 049812 and 049813) |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|
| I/O Interfaces |
1×16 PCIe Gen 5 (PEG port)
3×4 PCIe Gen 4
up to 3×4 PCIe Gen 3
1×2 PCIe Gen3
4 x USB 3.2 Gen2x2
8 x USB 2.0
2 x SATA
2 x UART
12 x GPIOs
|
| Graphics | Intel® UHD Graphics 730/770 driven by Xe Architecture | up to 32 EU |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 5.0a with battery support
|
| Operating Systems |
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Operating: 0°C to 60°C
Storage: -20°C to 80°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces |
3x DDI | eDP
|
| Size | 120 x 160 mm |
订购资讯
| P/N | Product name | Description |
| 049800 | conga-HPC/cRLS-i9-13900E | COM-HPC Client module based on Intel® Core™ i9-13900E LGA 1700 processor with 8 P-cores 1.8GHz up to 5.2GHz Turbo and 16 E-cores 1.3GHz up to 4.0GHz Turbo | 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S |
| 049801 | conga-HPC/cRLS-i7-13700E | COM-HPC Client module based on Intel® Core™ i7-13700E LGA 1700 processor with 8 P-cores 1.9GHz up to 5.1GHz Turbo and 8 E-cores 1.3GHz up to 3.9GHz Turbo | 30MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S |
| 049802 | conga-HPC/cRLS-i5-13400E | COM-HPC Client module based on Intel® Core™ i5-13400E LGA 1700 processor with 6 P-cores 2.4GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.3GHz Turbo | 20MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S |
| 049803 | conga-HPC/cRLS-i3-13100E | COM-HPC Client module based on Intel® Core™ i3-13100E LGA 1700 processor with 4 P-cores 3.3GHz up to 4.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Raptor Lake-S |
| 049810 | conga-HPC/cRLS-i9-14900 | COM-HPC Client module based on Intel® Core™ i9-14900 LGA 1700 processor with 8 P-cores 2.0GHz up to 5.4GHz Turbo and 16 E-cores 1.5GHz up to 4.3GHz Turbo | 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh |
| 049811 | conga-HPC/cRLS-i7-14700 | COM-HPC Client module based on Intel® Core™ i7-14700 LGA 1700 processor with 8 P-cores 2.1GHz up to 5.3GHz Turbo and 12 E-cores 1.5GHz up to 4.2GHz Turbo | 33MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh |
| 049812 | conga-HPC/cRLS-i5-14400 | COM-HPC Client module based on Intel® Core™ i5-14400 LGA 1700 processor with 6 P-cores 2.5GHz up to 4.7GHz Turbo and 4 E-cores 1.8GHz up to 3.5GHz Turbo | 20MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh |
| 049813 | conga-HPC/cRLS-i3-14100 | COM-HPC Client module based on Intel® Core™ i3-14100 LGA 1700 processor with 4 P-cores 3.5GHz up to 4.7GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Raptor Lake-S Refresh |
相关配件
| P/N | Product name | Description |
| 049650 | conga-HPC/cRLS-CSA-HP-B | Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm overall height and two integrated 12V fans. All standoffs are with 2.7mm bore hole. |
| 049651 | conga-HPC/cRLS-CSA-HP-T | Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm height and two integrated 12V fans. All standoffs are M2.5mm threaded. |
| 049652 | conga-HPC/cRLS-HSP-HP-B | Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole. |
| 049653 | conga-HPC/cRLS-HSP-HP-T | Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded. |
| 049654 | conga-HPC/cRLS-HPA | Standard heatpipe adapter for COM-HPC module conga-HPC/cRLS. |
| 065600 | conga-HPC/EVAL-Client | Evaluation Carrier Board for COM-HPC Client type Modules. |
| 065620 | conga-HPC/uATX-Client | COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size A,B and C. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/cRLS
2024/11/18
Manual
User’s Guide for conga-HPC/cRLS
2024/10/22
