conga-HPC/cTLH
COM-HPC Client Size B high performance module based on 11th Gen Intel® Core™ processor series (code name “Tiger Lake-H”)
- Embedded/Industrial use condition
- Extended temperature options available
- PCI Express Gen 4 | USB 4.0
- AI/DL Instruction Sets including VNNI
- Up to 128 Gbyte DDR4-3200 MT/s
- Integrated Xe (Gen 12) graphics with 32 EU
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍
产品规格

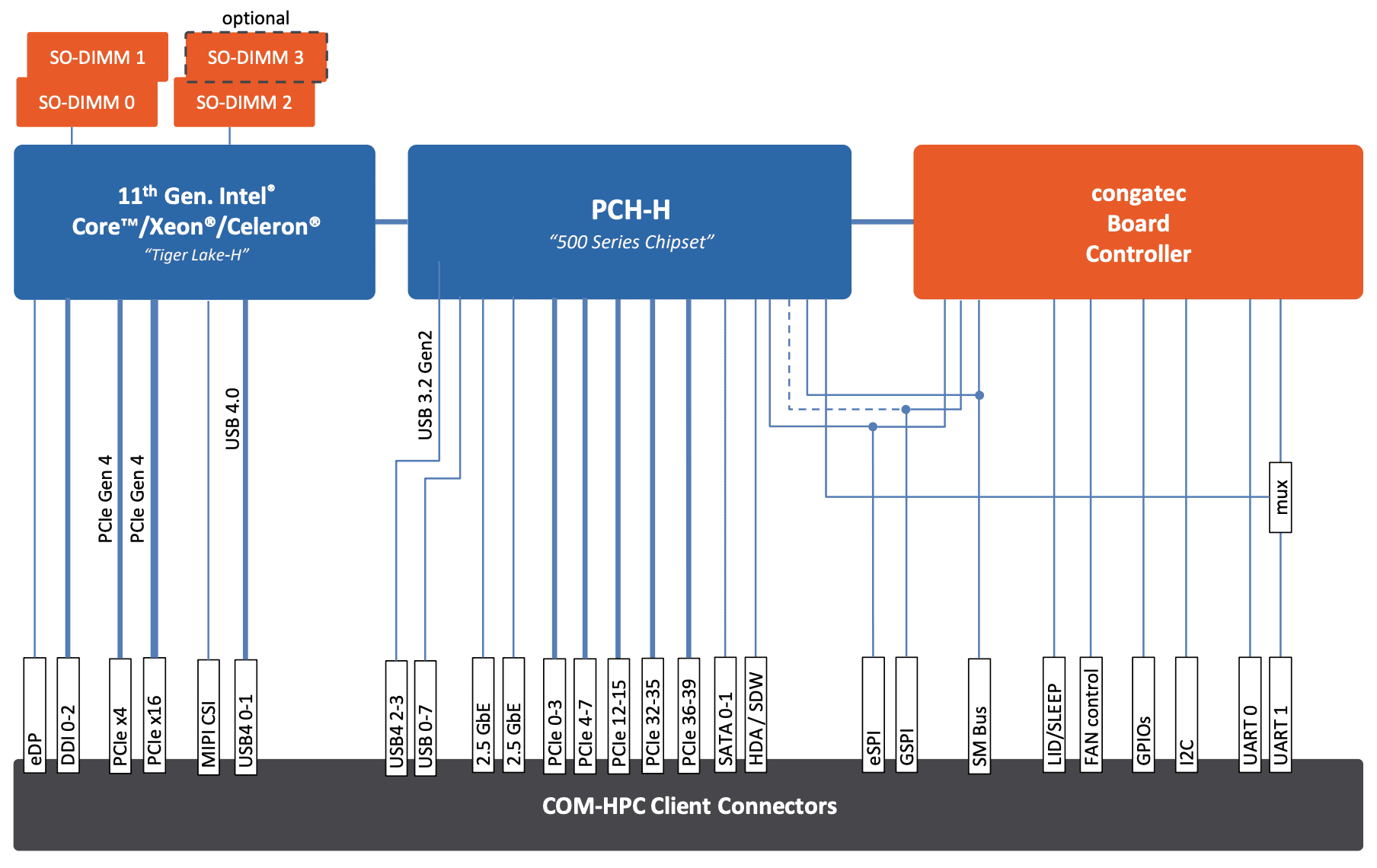

| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Xeon® W-11155MLE (4 x 1.8 GHz, 8 MB cache, 25W)
Intel® Xeon® W-11555MLE (6 x 1.9 GHz, 12 MB cache, 25W)
Intel® Xeon® W-11865MLE (8 x 1.5 GHz, 24 MB cache, 25W)
Intel® Xeon® W-11155MRE (4 x 2.4 GHz, 8 MB cache, 45W)
Intel® Xeon® W-11555MRE (6 x 2.6 GHz, 12 MB cache, 45W)
Intel® Xeon® W-11865MRE (8 x 2.6 GHz, 24 MB cache, 45W)
Intel® Celeron® 6600HE (2 x 2.6 GHz, 8 MB cache, 35W)
Intel® Core™ i3-11100HE (4 x 2.4 GHz, 8 MB cache, 45W)
Intel® Core™ i5-11500HE (6 x 2.6 GHz, 12 MB cache, 45W)
Intel® Core™ i7-11850HE (8 x 2.6 GHz, 24 MB cache, 45W)
|
| DRAM | Up to 4 SO-DIMM sockets for DDR4 ECC memory modules up to 32 GByte each (128 GByte total) with 3200 MT/s |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|
| I/O Interfaces |
4 x PCIe Gen4
I²C bus
12 x GPIOs
2 x UART
eSPI
2 x SATA III (6Gb/s)
8 x USB 2.0
2 x USB 3.2
2 x USB 4.0
20 x PCIe Gen3
PEG support x16 (PCIe Gen4)
4 x MIPI-CSI
|
| Graphics | Integrated Xe (Gen 12) graphics engine with up to 32 EU (Execution Units) | Supporting 4 independent display units (4x 4k/2x 8K) | Enhanced media (AV1/12b) with up to 2 Vdbox | Next Gen IPU6 with DPHY2.1 | DP 1.4 |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 6.0 with battery support
|
| Operating Systems |
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Industrial: Operating: -40 to +85°C | Storage: -40 to +85°C
Commercial: Operating: 0 to +60°C | Storage: -40 to +85°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces |
3x DP/DP++ | 1x eDP /LVDS
|
| Size | 120 x 120 mm |
订购资讯
| P/N | Product name | Description |
| 050800 | conga-HPC/cTLH-i7-11850HE | COM-HPC Size B module based on Intel® Core™ i7-11850HE 8-core processor with 2.6GHz up to 4.7GHz turbo boost, 24MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset QM580E | Intel® Tiger Lake-H | Commercial temperature range |
| 050801 | conga-HPC/cTLH-i5-11500HE | COM-HPC Size B module based on Intel® Core™ i5-11500HE 6-core processor with 2.6GHz up to 4.5GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset QM580E | Intel® Tiger Lake-H | Commercial temperature range |
| 050802 | conga-HPC/cTLH-i3-11100HE | COM-HPC Size B module based on Intel® Core™ i3-11100HE 4-core processor with 2.4GHz up to 4.4GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics with 16EU and dual channel DDR4 3200 MT/s memory interface. | Chipset HM570E | Intel® Tiger Lake-H | Commercial temperature range |
| 050803 | conga-HPC/cTLH-6600HE | COM-HPC Size B module based on Intel® Celeron 6600HE 2-core processor with 2.6GHz base frequency, 8MB Intel® Smart Cache, Intel® UHD Graphics with 16EU and dual channel DDR4 3200 MT/s memory interface. | Chipset HM570E | Intel® Tiger Lake-H | Commercial temperature range |
| 050810 | conga-HPC/cTLH-W-11865MRE | COM-HPC Size B module based on Intel® Xeon® W-11865MRE 8-core processor with 2.6GHz up to 4.7GHz turbo boost, 24MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Industrial temperature range |
| 050811 | conga-HPC/cTLH-W-11555MRE | COM-HPC Size B module based on Intel® Xeon® W-11555MRE 6-core processor with 2.6GHz up to 4.5GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Industrial temperature range |
| 050812 | conga-HPC/cTLH-W-11155MRE | COM-HPC Size B module based on Intel® Xeon® W-11155MRE 4-core processor with 2.4GHz up to 4.4GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics with 16EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Industrial temperature range |
| 050813 | conga-HPC/cTLH-W-11865MLE | COM-HPC Size B module based on Intel® Xeon® W-11865MLE 8-core processor with 1.5GHz up to 4.5GHz turbo boost, 24MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Commercial temperature range |
| 050814 | conga-HPC/cTLH-W-11555MLE | COM-HPC Size B module based on Intel® Xeon® W-11555MLE 6-core processor with 1.9GHz up to 4.4GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics with 32EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Commercial temperature range |
| 050815 | conga-HPC/cTLH-W-11155MLE | COM-HPC Size B module based on Intel® Xeon® W-11155MRE 4-core processor with 1.8GHz up to 3.1GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics with 16EU and dual channel DDR4 3200 MT/s memory interface. | Chipset RM590E | Intel® Tiger Lake-H | Commercial temperature range |
相关配件
| P/N | Product name | Description |
| 050850 | conga-HPC/cTLH-CSA-HP-B | Standard active cooling solution for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 050851 | conga-HPC/cTLH-CSA-HP-T | Standard active cooling solution for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 29mm height and integrated 12V fan. All standoffs are M2.5mm thread. |
| 050852 | conga-HPC/cTLH-CSP-HP-B | Standard passive cooling solution for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 29mm height. All standoffs are with 2.7mm bore hole. |
| 050853 | conga-HPC/cTLH-CSP-HP-T | Standard passive cooling solution for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 29mm height. All standoffs are with M2.5mm thread. |
| 050854 | conga-HPC/cTLH-HSP-HP-B | Standard heat spreader for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 13mm height. All standoffs are with 2.7mm bore hole. |
| 050855 | conga-HPC/cTLH-HSP-HP-T | Standard heat spreader solution for high performance COM-HPC module conga-HPC/cTLH with integrated heat pipe, 13mm height. All standoffs are with M2.5mm thread. |
| 065600 | conga-HPC/EVAL-Client | Evaluation Carrier Board for COM-HPC Client type Modules. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/cTLH
2024/10/30
Manual
User’s Guide for conga-HPC/cTLH
2024/06/21
