conga-HPC/cTLU

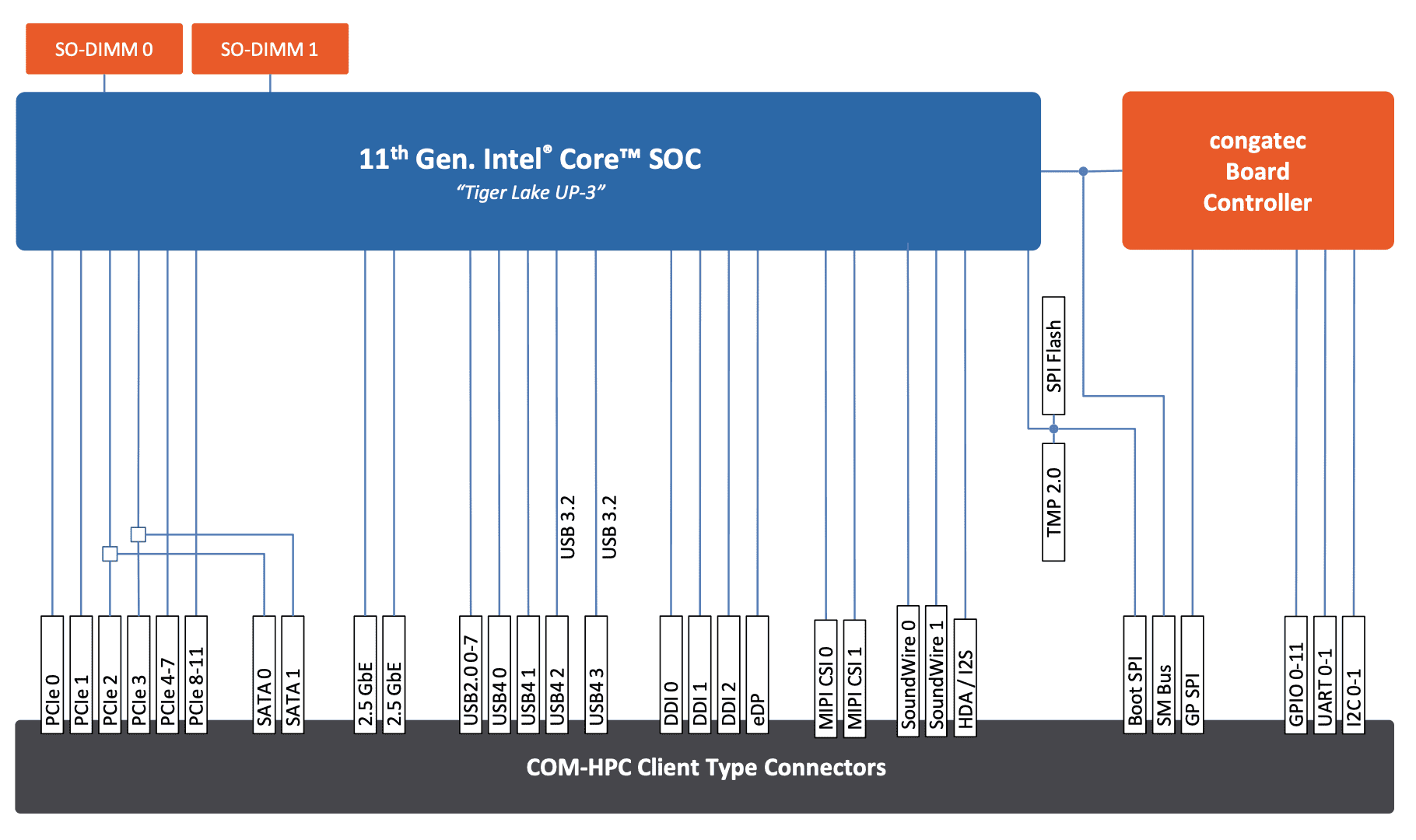

COM-HPC Client Size A high performance module based on 11th Gen Intel® Core™ processor series (code name “Tiger Lake”)
- COM HPC Client Size A
- PCI Express Gen 4
- Embedded/Industrial use condition
- Extended temperature options available
- Integrated high performance Xe (Gen 12) graphics with 96 EU
- AI/DL Instruction Sets including VNNI
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍
产品规格
| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Core™ i7-1185G7E (4 x 1.8 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1145G7E (4 x 1.5 GHz, 8 MB cache, 15W)
Intel® Core™ i3-1115G4E (2 x 2.2 GHz, 6 MB cache, 15W)
Intel® Celeron® 6305E (2 x 1.8 GHz, 4MB cache, 15W)
Intel® Core™ i7-1185GRE (4 x 1.8 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1145GRE (4 x 1.5 GHz, 8 MB cache, 15W)
Intel® Core™ i3-1115GRE (2 x 2.2 GHz, 6 MB cache, 15W)
|
| DRAM | Up to 2 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (64 GByte total) with 3200 MT/s |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|
| I/O Interfaces |
4 x PCIe Gen4
8 x PCIe Gen3
2 x USB 4.0
2 x USB 3.2
6 x SATA III (6Gb/s)
2 x UART
12 x GPIOs
8 x MIPI-CSI
8 x USB 2.0
SPI
|
| Graphics | Integrated Xe (Gen 12) graphics engine with up to 96 EU (Execution Units) | Supporting 4 independent display units (4x 4k/2x 8K) | Enhanced media (AV1/12b) with up to 2 Vdbox | Next Gen IPU6 with DPHY2.1 | DP 1.4 |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 5.0 with battery support
|
| Operating Systems |
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Microsoft® Windows IoT 10 Core
Linux
Android
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Commercial: Operating: 0 to +60°C | Storage: -20 to +80°C
Industrial: Operating: -40 to +85°C | Storage: -40 to +85°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces |
3x DDI/DP++ | 1x eDP
|
| Size | 95 x 120 mm |
订购资讯
| P/N | Product name | Description |
| 050600 | conga-HPC/cTLU-i7-1185G7E | COM-HPC Size A module based on Intel® Core™ i7-1185G7E 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Embedded temperature range 0°C to 60°C. |
| 050601 | conga-HPC/cTLU-i5-1145G7E | COM-HPC Size A module based on Intel® Core™ i5-1145G7E 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Embedded temperature range 0°C to 60°C. |
| 050602 | conga-HPC/cTLU-i3-1115G4E | COM-HPC Size A module based on Intel® Core™ i3-1115G4E 2-core processor with 2.2GHz up to 3.9GHz turbo boost, 6MB cache, Intel® Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Embedded temperature range 0°C to 60°C. |
| 050603 | conga-HPC/cTLU-6305E | COM-HPC Size A module based on Intel® Celeron® 6305E 2-core processor with 1.8GHz, 4MB cache, Intel® Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger LakeUP3). Embedded temperature range 0°C to 60°C. |
| 050610 | conga-HPC/cTLU-i7-1185GRE | COM-HPC Size A module based on Intel® Core™ i7-1185GRE 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Industrial temperature range -40°C to 85°C. |
| 050611 | conga-HPC/cTLU-i5-1145GRE | COM-HPC Size A module based on Intel® Core™ i5-1145GRE 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Industrial temperature range -40°C to 85°C. |
| 050612 | conga-HPC/cTLU-i3-1115GRE | COM-HPC Size A module based on Intel® Core™ i3-1115GRE 2-core processor with 2.2GHz up to 3.9GHz turbo boost, 6MB cache, Intel® Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake-UP3). Industrial temperature range -40°C to 85°C |
相关配件
| P/N | Product name | Description |
| 050658 | conga-HPC/cTLU-CSA-HP-B | Standard active cooling solution for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 050659 | conga-HPC/cTLU-CSA-HP-T | Standard active cooling solution for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 29mm height and integrated 12V fan. All standoffs are M2.5mm thread. |
| 050660 | conga-HPC/cTLU-CSP-HP-B | Standard passive cooling solution for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 28mm height. All standoffs are with 2.7mm bore hole. |
| 050661 | conga-HPC/cTLU-CSP-HP-T | Standard passive cooling solution for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 28mm height. All standoffs are with M2.5mm thread. |
| 050662 | conga-HPC/cTLU-HSP-HP-B | Standard heatspreader for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 13mm height. All standoffs are with 2.7mm bore hole. |
| 050663 | conga-HPC/cTLU-HSP-HP-T | Standard heatspreader for high performance COM-HPC module conga-HPC/cTLU with integrated heatpipe, 13mm height. All standoffs are with M2.5mm thread. |
| 065600 | conga-HPC/EVAL-Client | Evaluation Carrier Board for COM-HPC Client type Modules. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/cTLU
2024/10/30
Manual
User’s Guide for conga-HPC/cTLU
2024/10/30
