产品介绍
产品规格
| Item | Description |
| Formfactor | Extended ATX |
| Board Variant |
Evaluation Carrier Board for COM-HPC Client Type Modules (Sizes A, B, C)
|
| Internal Connectors and Features |
2x PCIe Gen4 x16
3x PCIe Gen4 x4
BMC PCIe x1
2x USB4
M.2 Key B 2242 (USB2, 2x PCIe)
M.2 Key E 2230 (USB2, 2x PCIe)
two-lane KR connector to connect Mezzanine Cards for LAN options
eDP
DMIC header
2x MIPI CSI
2x SATA
SATA Power
Disk Drive Power
4x COM (2x via SIO)
GPSPI header
I2C header
SMB header
GPIO header
Feature header
System Fan
CPU Fan
|
| Item | Description |
| External Connectors |
Dual USB 2
3x DP++
2x 10GbE RJ45
2x USB 4
|
| Postcode |
4x 7-Segment Postcode LEDs connected to PD I2C
|
| Power Input |
1x ATX standard power input 24pin
1x ATX 12V power input 4pin
1x AT power input DC In 8-20Vmax (via 4x banana jacks)
|
| Operating Temperature |
Operating Temp.: 0°C … +60°C
Storage Temp.: -20°C … +70°C
|
| Humidity |
Operating Hum.: 10% … 90% r. H. non cond.
Storage Hum.: 5% … 95% r. H. non cond.
|
| Size |

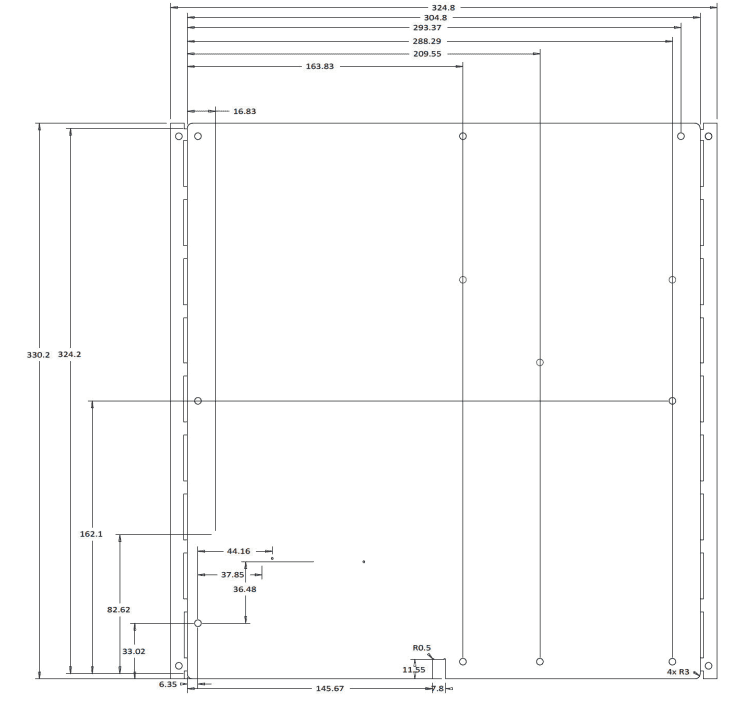

304.8 x 330.2 mm (approx. 12 x 13 inches)
|
订购资讯
| P/N | Product name |
| 065600 | conga-HPC/EVAL-Client |
相关配件
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
conga-HPC/EVAL-Client
2024/10/30
Manual
User’s Guide for conga-HPC/EVAL-Client
2024/10/30
