conga-HPC/EVAL-Server

Evaluation Carrier Board for COM-HPC Server Type Modules

Evaluation Carrier Board for COM HPC Server Type Modules
Routing of the entire signals provided by COM HPC Module Base Specification R1.0 to standard interface connectors

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

恩比克科技(东莞)有限责任公司

联络资讯
广东省东莞市寮步镇仁居路1号松湖智谷研发中心4栋 901室
+86 769-23078291
info@enbik.tw

联系我们

若您有任何产品及解决方案的需求，或是各种技术问题，欢迎直接填写e-mail到我们的客服信箱，我们将尽快为您回覆，感谢您的支持与爱护。

info@enbik.tw

info@enbik.tw

Item	Description
Formfactor	Extended ATX
Board Type	Evaluation Carrier Board for COM-HPC Server Type Modules (Sizes D and E)

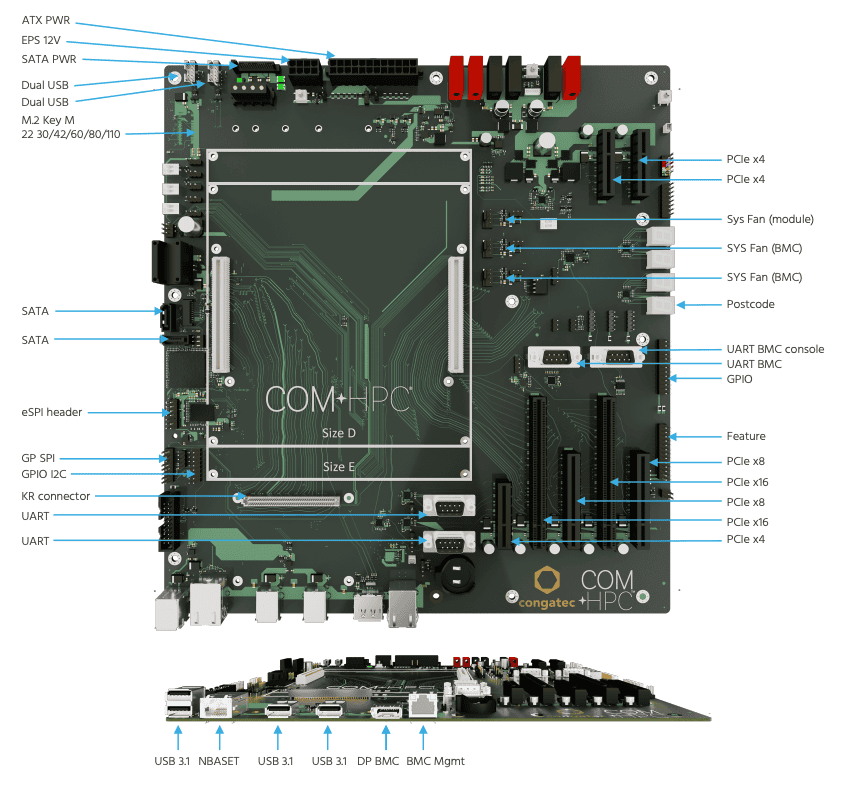

Internal Connectors and Features	2x PCIe x16 connector 2x PCIe x8 connector 3x PCIe x4 connector 2x dual USB 2.0 header M.2 Key M 2230 / 2242 / 2260 / 2280 / 22110 8x Ethernet KR interfaces connector 2x SATA SATA Power 2x UART DB9 from module 1x UART DB9 from BMC 1x UART DB9 for BMC console GP SPI header I2C header SMB header eSPI header SPI socket GPIO header Feature header 3x Fan

Item	Description
External Connectors	4x USB3.2 Gen 1 Type A DP through BMC 10GbE RJ45 through module GbE RJ45 through ASPEED AST2600
Postcode	4x 7-Segment Postcode LEDs connected to PD I2C
Power Input	ATX connector, 12V/GND banana jacks
Operating Temperature	Operating Temp.: -40°C … +85°C Storage Temp.: -40°C … +85°C
Humidity	Operating Hum.: 10% … 90% r. H. non cond. Storage Hum.: 5% … 95% r. H. non cond.
Size	304.8 x 330.2 mm (approx. 12 x 13 inches)

P/N	Product name	Description
065500	conga-HPC/EVAL-Server	Evaluation Carrier Board for COM-HPC Server type modules
065505	conga-HPC/LEK-C827-IM 4SFP28	COM-HPC Mezzanine card with Intel C827-IM, 4xSFP28
065506	conga-HPC/LEK-XL827-AM 8SFP+	COM-HPC Mezzanine card with 2x Intel XL827-AM, 8xSFP+
065507	conga-HPC/LEK-QSFP	COM-HPC Mezzanine card with direct connection: 4x SFP28 and 1x QSFP adapter

Item	Description
Formfactor	Extended ATX
Board Type	Evaluation Carrier Board for COM-HPC Server Type Modules (Sizes D and E)
Internal Connectors and Features	2x PCIe x16 connector 2x PCIe x8 connector 3x PCIe x4 connector 2x dual USB 2.0 header M.2 Key M 2230 / 2242 / 2260 / 2280 / 22110 8x Ethernet KR interfaces connector 2x SATA SATA Power 2x UART DB9 from module 1x UART DB9 from BMC 1x UART DB9 for BMC console GP SPI header I2C header SMB header eSPI header SPI socket GPIO header Feature header 3x Fan

Item	Description
External Connectors	4x USB3.2 Gen 1 Type A DP through BMC 10GbE RJ45 through module GbE RJ45 through ASPEED AST2600
Postcode	4x 7-Segment Postcode LEDs connected to PD I2C
Power Input	ATX connector, 12V/GND banana jacks
Operating Temperature	Operating Temp.: -40°C … +85°C Storage Temp.: -40°C … +85°C
Humidity	Operating Hum.: 10% … 90% r. H. non cond. Storage Hum.: 5% … 95% r. H. non cond.
Size	304.8 x 330.2 mm (approx. 12 x 13 inches)
