conga-HPC/sBLS

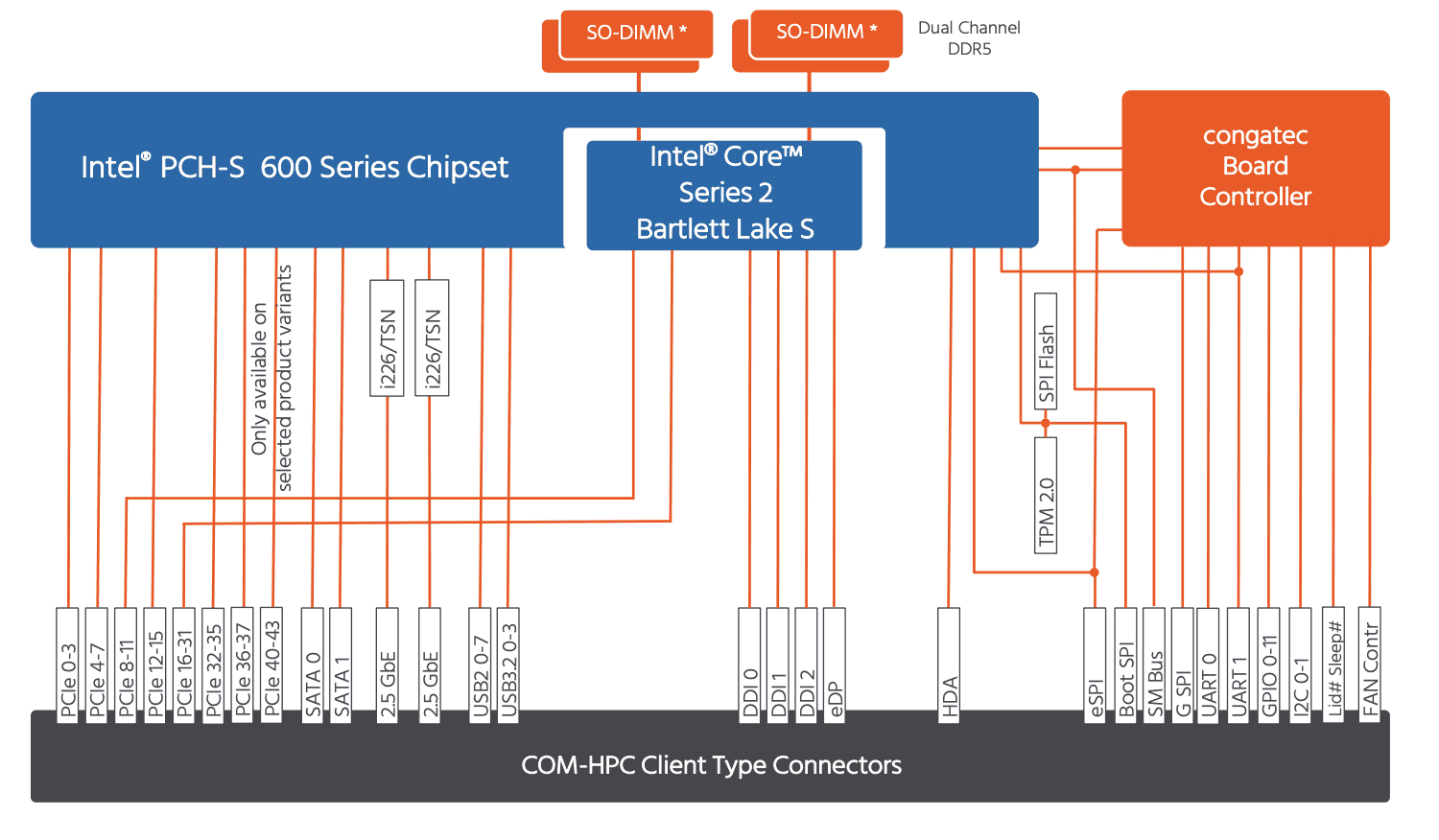

COM-HPC Client Size C high performance module based on Intel® Core™ processor (series 2) (formerly codenamed: Bartlett Lake S)
- Intel® hybrid design combines Performance-cores with Efficient–cores
- Up to Intel® UHD Graphics 770 driven by Xe Architecture
- PCI Express Gen 4 and 5 | USB 3.2 Gen 2×2
- AI Acceleration based on Intel® Deep Learning Boost (VNNI)
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍
产品规格
| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Core™ 3 201E (4 P-cores 3.6 GHz up to 4.8 GHz, 12MB cache)
Intel® Core™ 5 211E (6 P-cores 2.7 GHz up to 4.9 GHz, 4 E-cores 2.0 GHz up to 3.7 GHz, 20MB cache)
Intel® Core™ 7 251E (8 P-cores 2.1 GHz up to 5.6 GHz, 16 E-cores 1.6 GHz up to 4.4 GHz, 36MB cache)
|
| DRAM | 4 SO-DIMM sockets for DDR5 memory modules up to 32 GByte each | max. 128 GByte RAM system capacity |up to 4.000 MT/s | ECC Support on selected product variants |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|
| I/O Interfaces |
1×16 PCIe Gen 5 (PEG port)
3×4 PCIe Gen 4
up to 3×4 PCIe Gen 3
1×2 PCIe Gen3
4 x USB 3.2 Gen2x2
8 x USB 2.0
2 x SATA
2 x UART
12 x GPIOs
|
| Graphics | Up to Intel® UHD Graphics 770 driven by Xe Architecture | up to 32 EU |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 5.0a with battery support
|
| Operating Systems |
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Operating: 0°C to 60°C
Storage: -20°C to 80°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces | 3x DDI | eDP |
| Size | 120 x 160 mm |
订购资讯
| P/N | Product name | Description |
| 049820 | conga-HPC/cBLS-7-251E | COM-HPC Client module based on Intel® Core™ 7-251E LGA 1700 processor with 8 P-cores 2.1GHz up to 5.6GHz Turbo and 16 E-cores 1.6GHz up to 4.4 GHz Turbo | 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Bartlett Lake S |
| 049821 | conga-HPC/cBLS-5-211E | COM-HPC Client module based on Intel® Core™ 5-211E LGA 1700 processor with 6 Pcores 2.7GHz up to 4.9GHz Turbo and 4 E-cores 2.0GHz up to 3.7GHz Turbo | 20MB Intel® Smart Cache | Intel® UHD Graphics 770 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Bartlett Lake S |
| 049822 | conga-HPC/cBLS-3-201E | COM-HPC Client module based on Intel® Core™ 3-201E LGA 1700 processor with 4 P-cores 3.6GHz up to 4.8GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Bartlett Lake S |
相关配件
| P/N | Product name | Description |
| 049650 | conga-HPC/cRLS-CSA-HP-B | Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm overall height and two integrated 12V fans. All standoffs are with 2.7mm bore hole. |
| 049651 | conga-HPC/cRLS-CSA-HP-T | Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm height and two integrated 12V fans. All standoffs are M2.5mm threaded. |
| 049652 | conga-HPC/cRLS-HSP-HP-B | Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole. |
| 049653 | conga-HPC/cRLS-HSP-HP-T | Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded. |
| 049654 | conga-HPC/cRLS-HPA | Standard heatpipe adapter for COM-HPC module conga-HPC/cRLS. |
| 065600 | conga-HPC/EVAL-Client | Evaluation Carrier Board for COM-HPC Client type Modules. |
| 065620 | conga-HPC/uATX-Client | COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size A,B and C. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/cBLS
2025/02/03
