conga-HPC/sILL
COM-HPC Server Size D module based on Intel® Xeon® D processor series (code name “Ice Lake”)
- Industrial Use Condition with extended Temperature options
- 32 PCIe Express lanes
- AI Capabilities with Intel® DL boost
- Real Time Capable Platform
- Supporting up to 256 GB DDR4 2933MT/s Memory
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

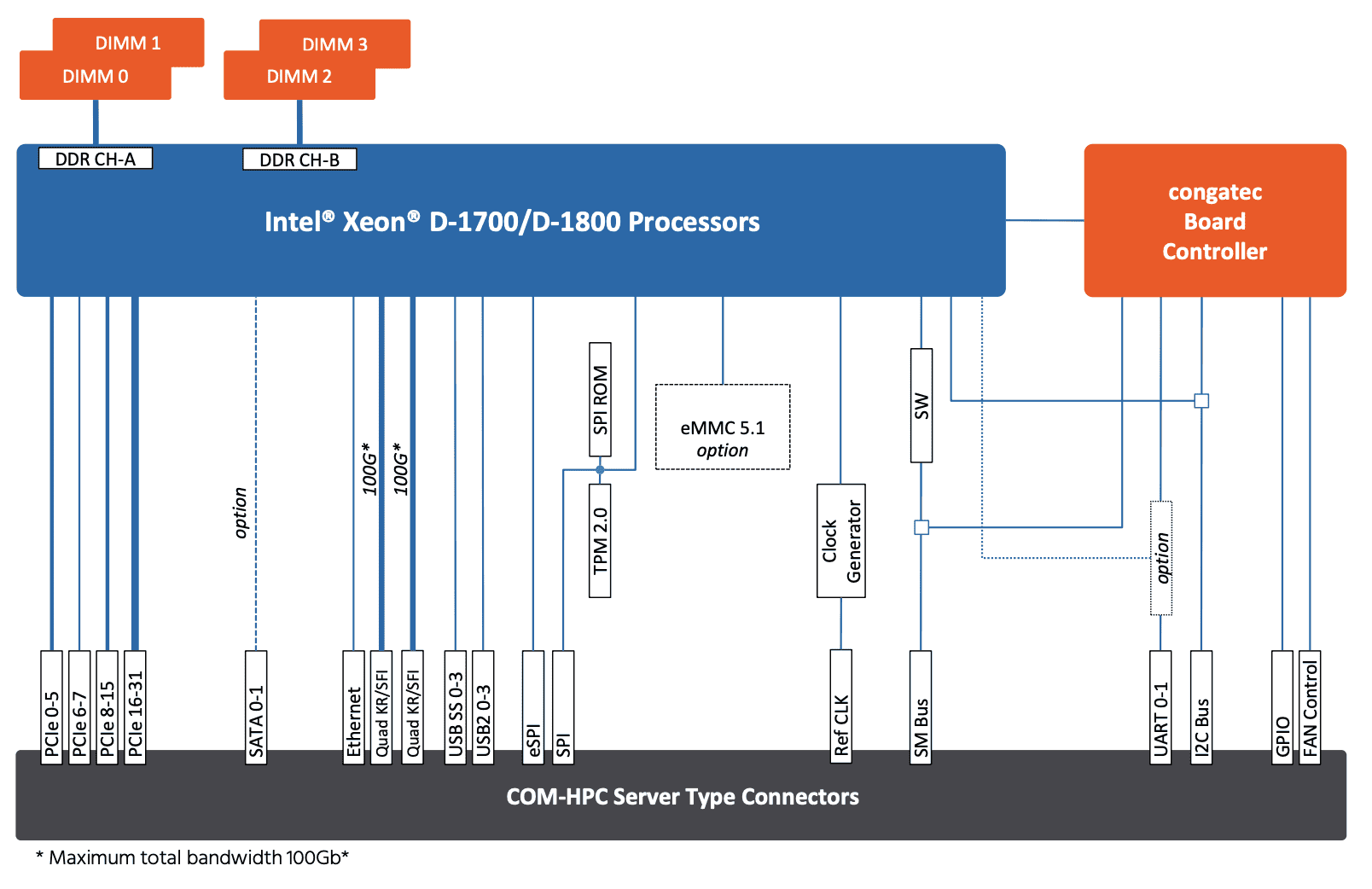

产品规格
| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Xeon® D-1848TER (10 x 2.0 GHz, 15 MB cache, 100G Eth, 57W)
Intel® Xeon® D-1712TR (4 x 2.0 GHz, 10 MB cache, 50G Eth, 39W)
Intel® Xeon® D-1735TR (8 x 2.2 GHz, 15 MB cache, 50G Eth, 59W)
Intel® Xeon® D-1715TER (4 x 2.4 GHz, 10 MB cache, 50G Eth, 50W)
Intel® Xeon® D-1732TE (8 x 1.9 GHz, 15 MB cache, 50G Eth, 52W)
Intel® Xeon® D-1746TER (10 x 2.0 GHz, 15 MB cache, 100G Eth, 67W)
|
| DRAM | 4x DIMM sockets for DDR4 memory modules | Max. capacity = 256GB |
| Ethernet |
1 x 2.5GbE TSN Ethernet
2x 40G / 4x 25G / 8x 10G/2.5G/1G/100M lanes | Maximum total bandwidth 100Gb (depending on CPU)
|
| I/O Interfaces |
16 x PCIe Gen4
16 x PCIe Gen3
4 x USB 3.0
4 x USB 2.0
2 x SATA III (6Gb/s)
2 x UART
12 x GPIOs
2 x SM-Bus
2 x I²C bus
|
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
64Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 5.0 with battery support
|
| Operating Systems |
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Microsoft® Windows IoT 10 Core
Linux
Android
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +85°C
Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C (depending on CPU) |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 160 x 160 mm |
订购资讯
| P/N | Product name | Description |
| 050400 | conga-HPC/sILL-D1746TER | COM-HPC Size D module based on Intel® Xeon® D1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C |
| 050401 | conga-HPC/sILL-D1732TE | COM-HPC Size D module based on Intel® Xeon® D1732TE 8-core processor with 1.9 GHz, 15MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. |
| 050402 | conga-HPC/sILL-D1715TER | COM-HPC Size D module based on Intel® Xeon® D1715TER 4-core processor with 2.4 GHz, 10MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Extended temperature range from -40°C to 80°C. |
| 050410 | conga-HPC/sILL-D1735TR | COM-HPC Size D module based on Intel® Xeon® D1735TR 8-core processor with 2.2 GHz, 15MB cache and dual channel DDR4 up to 2933 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. |
| 050411 | conga-HPC/sILL-D1712TR | COM-HPC Size D module based on Intel® Xeon® D1712TR 4-core processor with 2.0 GHz, 10MB cache and dual channel DDR4 up to 2400 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. |
| 050412 | conga-HPC/sILL-D1848TER | COM-HPC Size D module based on Intel® Xeon® D-1848TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D Refresh LCC). Industrial temperature range from -40°C to 85°C. |
相关配件
| P/N | Product name | Description |
| 050450 | conga-HPC/sILL-CSA-HP | Standard active cooling solution for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes, 35.2mm overall cooling height and integrated 12V fan. |
| 050451 | conga-HPC/sILL-CSP-HP | Standard passive cooling solution for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes, 18.2mm overall cooling height. |
| 050452 | conga-HPC/sILL-HSP-HP-B | Standard heatspreader for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes and 11mm overall cooling height. Through hole mounting with bore hole standoffs Ø2.7mm. |
| 050453 | conga-HPC/sILL-HSP-HP-T | Standard heatspreader for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes and 11mm overall cooling height. Threaded mounting with threaded standoffs M2.5. |
| 050454 | conga-HPC/sILL-HPA | Heat pipe Adapter for COM-HPC Server modules conga-HPC/sILL. Suitable for standard 8 mm heat pipes to optimize heat distribution. |
| 050455 | conga-HPC/sILL-Retention Frame | Retention frame for conga-HPC/sILL |
| 065500 | conga-HPC/EVAL-Server | conga-HPC/EVAL-Server |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/sILL
2024/10/30
Manual
User’s Guide for conga-HPC/sILL
2024/12/04
