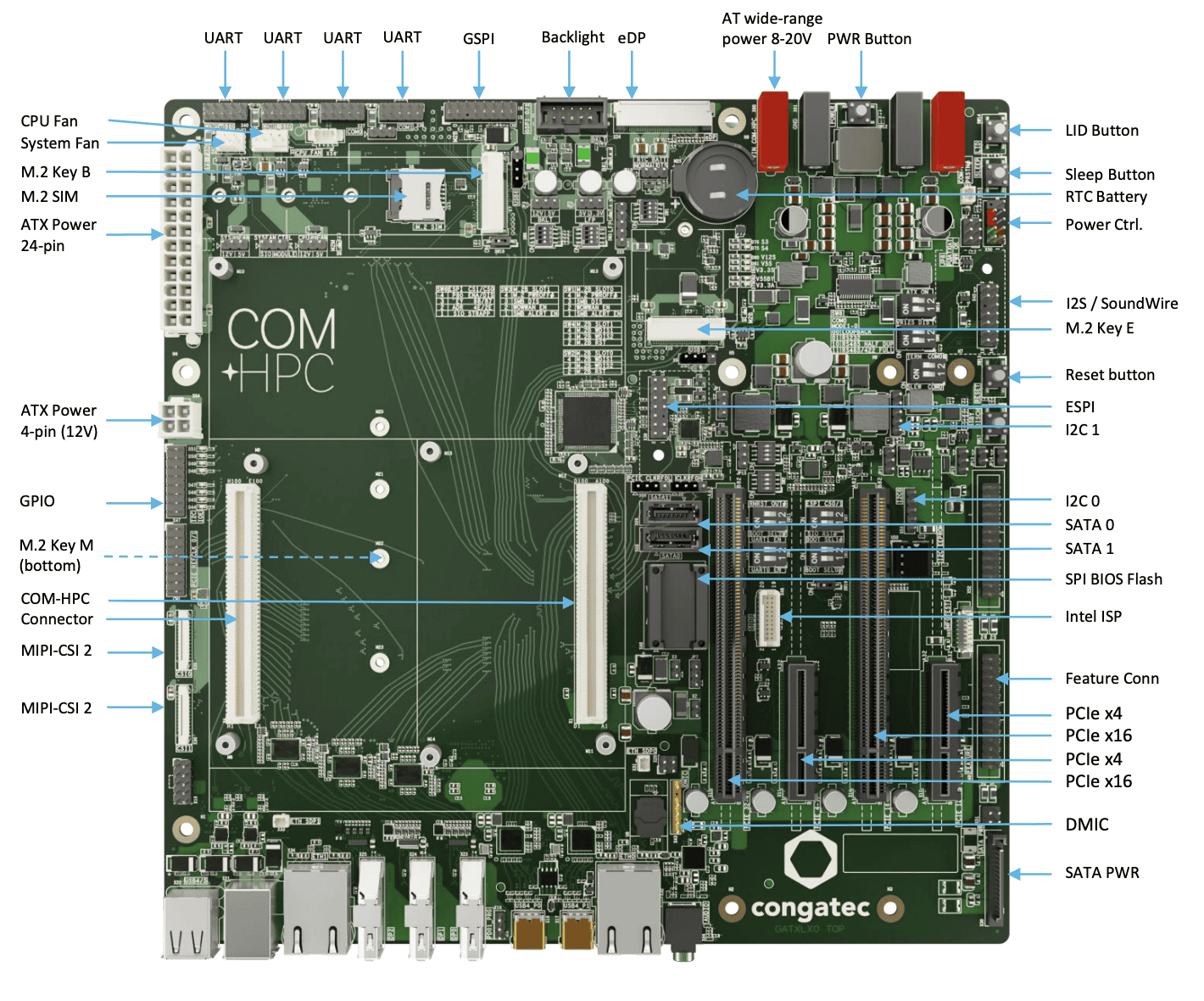

conga-HPC/uATX-Client

2x PCIe Gen4 x16 | 2x PCIe Gen4 x4 | 2x SATA III | 1x 2.5” Disk Drive Power connector
1x M.2 Key B 2242/3042/2260/2280 (USB2, PCIe x2, SIM) | 1x M.2 Key E 2230/3030 (USB2, PCIe x2)
1x M.2 Key M 2242/2260/2280/22110 (PCIe x4, bottom side)
1x eDP (optional for LVDS)
1x DMIC header | 1x I2S/SoundWire header
2x MIPI CSI2/3 4-lane camera FFC | 2x UART native by module | 2x UART by Super IO
1x General Purpose SPI | 2x I2C header | 1x SMB header | 12x GPIO by header
1x Feature header with system control signals | 1x System Fan | 1x CPU Fan | 1x RTC CMOS battery holder
1x Power button | 1x Reset button | 1x LID button | 1x Sleep button
1x SPI boot flash socket | 1x Intel ISP header |
1x ATX power connector 24-pin | 1x AT banana power jacks 8-20V

1x Dual USB 2 | 2x Dual USB 3.2 up to 10Gbps | 2x USB4 with Thunderbolt Retimer (1x with Power Delivery) | 3x DP++ with 8.1 Gbps Re-driver | 2x 10GbE RJ45 with IEEE1588 support
1x Audio Jack 4-pin | on-carrier HDA codec

Microsoft^® Windows 11 | Microsoft^® Windows 10 | Microsoft^® Windows 10 IoT Enterprise | Linux | Yocto

Commercial: Operating Temperature: 0 to +60°C

                         Storage Temperature:  -20 to +80°C

Operating: 10 to 85% r. H. non cond. / Storage: 5 to 85% r. H. non cond.

244 x 244 mm
