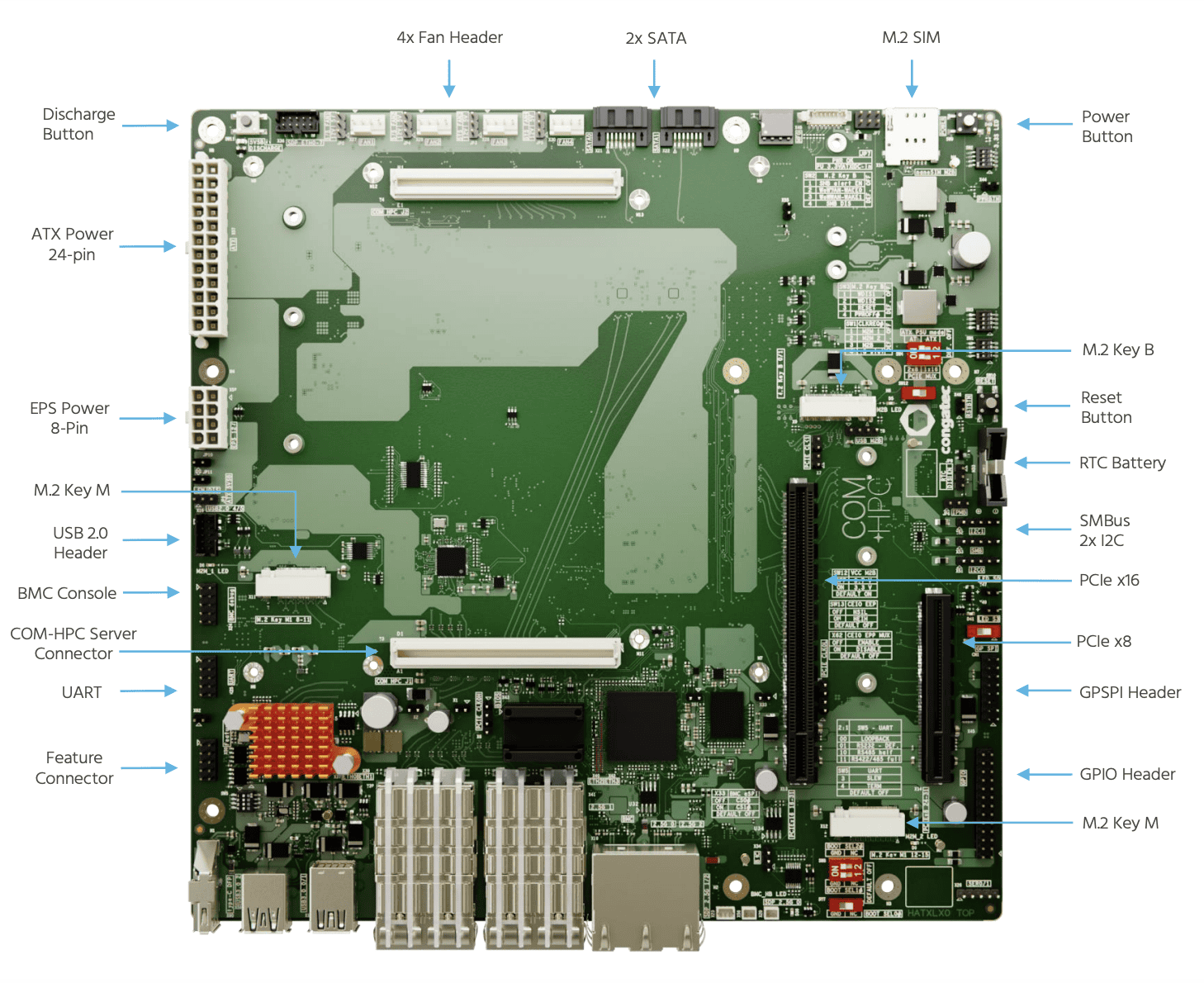

conga-HPC/uATX-Server

1x PCIe Gen4 x16
1x PCIe Gen4 x8 (capable of housing x16 cards)
1x M.2 Key B 2242/3042/3052/2280 (USB3.1 Gen1, PCIe, nano SIM) 2x M.2 Key M 2242/2280/22110 (PCIe x4 each)
1x RS232/RS485 (BMC, header)
2x SATA III
1x General Purpose I2C header | 12x GPIO header
4x 4-pin Fan connectors
1x RTC CMOS battery holder
1x SPI boot flash socket
1x Power button + header | 1x Reset button + header
1x ATX power connector 24-pin
1x EPS CPU power connector 8-pin
1x Power LED + header

4x SFP28/SFP+ cages for various transceiver technologies 1x 1GbE IPMI (BMC)
3x 2.5GbE RJ45 with IEEE1588 support
1x DP
3x USB 3.1 Gen1  (Type A)
1x USB 3.1 Gen1 (Type C)

Commercial: Operating Temperature: 0 to +60°C

                         Storage Temperature:  -20 to +70°C
Industrial:     Operating Temperature: -40 to 85°C

                         Storage Temperature: -40 to +85°C

Operating Hum.: 10% … 90% r. H. non cond.

Storage Hum.: 5% … 95% r. H. non cond.

244 x 244 mm
