conga-MA5
COM Express® Mini Type 10 module based on 5th Generation Intel® Atom™ processors
- 5th Gen. Intel® Atom™ processor family
- COM Express Mini Type 10 module
- Intel 9th generation (Gen 9) LP graphics
- Up to 4k resolution (4096×2160@60Hz)
- 4K Codec Decode & Encode for HEVC, H.264, VP8
- 产品类别： COM Type 10, COM模块
产品介绍
产品规格
订购资讯
相关配件
资讯下载

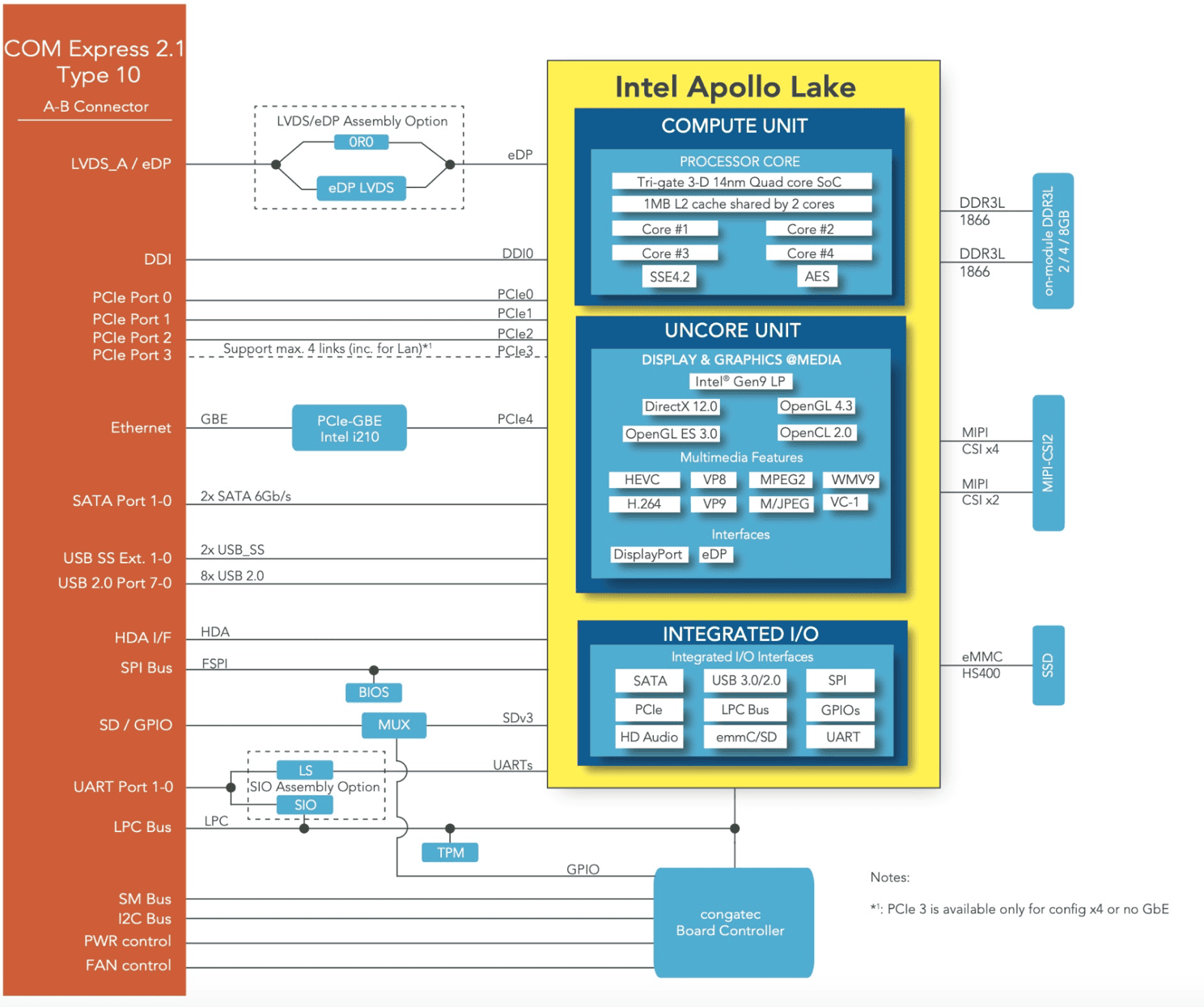

产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Mini |
| CPU | Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W)
Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W) Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W) Intel® Celeron® N3350 (2 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Pentium® N4200 (4 x 1.1 GHz, 2 MB L2 cache, 6W) |
| DRAM | Dual channel onboard DDR3L memory support for up to 8 GByte at 1866MT/s |
| Ethernet | Intel® I210 (Industrial) / I211 (Commercial) Gigabit Ethernet Controller |
| I/O Interfaces | 4 x PCIe Gen2
2 x USB 3.0 6 x USB 2.0 2 x SATA3 SDIO LPC bus SM-Bus I²C bus 2 x UART |
| Graphics | Intel® HD Graphics Gen 9 | PAVP 2.0 | H.265/HEVC | VP9 | OpenCL 2.0 | OpenGL 4.3 | OpenGL ES 3.0 | DirectX12 | HDCP1.4 |
| Item | Description |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control |
| embedded BIOS Features | AMI AptioV® UEFI 2.x firmware
8 MByte serial SPI firmware flash OEM Logo OEM CMOS Defaults LCD Control Display Auto Detection Backlight Control Flash Update |
| Security | Infineon’s Trusted Platform Module (TPM 2.0/1.2) SLB 9665/9660 option |
| Power Management | ACPI 5 .0 compliant, Smart Battery Management |
| Operating Systems | Microsoft® Windows 10 Enterprise
Microsoft® Windows IoT Core Linux |
| Temperature | Commercial : Operating: 0 to +60°C Storage: -20 to +80°C Industrial : Operating: -40 to +85°C Storage: -45 to +85°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 55 x 84 mm (2.17″ x 3.31″) |
订购资讯
| P/N | Product name | Description |
| 048000 | MA5/E3950-8G eMMC32 | COM Express Mini Type10 module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash. |
| 048001 | MA5/E3940-4G eMMC16 | COM Express Mini Type10 module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 048002 | MA5/E3930-2G eMMC16 | COM Express Mini Type10 module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 048010 | MA5/i-E3950-8G eMMC16 | COM Express Mini Type10 module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 048011 | MA5/i-E3940-4G eMMC16 | COM Express Mini Type10 module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 048012 | MA5/i-E3930-4G eMMC16 | COM Express Mini Type10 module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 048020 | MA5/N4200-8G eMMC32 | COM Express Mini Type10 module with Intel® Pentium® N4200 quad core processor with 1.5GHz core frequency up to 2.50GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash. |
| 048022 | MA5/N3350-4G eMMC16 | COM Express Mini Type10 module with Intel® Celeron™ N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
相关配件
|
P/N |
Product name |
Description |
|
048050 |
MA5/i-CSP-T |
Passive cooling solution for COM Express Mini Type10 module conga-MA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
|
048051 |
MA5/i-CSP-B |
Passive cooling solution for COM Express Mini Type10 module conga-MA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
|
048052 |
MA5/i-HSP-T |
Standard heatspreader for COM Express Mini Type10 module conga-MA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
|
048053 |
MA5/i-HSP-B |
Standard heatspreader for COM Express Mini Type10 module conga-MA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
|
048054 |
MA5/CSP-T |
Passive cooling solution for COM Express Mini Type10 module conga-MA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
|
048055 |
MA5/CSP-B |
Passive cooling solution for COM Express Mini Type10 module conga-MA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
|
048056 |
MA5/HSP-T |
Standard heatspreader for COM Express Mini Type10 module conga-MA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
|
048057 |
MA5/HSP-B |
Standard heatspreader for COM Express Mini Type10 module conga-MA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
|
065400 |
MEVAL |
Evaluation Carrier Board for COM Express Mini Type 10 modules. |
|
011115 |
LDVI/EPI |
LVDS to DVI converter board for digital flat panels with onboard EEPROM |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-MA5
2021/04/14
Manual
User’s Guide for conga-MA5
2024/01/19
Manual
Post Code List
2015/06/15
