conga-QA5
Highest performance Qseven module with 5th Generation Intel® Atom™ / Celeron® / Pentium® processors
- Intel® Atom™ Quad Core on Qseven
- Intel 9th generation (Gen 9) LP graphics
- Up to 4k resolution (4096×2160@60Hz)
- 4K Codec Decode & Encode for HEVC, H.264, VP8
- Fast I/Os SATA3, USB 3.0 and PCIe 2.0
- 产品类别： COM Qseven, COM模块
产品介绍
产品规格
订购资讯
相关配件
资讯下载

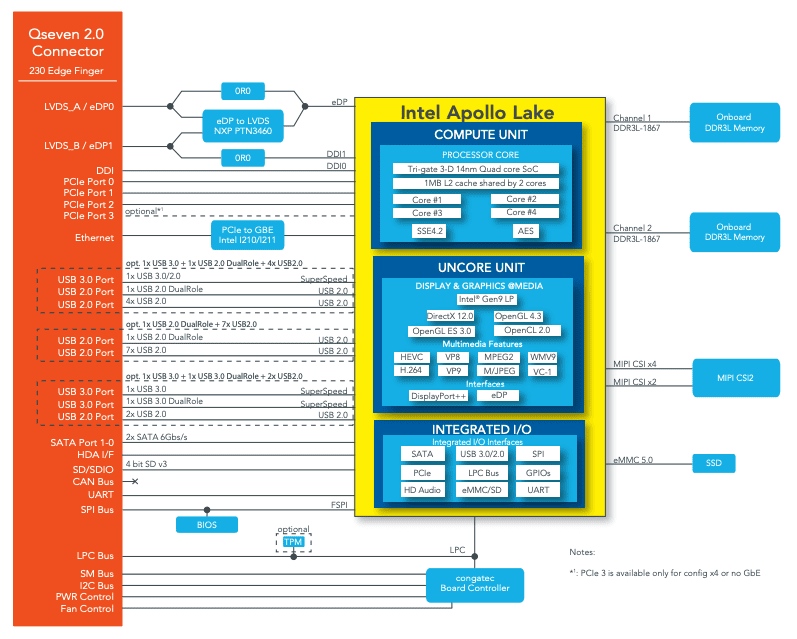

产品介绍
产品规格
| Item | Description |
| Formfactor | Qseven |
| CPU |
Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W)
Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W)
Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W)
Intel® Celeron® N3350 (2 x 1.1 GHz, 2 MB L2 cache, 6W)
Intel® Celeron® J3455 (4 x 1.5 GHz, 2 MB L2 cache, 10W)
Intel® Pentium® N4200 (4 x 1.1 GHz, 2 MB L2 cache, 6W)
|
| DRAM | Dual Channel | up to 8GB onboard DDR3L with 1867 MT/s |
| Ethernet | Intel® I210 (Industrial) / I211 (Commercial) Gigabit Ethernet Controller |
| I/O Interfaces |
3 x PCIe Gen2
1 x USB 3.0
5 x USB 2.0
2 x SATA3
SDv3
SM-Bus
I²C bus
UART
|
| Graphics | Intel® Gen 9 LP Graphics supporting DirectX 12 | OpenGL 4.3 | OpenCL 2.0 | OpenGL ES 3.0 | HW accelerated video decoding HEVC/H.264/MVC/ MPEG2/VP9/VC-1/WMV9/MJPEG and encoding HEVC/H.264/MVC/VP8/MJPEG | Content protection using PAVP 2.0 and HDCP 1.4/2.2 |
| Item | Description |
| congatec Board Controller | Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control |
| embedded BIOS Features |
AMI Aptio® 2.X (UEFI) firmware
8 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Power Management | ACPI 5 .0 compliant, Smart Battery Management |
| Operating Systems |
Microsoft® Windows® 10
Linux
Yocto
Microsoft® Windows IoT Core
|
| Temperature | Extended Commercial : Operating: 0 to +60°C Storage: -20 to +70°CIndustrial: Operating: -40 to +85°C Storage: -40 to +85°C |
| Humidity |
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
|
| Video Interfaces |
DP++ up to 4096×2160@60Hz
|
| Size | 70 x 70 mm (2,75″ x 2,75″) |
订购资讯
| P/N | Product name | Description |
| 015500 | QA5/E3950-8G eMMC32 | Qseven module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash. |
| 015501 | QA5/E3940-4G eMMC16 | Qseven module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 015502 | QA5/E3930-2G eMMC16 | Qseven module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 015503 | QA5/E3950-4G eMMC16 | Qseven module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 015510 | QA5/i-E3950-8G eMMC32 | Qseven module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015511 | QA5/i-E3940-4G eMMC16 | Qseven module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015512 | QA5/i-E3930-2G eMMC16 | Qseven module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015513 | QA5/i-E3950-8G eMMC32 eDP | Qseven module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash.
Industrial grade temperature range from -40°C to 85°C. W ith eDP display output instead of LVDS. |
| 015522 | QA5/N3350-4G eMMC16 | Qseven module with Intel® Celeron® N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
| 015523 | QA5/N4200-8G eMMC32 | Qseven module with Intel® Pentium® N4200 quad core processor with 1.5GHz core frequency up to 2.50GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash. |
| 015524 | QA5/J3455-4G eMMC16 | Qseven module with Intel® Celeron® J3455 quad core processor with 1.5GHz core frequency up to 2.30GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. |
相关配件
| P/N | Product name | Description |
| 015530 | QA5/i-CSP-T | Passive cooling solution for Qseven module conga-QA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
| 015531 | QA5/i-CSP-B | Passive cooling solution for Qseven module conga-QA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
| 015532 | QA5/i-HSP-T | Standard heatspreader for Qseven module conga-QA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
| 015533 | QA5/i-HSP-B | Standard heatspreader for Qseven module conga-QA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
| 015534 | QA5/CSP-T | Passive cooling solution for Qseven module conga-QA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
| 015535 | QA5/CSP-B | Passive cooling solution for Qseven module conga-QA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
| 015536 | QA5/HSP-T | Standard heatspreader for Qseven module conga-QA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
| 015537 | QA5/HSP-B | Standard heatspreader for Qseven module conga-QA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
| 0007003 | conga-QEVAL 2.0 | Evaluation platform for Qseven 2.0 |
| 0077455 | conga-QKIT | Starterkit for Qseven including conga-QEVAL, conga-LDVI/EPI, conga-FPA2, Dual DVI-D ADD2 Card, ATX power supply… |
| 0025485 | conga-Qseven/SBM3 | Mobility Starter Kit |
| 014000041 | conga-MCB/Qseven Cable Kit | Complete cable kit for Qseven mini carrier board |
| 0400018 | Qseven MXM Connector Aces | Socket for Qseven Carrier Boards. 10pcs package. ACES standard type, SMT, lead free, 230 positions, 0.50mm pitch, 7.8mm height. |
| 0011115 | conga-LDVI/EPI | LVDS to DVI converter board for digital flat panels with onboard EEPROM |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-QA5
2021/03/23
Manual
User’s Guide for conga-QA5
2024/10/30
Manual
Post Code List
2015/06/15
Errata
Errata_congatec_xA5_designs
2018/08/21
