conga-QA7
Qseven module based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series
- Qseven module based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors
- High performance Intel® UHD Graphics for 10th Gen Intel® Processors
- LPDDR4x with up to 4.267 MT/s Memory Support
- Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability
- Options for Industrial Temperature Range -40°C to 85°C
- 产品类别： COM Qseven, COM模块
产品介绍
产品规格
订购资讯
相关配件
资讯下载

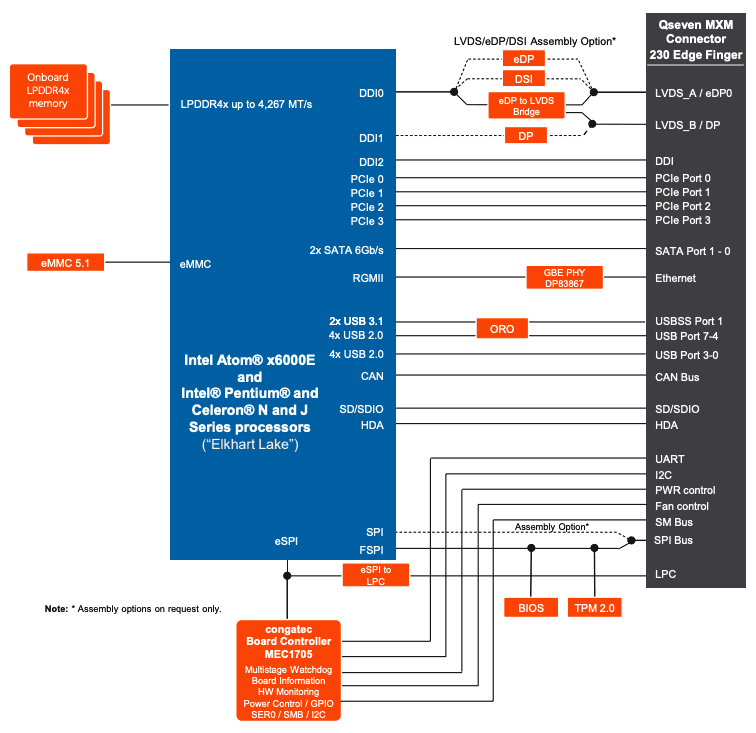

产品介绍
产品规格
| Item | Description |
| Formfactor | Qseven |
| CPU |
Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W)
Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
|
| DRAM | max. 16GB onboard LPDDR4x with up to 4.267 MT/s |
| Ethernet | Intel® GbE with TSN support | real-time trigger |
| I/O Interfaces |
up to 2x USB 3.1 Gen2
up to 1x USB3.1 Dual Role
Up to 8x USB 2.0
2 x SATA III (6Gb/s)
SDIO
4 x PCIe Gen3
LPC bus
I²C bus
SM-Bus
CAN Bus
UART
SPI
SPI (option)
|
| Mass storage | eMMC 5.1 onboard flash up to 64 Gbyte (optional up to 128 Gbyte) |
| Graphics | Intel® UHD Graphics (Gen11 LP) |
| Item | Description |
| congatec Board Controller | Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Power Management | ACPI 5 .0 compliant, Smart Battery Management |
| Operating Systems |
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor | RTS Real-Time Hypervisor |
| Temperature | Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C |
| Humidity |
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
|
| Video Interfaces |
DP++
18/24-bit Single/Dual Channel LVDS Interface,
resolutions up to 1920X1200@60Hz, VESA standard or JEIDA data mapping, Automatic Panel Detection via EDID/EPI | shared with eDP 1.3 supporting up to 4096×2160@60Hz (option) or MIPI-DSI 1.2 supporting up to 3200×2000@60Hz |
| Size | 70 x 70 mm (2,75″ x 2,75″) |
订购资讯
| P/N | Product name | Description |
| 015800 | QA7/x6425E-16G eMMC64 | Qseven module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. |
| 015801 | QA7/x6413E-8G eMMC32 | Qseven module with Intel® Atom® x6413E quad core processor with 1.5GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
| 015802 | QA7/x6211E-4G eMMC32 | Qseven module with Intel® Atom® x6211E dual core processor with 1.3GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
| 015810 | QA7/i-x6425RE-8G eMMC32 | Qseven module with Intel® Atom® x6425RE quad core processor with 1.9GHz core frequency, 1.5MB cache, 8GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015811 | QA7/i-x6414RE-4G eMMC32 | Qseven module with Intel® Atom® x6414RE quad core processor with 1.5GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015812 | QA7/i-x6212RE-4G eMMC32 | Qseven module with Intel® Atom® x6212RE dual core processor with 1.2GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash.
Industrial grade temperature range from -40°C to 85°C. |
| 015820 | QA7/J6426-16G eMMC64 | Qseven module with Intel® Pentium® J6426 quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. |
| 015821 | QA7/J6413-8G eMMC32 | Qseven module with Intel® Celeron® J6413 quad core processor with 1.8GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
相关配件
| P/N | Product name | Description |
| 015850 | QA7/i-CSP-B | Passive cooling solution for Qseven module conga-QA7 with lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. |
| 015851 | QA7/i-HSP-B | Standard heatspreader for Qseven module conga-QA7 with lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. |
| 015852 | QA7/HSP-B | Standard heatspreader for Qseven module conga-QA7 with open-die Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore hole. |
| 015853 | QA7/CSP-B | Passive cooling solution for Qseven module conga-QA7 with open-die Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore hole. |
| 015854 | QA7/i-CSP-T | Passive cooling solution for Qseven module conga QA7 with lidded Intel Atom® x6000E processors. All standoffs are M2.5mm thread. |
| 015855 | QA7/i-HSP-T | Standard heatspreader for Qseven module conga QA7 with lidded Intel Atom® x6000E processors. All standoffs are M2.5mm thread. |
| 015856 | QA7/HSP-T | Standard heatspreader for Qseven module conga QA7 with open die Intel® Pentium®/Celeron® J and N processors. All standoffs are M2.5mm thread. |
| 015857 | QA7/CSP-T | Passive cooling solution for Qseven module conga QA7 with open die Intel® Pentium®/Celeron® J and N processors . All standoffs are M2.5mm thread. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-QA7
2024/10/09
Manual
User’s Guide for conga-QA7
2024/11/11
