产品介绍
产品规格
| Item | Description |
| SPEC |

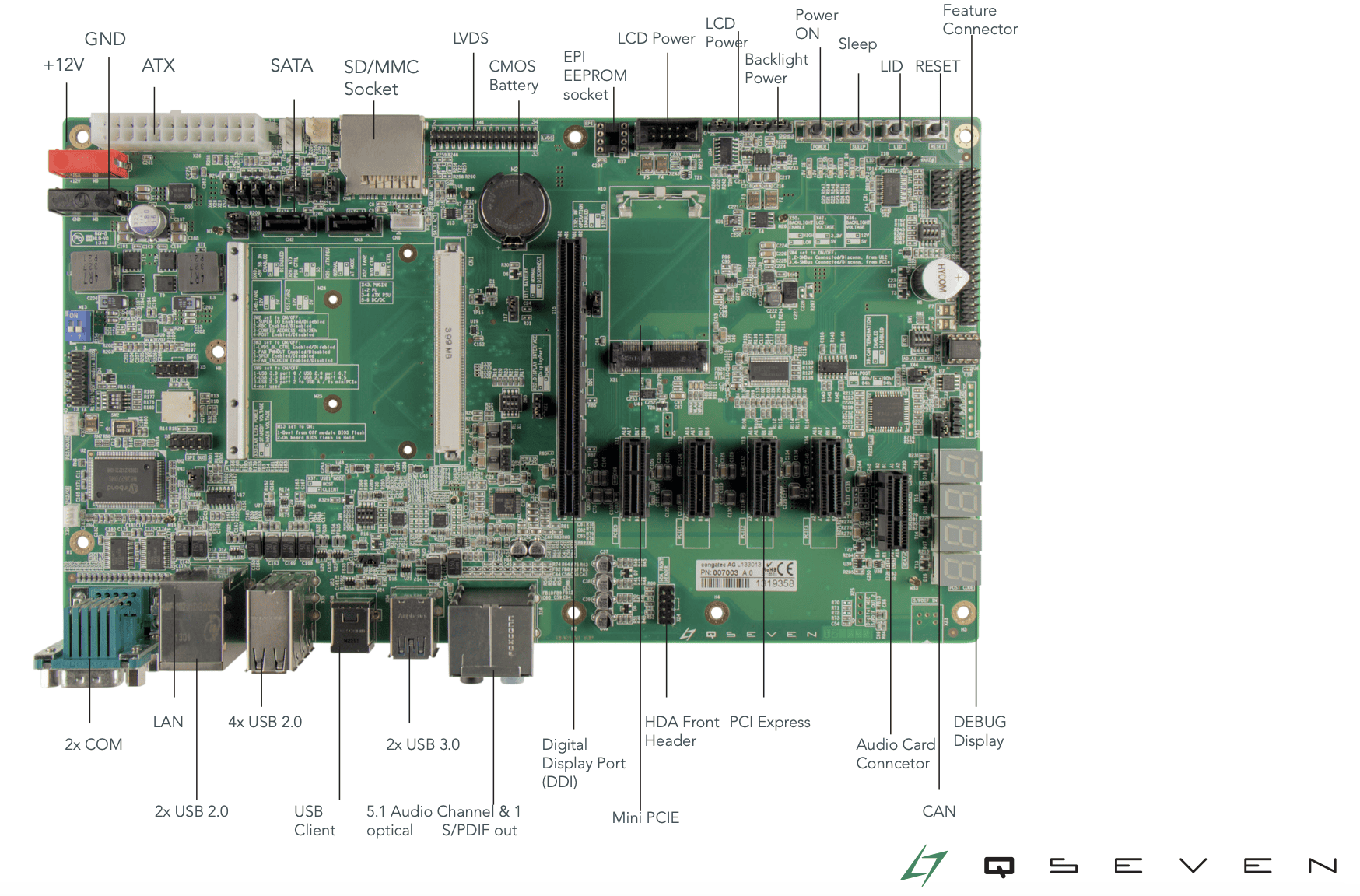

4x PCIe x1 / 3x PCIe x1 and mini PCIe, 1x SDIO Card Socket
Gigabit Ethernet, up to 8x USB 2.0, up to 2x USB 3.0, USB Client, 1xCAN
5.1 Audio, Microphone, Line In, potical S/PDIF Out
2x SATA
LPC POST code display, System speaker
Power button, Reset button, LID button, Sleep button
External BIOS flash
LPC header, SPI header, 3pin or 4pin FAN
I²C EEPROM, Aux. signals for battery management
1x Dual Channel LVDS, HDMI or Display Port
Backlight control
12 V single power input, ATX power input connector, CMOS battery
|
| Temperature |
Operating: 0 .. +60°C | Storage: -20 .. +80°C
|
| Humidity |
Operating: 10 – 90% | Storage: 5 – 95%
|
订购资讯
| P/N | Product name | Description |
| 007003 | conga-QEVAL/Qseven 2.0 x86 | Evaluation carrier board for Qseven™ modules based on x86 architecture |
| 007005 | conga-QEVAL/Qseven 2.0 ARM | Evaluation carrier board for Qseven™ modules based on ARM architecture |
| 077455 | conga-QKIT | Qseven-Starterkit with Qseven Evaluation Carrier Board, Power Supply Unit, Flat Panel Adapter, SDVO-ADD2 Card, SATA-to-CF Adapter, LVDS-to-DVI Adapter, SATA-to-IDE 2 Adapter, Cable-Box, USB-Stick |
相关配件
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
conga-Qseven 2.0
2015/06/15
Manual
User’s Guide for conga-Qseven 2.0
2024/10/30
