conga-QMX6
Qseven quad core ARM Module
- Based on NXP i.MX6 ARM Cortex A9 processors
- Extended temperature range (optional)
- Low power dissipation
- 产品类别： ARM 解决方案, COM Qseven, COM模块
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

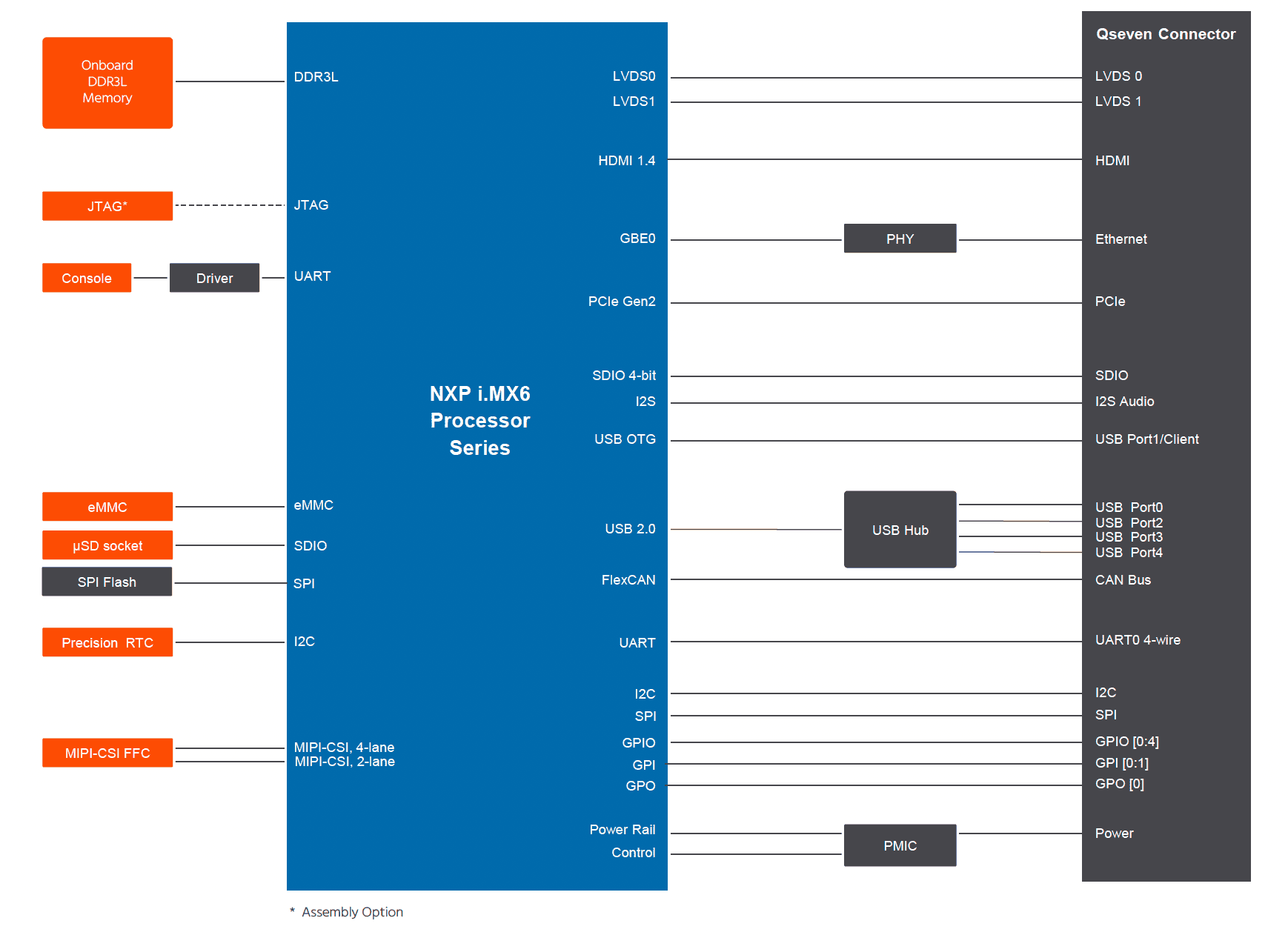

产品规格
| Item | Description |
| Formfactor | Qseven |
| CPU |
NXP i.MX6 Solo ARM Cortex A9 (1 x 1.0 GHz, 512kB L2 cache, 3W)
NXP i.MX6 Dual ARM Cortex A9 (2 x 1.0 GHz, 1MB L2 cache, 3W)
NXP i.MX6 Quad ARM Cortex A9 (4 x 1.0 GHz, 1MB L2 cache, 3W)
NXP i.MX6 Dual Lite ARM Cortex A9 (2 x 1.0 GHz, 512kB L2 cache, 3W)
|
| DRAM | Up to 4 GByte onboard DDR3L memory | 1066 MT/s |
| Ethernet | Gigabit Ethernet |
| I/O Interfaces |
4 x USB 2.0
1 x SATA
1 x SDIO
1 x I²C bus
1 x CAN Bus
1 x PCIe 2.0
1 x USB OTG client
1 x SPI
|
| Graphics | Integrated in NXP i.MX6 Series Video (VPU) | 2D Graphics (GPU2D) and 3D Graphics (GPU3D) | 3D graphics with 4 shaders up to 200MT/s dual stream 1080p/720p decoder/encoder. OpenGL | OpenCL and OpenVG 1.1 |
| Item | Description |
| Operating Systems |
Android
Windows Embedded Compact 7
Linux
BSPs with OS drivers and tools
|
| Temperature | Operating: 0 to +60°C commercial grade | -40 t o +85°C industrial grade / Storage: -40 to +85°C |
| Humidity |
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
|
| Video Interfaces |
1 x DDI
LVDS 2×24
|
| Size | 70 x 70 mm (2,75″ x 2,75″) |
订购资讯
| P/N | Product name | Description |
| 016300 | conga-QMX6/SC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C. |
| 016301 | conga-QMX6/DCL-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C |
| 016302 | conga-QMX6/DC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C. |
| 016303 | conga-QMX6/QC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C. |
| 016304 | conga-QMX6/QC-2G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 2GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C. |
| 016310 | conga-QMX6/iSC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C |
| 016311 | conga-QMX6/iDCL-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C. |
| 016312 | conga-QMX6/iDC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C. |
| 016313 | conga-QMX6/iQC-1G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C. |
| 016318 | conga-QMX6/iQC-4G eMMC32 | Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual processor, 1MB L2 cache, 4GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C. |
相关配件
| P/N | Product name | Description |
| 016160 | conga-QMX6/HSP1-T | Standard heatspreader with 1mm gap pad for Qseven module conga-QMX6 for processors with LIDDED FCBGA package. |
| 016161 | conga-QMX6/HSP2-T | Standard heatspreader with 2mm gap pad for Qseven module conga-QMX6 for processors with plastic MAP BGA package. |
| 016162 | conga-QMX6/HSP3-T | Standard heatspreader with heat stack solution for Qseven module conga-QMX6 for processors with open silicon FCBGA package. |
| 007005 | conga-QEVAL/Qseven 2.0 ARM | Evaluation carrier board for Qseven ARM modules. |
| 500025 | conga-HDMI add-on card | conga-HDMI add-on card for evaluation of the HDMI graphics interface on Qseven modules in combination with the congatec evaluation carrier board conga-QEVAL |
| 48000023 | RS232 adapter cable for conga-ARM modules | RS232 adapter cable for congatec ARM modules console debug application. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-QMX6
2024/10/30
Manual
User’s Guide for conga-QMX6 (hardware only)
2024/10/30
Manual
User’s Guide for conga-QMX6 (software only)
2015/06/15
Manual
CTN 20120906 001
2015/06/15
Document
05-12 conga-QMX6 dt Final-1
2015/06/15
Document
05-12 conga-QMX6 eng Final-1
2015/06/15
Document
05-12 conga-QMX6 ru
2015/06/15
