conga-QMX8-Plus
Qseven module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU
- NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU
- Enhanced AI, Machine Learning and Vision capabilities featuring NPU and integrated camera ISP’s
- Ultra low power architecture with 2-5W
- Extended longevity up to 15 years
- Temperature range up to -40°C .. +85°C
- 产品类别： COM Qseven, COM模块
产品介绍
产品规格
订购资讯
相关配件
资讯下载

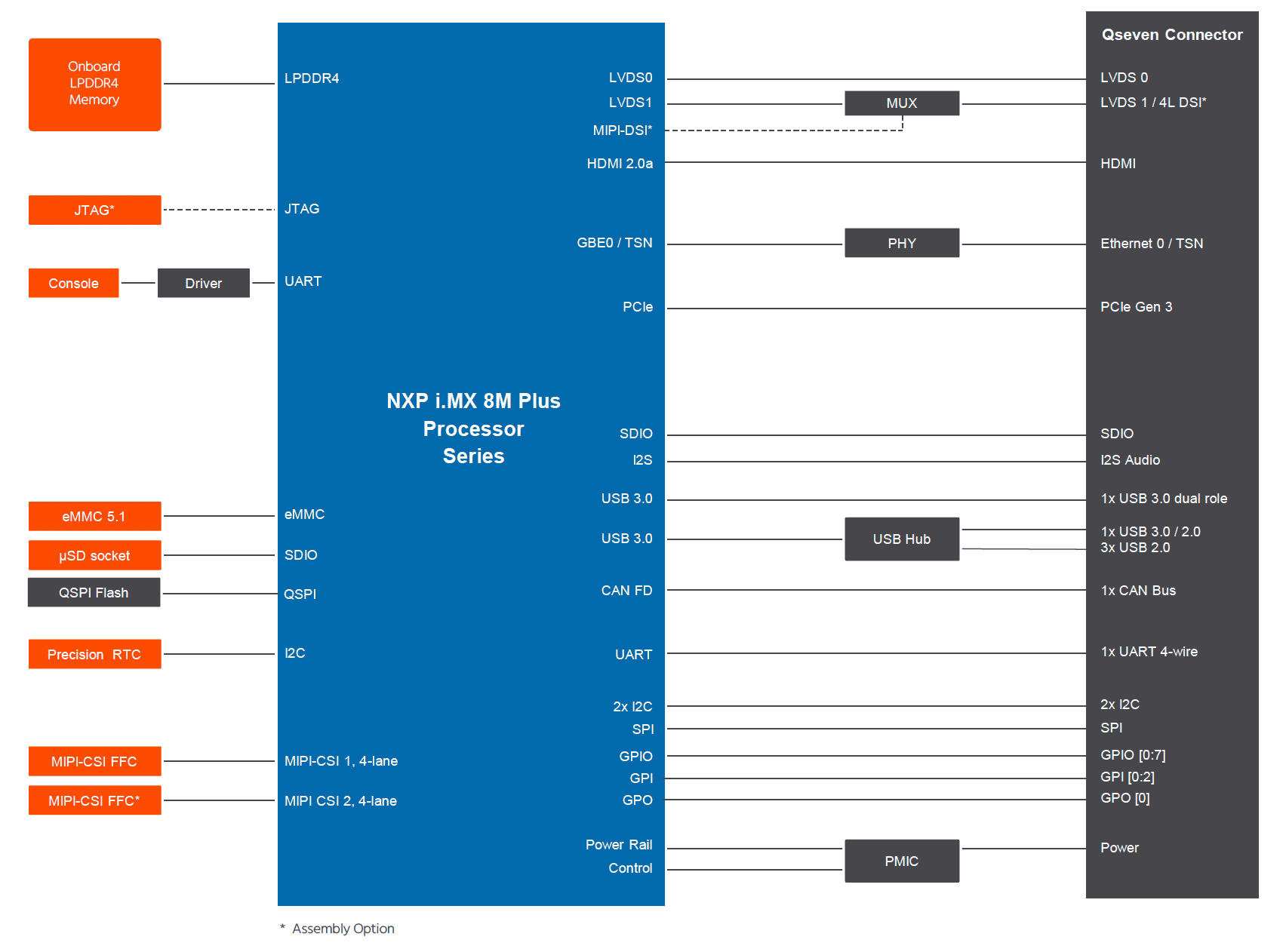

产品介绍
产品规格
| Item | Description |
| Formfactor | Qseven |
| CPU |
NXP i.MX 8M Plus (consumer) (4x ARM® Cortex®-A53 @1.8GHz +1x ARM® Cortex®-M7 + NPU)
NXP i.MX 8M Plus (industrial) (4x ARM® Cortex®-A53 @1.6GHz +1x ARM® Cortex®-M7 + NPU)
|
| DRAM | Up to 6 GByte onboard LPDDR4 memory | 4000 MT/s | inline ECC |
| Ethernet | 1 x Gbit Ethernet with IEEE 1588 and TSN Support |
| I/O Interfaces |
1 x dual-role USB 3.0
1 x CAN FD
1 x UART with Handshake
1 x SPI
2 x I²C bus
1 x PCIe 3.0
1 x onboard µSD card socket
1 x SDIO 3.0
3 x USB 2.0
12 x GPIOs
|
| Mass storage | eMMC 5.1 up to 128 GByte | SPI NOR Flash up to 64MByte |
| Graphics | Integrated in SoC | GC7000UL 3D graphics with 2 high performance vec4 shaders | GC520L 2D graphics VPU up to 1080p60 H.265/H.264 decoding and encoding | OpenGL ES 3.1 | Vulcan | OpenCL 1.2 FP | OpenVG 1.1 2 independent displays |
| Item | Description |
| Security | Cryptographic Acceleration and Assurance Module (CAAM) | Resource Domain Controller | ARM® TrustZone® High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 40 |
| Operating Systems |
Linux
Yocto
Android
|
| Temperature | Operating Temperature Range: 0 to +60°C commercial grade | -40 to +85°C industrial grade Storage Temperature Range: -40 to +85°C |
| Humidity |
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
|
| Video Interfaces |
1 x dual channel 24-bit LVDS | 1x HDMI 2.0a | 1x MIPI-DSI 4-lane shared with second LVDS channel
2 x MIPI-CSI 4-lane onboard connectors | 2x integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution
|
| Size | 70 x 70 mm (2,75″ x 2,75″) |
订购资讯
| P/N | Product name | Description |
| 016600 | conga-QMX8-Plus/QC-4G eMMC16 | Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C |
| 016601 | conga-QMX8-Plus/QC-2G eMMC16 | Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C. |
| 016620 | conga-QMX8-Plus/i-QC-4G eMMC16 | Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C |
| 016621 | conga-QMX8-Plus/i-QC-2G eMMC16 | Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. |
相关配件
| P/N | Product name | Description |
| 016650 | QMX8-Plus/HSP-T | Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are 2.5mm thread. |
| 016651 | QMX8-Plus/HSP-B | Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are with 2.7mm bore hole. |
| 007005 | conga-QEVAL/Qseven 2.0 ARM | Evaluation carrier board for Qseven ARM modules. |
| 500025 | conga-HDMI add-on card | conga-HDMI add-on card for evaluation of the HDMI graphics interface on Qseven modules in combination with the congatec evaluation carrier board conga-QEVAL |
| 48000023 | RS232 adapter cable for conga-ARM modules | RS232 adapter cable for congatec ARM modules console debug application. |
| 44500041 | Basler dart camera daA3840-30mc | Basler dart BCON for MIPI camera module daA3840-30mc, 8Mpx, 30fps, 4 CSI2-Lanes, SMount. |
| 10000399 | FFC Basler dart BCON for MIPI, 200mm | FFC 28 pin cable for Basler BCON dart cameras, 0,5mm pitch. compatible with 28 pin Hirose ZIF connector (PN: FH41-28S-0.5SH(05) |
| 10000429 | Evetar Lens M118B0418IR F1.8 f4mm 1/1.8″ – Lens | Evetar Lens M118B0418IR F1.8 f4mm 1/1.8″ – Lens for Basler dart camera module daA3840- 30mc |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-QMX8-Plus
2024/10/30
Manual
User’s Guide for conga-QMX8-Plus
2024/10/30
