conga-SA7
SMARC 2.1 module based on Intel® Atom® x6000E and Intel® Pentium® and Celeron® J Series processors
- SMARC 2.1 module based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors
- High performance Intel® UHD Graphics for 10th Gen Intel® Processors
- LPDDR4x with up to 4.267 MT/s Memory Support
- Options for M.2 1216 WiFi/BT
- Options for Industrial Temperature Range -40°C to 85°C
产品介绍
产品规格
订购资讯
相关配件
资讯下载

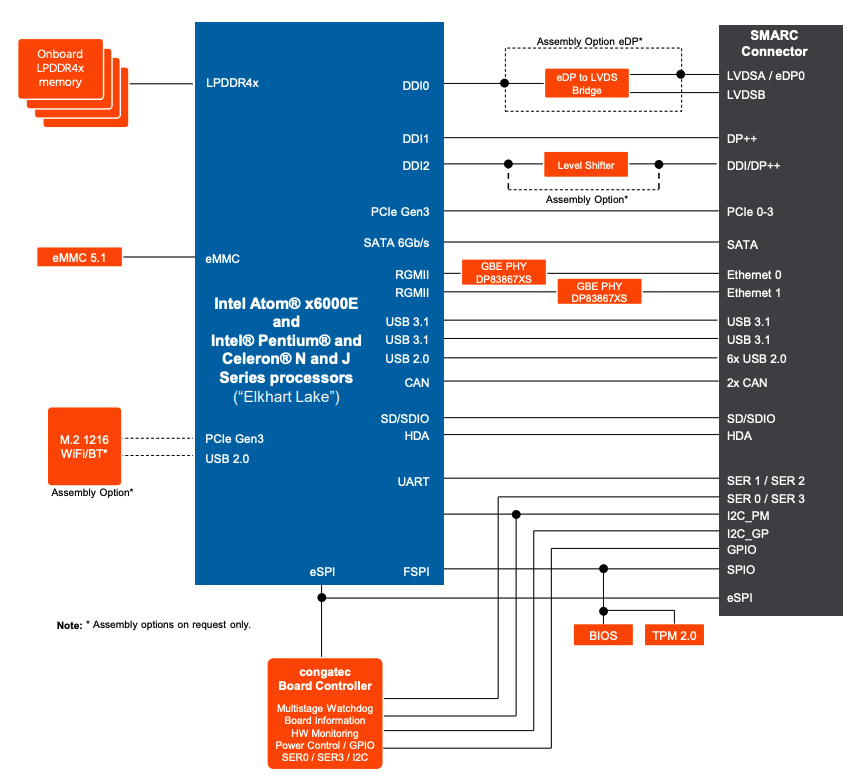

产品介绍
产品规格
| Item | Description |
| Formfactor | SMARC |
| CPU |
Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W)
Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
|
| DRAM | max. 16GB (optional up to 32 GB) onboard LPDDR4x | up to 4.267 MT/s |
| Ethernet | 2 x GbE with TSN support | 2x real-time trigger |
| I/O Interfaces |
2 x USB 3.1 Gen2
6 x USB 2.0
1 x SATA III (6Gb/s)
1 x SDIO
up to 4x PCIe Gen3
2 x I²C bus
SPI
1 x eSPI
4 x UART
GPIOs
2 x CAN Bus
onboard M.2 1216 WiFI/BT (optional)
|
| Mass storage | eMMC 5.1 onboard flash up to 64 Gbyte (optional up to 128 Gbyte) |
| Graphics | Intel® UHD Graphics (Gen11) |
| Item | Description |
| congatec Board Controller | Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Power Management | ACPI 5 .0 compliant, Smart Battery Management |
| Operating Systems |
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor | RTS Real-Time Hypervisor |
| Temperature | Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +80°C Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces |
Dual channel LVDS transmitter (support for flat panels with 2×24 bit data mapping up to a resolution of 1920×1200 @60Hz) | shared with eDP (option)
DP++
|
| Size |
82 x 50 mm (3,23” x 1,97”)
|
订购资讯
| P/N | Product name | Description |
| 050100 | SA7/x6425E-16G eMMC64 | SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. |
| 050101 | SA7/x6413E-8G eMMC32 | SMARC 2.1 module with Intel® Atom® x6413E quad core processor with 1.5GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
| 050102 | SA7/x6211E-4G eMMC32 | SMARC 2.1 module with Intel® Atom® x6211E dual core processor with 1.3GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
| 050103 | conga-SA7/x6425E-8G eMMC32 | SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. |
| 050104 | conga-SA7/x6425E-4G eMMC32 | SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. |
| 050110 | SA7/i-x6425RE-8G eMMC32 | SMARC 2.1 module with Intel® Atom® x6425RE quad core processor with 1.9GHz core frequency, 1.5MB cache, 8GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 050111 | SA7/i-x6414RE-4G eMMC32 | SMARC 2.1 module with Intel® Atom® x6414RE quad core processor with 1.5GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 050112 | SA7/i-x6212RE-4G eMMC32 | SMARC 2.1 module with Intel® Atom® x6212RE dual core processor with 1.2GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 050113 | conga-SA7/i-x6425RE-4G eMMC32 | SMARC 2.1 module with Intel® Atom® x6425RE quad core processor with 1.9GHz core frequency, 1.5MB cache, 4GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 050120 | SA7/J6426-16G eMMC64 | SMARC 2.1 module with Intel® Pentium® J6426 quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. |
| 050121 | SA7/J6413-8G eMMC32 | SMARC 2.1 module with Intel® Celeron® J6413 quad core processor with 1.8GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. |
相关配件
| P/N | Product name | Description |
| 050150 | conga-SA7/i-CSP-B | Passive cooling solution for SMARC 2.1 module conga-SA7 with lidded Intel Atom® x6000E processor series. All standoffs are with 2.7mm bore hole. |
| 050151 | conga-SA7/i-HSP-B | Standard heatspreader for SMARC 2.1 module conga-SA7 with lidded Intel Atom® x6000E processor series. All standoffs are with 2.7mm bore hole. |
| 050152 | conga-SA7/HSP-B | Standard heatspreader for SMARC 2.1 module conga-SA7 with open-die Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm bore hole. |
| 050153 | conga-SA7/CSP-B | Passive cooling solution for SMARC 2.1 module conga-SA7 with open-die Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm bore hole. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-SA7
2024/10/22
Manual
User’s Guide for conga-SA7
2024/11/11
