conga-SA8
Industrial grade SMARC module based on Intel Atom x7000RE Series with up to 8 cores, max. 16 GByte soldered LPDDR5 and Virtualization ready with RTS Hypervisor
- Increase in parallelism and performance
- AI Acceleration (VNNI)
- Intel Gen 12 UHD Graphics with up to 32EU’s
- LPDDR5 with up to 4.800 MT/s memory support
- Extended temperature options available
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

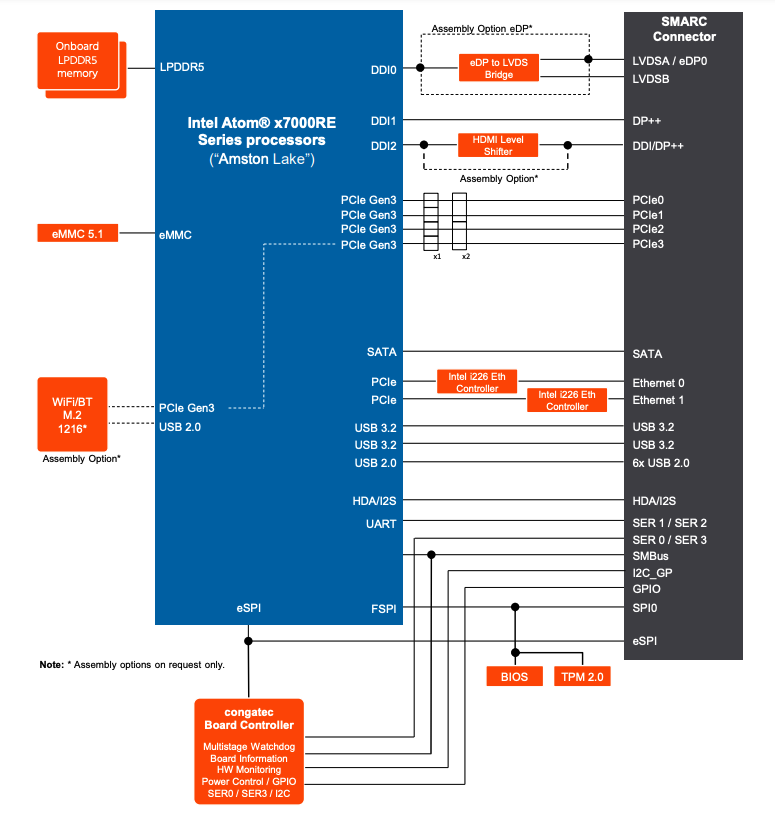

产品规格
| Item | Description |
| Formfactor | SMARC |
| CPU |
Intel Core™ i3-N305 (8 x 1.8 GHz, 6MB, 9W)
Intel Atom® x7425E (4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo))
Intel Atom® x7433RE (4 x 1.5 GHz, 9W)
Intel Atom® x7835RE (8 x 1.3 GHz, 12W)
|
| DRAM | max. 16GB onboard LPDDR5 | up to 4.800 MT/s | In-Band ECC |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
Supporting TSN – Time Sensitive Networking (selected PNs)
2 Software Definable Pins (SDPs) to be used for IEEE 1588
|
| I/O Interfaces |
2 x USB 3.2 Gen2
6 x USB 2.0
SATA Gen 3.2
up to 4x PCIe Gen3
3 x I²C bus
SPI
eSPI
4 x UART
12 x GPIOs
GP I²C
SM-Bus
2 x I²C CSI
Intel® Wi-Fi 6E AX210, BT 5.3 (optional)
|
| Mass storage | eMMC 5.1 onboard flash up to 256 GB (optional configured as pSLCmode) |
| Graphics | Integrated Intel Gen 12 UHD Graphics with up to 32EU’s |
| Item | Description |
| congatec Board Controller | Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control |
| embedded BIOS Features |
AMI Aptio® UEFI firmware
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Security | TPM 2.0 | Intel®PlatformTrust Technology | Intel®BootGuard | Intel® OS Guard |
| Power Management | ACPI 5 .0 compliant, Smart Battery Management |
| Operating Systems |
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
|
| Hypervisor | RTS Real-Time Hypervisor |
| Temperature | Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +80°C Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces |
Dual channel LVDS transmitter (support for flat panels with 2×24 bit data mapping up to a resolution of 1920×1200 @60Hz) | shared with eDP (option)
HDMI 2.0b: 4Kx2K @ 60Hz
eDP 1.4b: 4096×2304 @ 60Hz HBR3
DP 1.4: 4096×2304 @ 60Hz
Up to 3 independent displays
|
| Size |
82 x 50 mm (3,23” x 1,97”)
|
订购资讯
| P/N | Product name | Description |
| 051410 | conga-SA8/i-x7835RE-16G-eMMC64 | SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency, 16GB 4800MT/s LPDDR5 onboard memory and 64GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 051411 | conga-SA8/i-x7835RE-8G-eMMC32 | SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency, 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 051412 | conga-SA8/i-x7433RE-8G-eMMC32 | SMARC 2.1 module with Intel Atom® x7433RE 4-core processor with 1.3GHz core frequency, 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 051413 | conga-SA8/i-x7433RE-4G-eMMC32 | SMARC 2.1 module with Intel Atom® x7433RE 4-core processor with 1.3GHz core frequency, 4GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. |
| 051414 | conga-SA8/i3-N305-16G-eMMC64 | SMARC 2.1 module with Intel Core™ i3-N305 8-core processor with 1.8GHz core frequency up to 3.8GHz (turbo), 16GB 4800MT/s LPDDR5 onboard memory and 64GB eMMC 5.1 onboard flash. |
| 051415 | conga-SA8/x7425E-8G-eMMC32 | SMARC 2.1 module with Intel Atom® x7425E 4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo), 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. |
| 051420 | conga-SA8/i-x7835RE-8G-eMMC32 AX210 | SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency, 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. Intel AX210 Wifi6E/BT. |
相关配件
| P/N | Product name | Description |
| 051450 | conga-SA8/CSP-B | Passive cooling solution for SMARC 2.1 module conga-SA8. |
| 051451 | conga-SA8/HSP-B | Standard heatspreader for SMARC 2.1 module conga-SA8. |
| 050060 | SMARC/CSA Adapter | Active cooling solution adapter for SMARC 2.1 modules used in combination with module heat spreader. |
| 007010 | conga-SEVAL | Evaluation Carrier Board compatible with SMARC modules |
| 020751 | conga-SMC1/SMARC-x86 | Compact sized 3.5” Carrier Board for x86 based SMARC 2.1 modules |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-SA8
2024/09/19
Manual
User’s Guide for conga-SA8
2024/09/25
