conga-SEVAL

1x PCIe x4 | 1x miniPCIe | 1x PCIe x1 | 1x M.2 socket Key E

1x SATA

1x USB 3.0 | 1x USB 2.0 | 1x micro USB 2.0 (OTG) | 1x USB Type C with PD and DP1 via Alternate Mode

2x RS-232 (1x internal RX/TX on pinheader, 1x RX/TX w/ handshake on DSUB9)

2x CAN

GPIO

1x SDIO interface

2x I²C Bus 1x eSPI/SPI1 on header

1x SPI Bus

1x FAN control

1x Disk Drive Power Output

2×24 bit LVDS connector shared with 2x eDP or 2xDSI

1x DP++

1x HDMI

2x CSI2

I2S Audio interface and HDA interface

Power button | Reset button | Sleep button | LID button | various indication LEDs

1x Standard congatec Feature Connector

4x 7-Segment Postcode LEDs connected to GP_I2C bus

ATX Power Supply | 12V – 24V Wide Range Carrier Board Supply | 3.0V – 5.25V Wide Range Module Supply | USB Type C PD (12V – 20V)

Operating: -40 .. +85°C | Storage: -20 .. +80°C

Operating: 10 – 90% r. H. non cond. | Storage: 5 – 95% r. H. non cond.

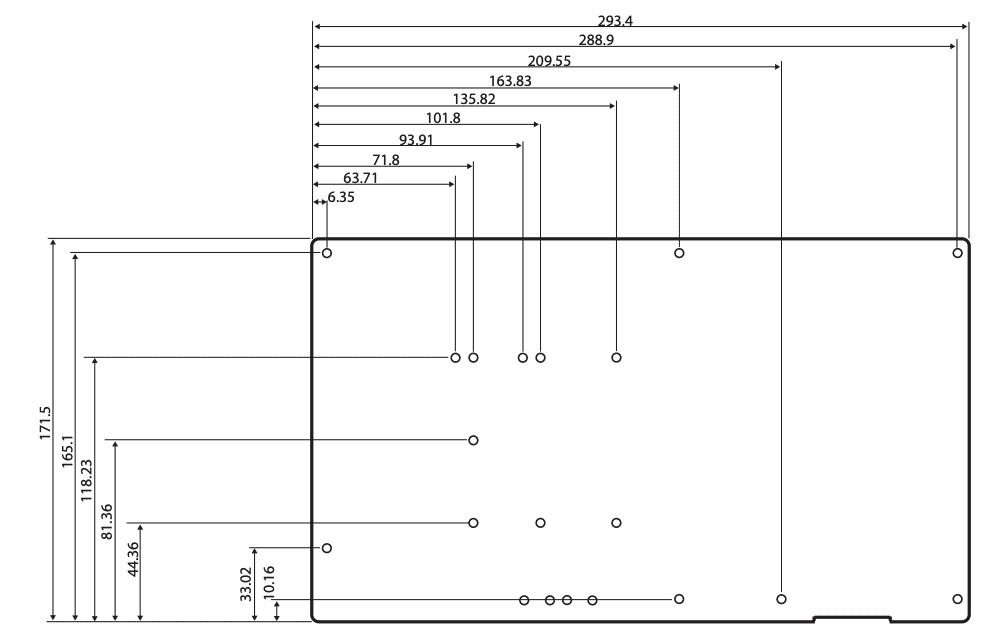

294 x 172 mm
