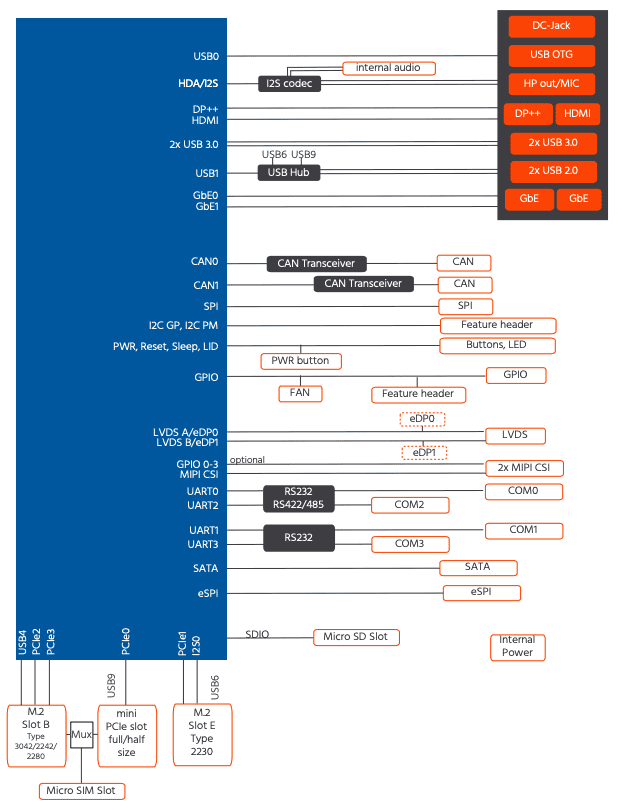

conga-SMC1/SMARC-ARM

1x LVDS 18/24 bit single/dual channel LVDS
2x optional eDP/DSI (dependent on processor platform)
1x LCD backlight (5V and 12V)
1x SATA Gen3 (support of SATADOM VCC PIN 7 and PIN 8)
1x SATA Power (+5V, +12V)
1x mPCIe full/half size (support for PCIe Gen3 and USB 2.0)
1x M.2 Type E 2230 (I2S, PCIe Gen3, USB 2.0)
1x M.2 Type B 2242/2280 (2x PCIe Gen 3, USB 2.0)
2x MIPI-CSI
1x Micro SIM (muxed between M.2 Type B and mini PCIe)
2x RS 232/422/485 (COM 0 and COM 2 with handshake)
2x RS232 (COM 1 and COM3 TX/RX only)
2x CAN
1x Micro SD card
1x GPIO connector (up to 8 GPIO)
1x Feature connector (Batlow, Charging, GbESDP, WD)
1x Buttons and LEDs (Power, Reset, Sleep, LID, Power LED, SATA LED)
1x Onboard power button
1x Onboard power state LED
1x SPI/eSPI header
1x I2C header
1x DMIC and analog front panel audio output
1x 12V FAN connector (4-pin)
1x RTC backup(CR2032)
1x Internal DC-IN

2x GbERJ45
2x USB 2.0
1x USB 2.0 OTG
2x USB 3.0/3.1
1x HDMI
1x DP++
1x Audio Jack 4-pin with I2S audio WM8904
1x External DC-In (12-24V)

Operating Temp.: 0°C … +60°C
Storage Temp.: -20°C … +70°C

Operating Hum.:10% -90% r. H. non cond.
Storage Hum.: 5% -95% r. H. non cond.

146 x 102 mm (approx. 5.75″ x 4.02″)
