产品介绍
产品规格
| Item | Description |
| Formfactor | 3.5″ Carrier Board |
| Board Variant |
Application Carrier Board for x86 based SMARC 2.1 modules
|

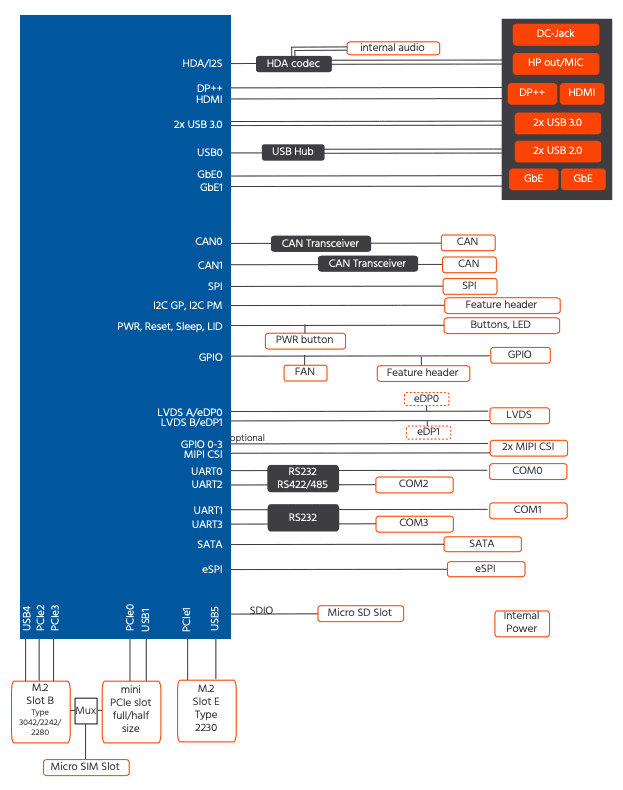

| Internal Connectors and Features |
1x LVDS 18/24bit single/dual channel LVDS
2x optional eDP/DSI (dependent on processor platform) 1x LCD backlight (5V and 12V) 1x SATA Gen3 (support of SATADOM VCC PIN 7 and PIN 8) 1x SATA Power (+5V, +12V) 1x mPCIe full/half size (support for PCIe Gen3 and USB 2.0) 1x M.2 Type E 2230 (PCIe Gen3, USB 2.0) 1x M.2 Type B 3042/2242/2280 (2x PCIe Gen 3, USB 2.0) 2x MIPI-CSI 1x Micro SIM (muxed between M.2 Type B and mini PCIe) 2x RS 232/422/485 (COM 0 and COM 2 with handshake) 2x RS232 (COM 1 and COM3 TX/RX only) 2x CAN 1x Micro SD card 1x GPIO connector (up to 7 GPIO) 1x Feature connector (Batlow, Charging, GbE SDP, WD) 1x Buttons and LEDs (Power, Reset, Sleep, LID, Power LED, SATA LED) 1x Onboard power button 1x Onboard power state LED 1x SPI/eSPI header 1x I2C header 1x DMIC and analog front panel audio output 1x 12V FAN connector (4-pin) 1x RTC backup (CR2032) 1x Internal DC-In |
| Item | Description |
| External Connectors |
2x GbE RJ45
2x USB 2.0 2x USB 3.0/3.1 1x HDMI 1x DP++ 1x Audio Jack 4-pin with HDA audio ALC888S-VD 1x External DC-In (12-24V) |
| Power Specification |
External and internal DC-In (12-24V Wide Range Carrier Board Supply)
|
| Operating Temperature |
Operating Temp.: 0°C … +60°C | Storage Temp.: -20°C … +70°C
|
| Humidity |
Operating Hum.: 10% – 90% r. H. non cond. | Storage Hum.: 5% – 95% r. H. non cond.
|
| Size |
146 x 102 mm (approx. 5.75″ x 4.02″)
|
订购资讯
| P/N | Product name |
| 020751 | conga-SMC1/SMARC-x86 |
相关配件
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
conga-SMC1/SMARC-x86
2020/11/13
Manual
User’s Guide for conga-SMC1
2024/10/30
