conga-SMX8-Mini
SMARC 2.1 module based on NXP i.MX8M Mini processor series
- SMARC 2.1 Module based on NXP i.MX 8M Mini
- Scalable ARM Performance with up to 4x 1.8GHz Cortex-A53 and 1x Cortex-M4F
- Highly improved power efficiency and performance by 14LPC FinFET process technology
- 3D Graphics with full-HD resolution
- MIPI CSI-2 camera interface
- Extended longevity up to 15 years
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

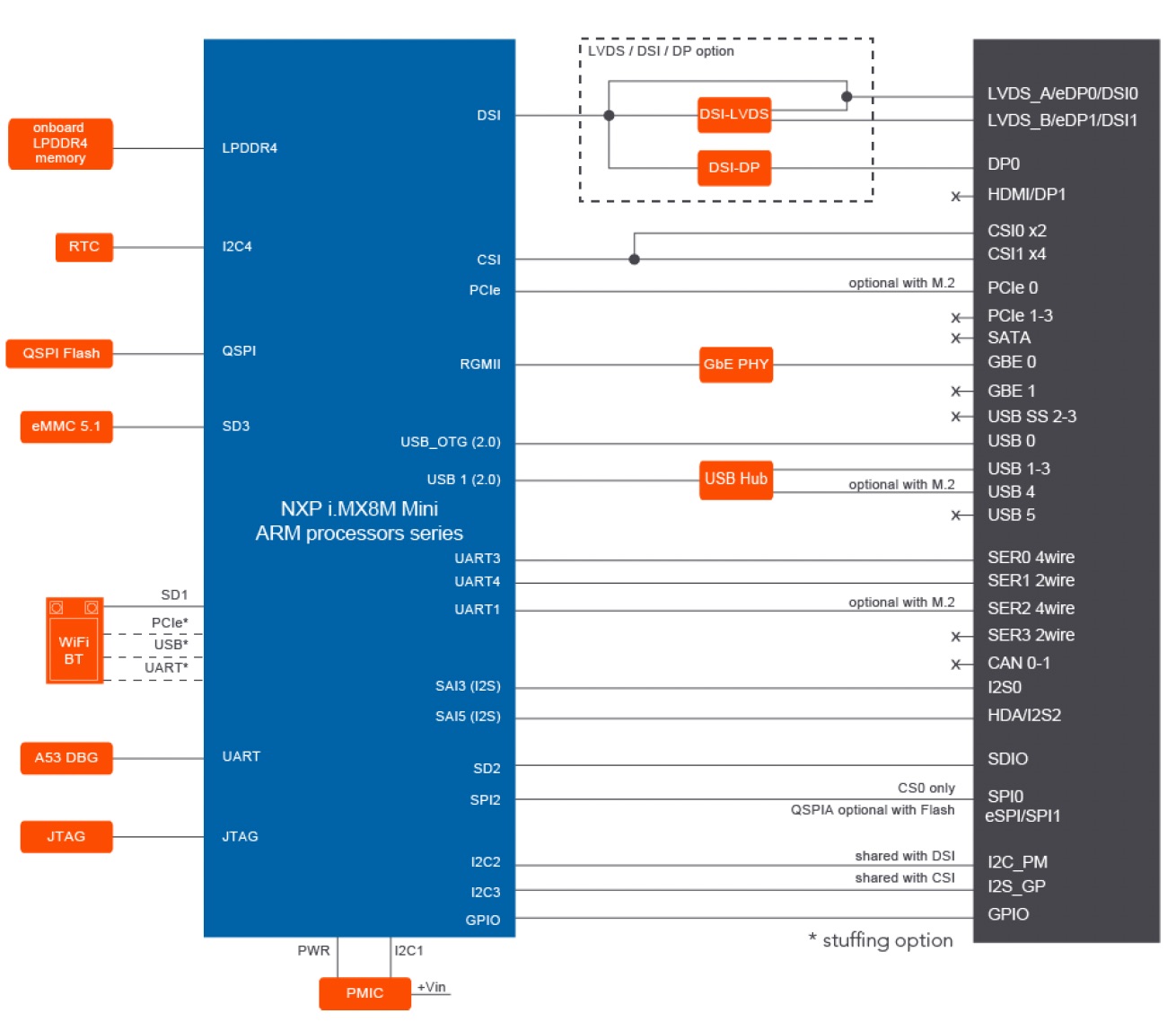

产品规格
| Item | Description |
| Formfactor | SMARC |
| CPU |
NXP i.MX 8M Mini Quad (4x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
NXP i.MX 8M Mini Dual (2x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
NXP i.MX 8M Mini Solo (1x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
NXP i.MX 8M Mini Quad industrial (4x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
NXP i.MX 8M Mini Dual industrial (2x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
NXP i.MX 8M Mini Solo industrial (1x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
|
| DRAM |
Up to 4 GByte onboard LPDDR4 memory | 3000 MT/s
|
| Ethernet |
1 x Gigabit Ethernet
|
| I/O Interfaces |
5 x USB 2.0 (shared with 1x USB OTG client)
1 x PCIe 2.0
1 x SDIO 3.0
I²C bus
1 x SPI
USB 2.0 (shared with 1x USB OTG client)
up to 3x UART (1x with handshake)
GPIOs
optional M.2 1216 WiFi/BT module
|
| Graphics | Integrated in NXP i.MX 8M Mini Series GC NanoUltra 3D GPU one display VPU with up to 1080p video decoding (H.265, H.264, VP8/9) | up to 1080p video encoding (H.264, VP8) 3D Graphics GPU with 1 shader core | up to 6.4GFlops | GC328 2D Graphics GPU OpenGL ES 2.0 | OpenVG 1.1 |
| Item | Description |
| Security | High Assurance Boot support | SRTC | SJTAG | TrustZone | AES-256, RSA-4096, SHA-256, 3DES, DES, ARC4, MD-5 Secure Real Time Clock (RTC) | eFuse Key Storage | True Random Number Generator (RNG) | 32 KB Secure RAM |
| Operating Systems |
Android
Linux
Yocto
|
| Temperature |
Commercial : Operating: 0 to +60°C | Operating industrial: -40 .. +85°C | Storage: -20 to +80°C
|
| Humidity |
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
|
| Video Interfaces |
1x dual channel 24bit LVDS through bridge (default) | opt. eDP 1.4 or MIPI-DSI 4-lanes (shared with LVDS)
|
| Size |
82 x 50 mm (3,23” x 1,97”)
|
订购资讯
| P/N | Product name | Description |
| 051200 | conga-SMX8-Mini/QC-4G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range. |
| 051201 | conga-SMX8-Mini/DC-2G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Dual 14LPC FinFET processor with 2x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range. |
| 051202 | conga-SMX8-Mini/SC-1G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Single 14LPC FinFET processor with 1x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 1GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range. |
| 051203 | conga-SMX8-Mini/QC-2G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range. |
| 051204 | conga-SMX8-Mini/QC-4G eMMC16 DP | SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Features DisplayPort interface. Commercial temperature range. |
| 051220 | conga-SMX8-Mini/i-QC-4G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range. |
| 051221 | conga-SMX8-Mini/i-DC-2G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Dual 14LPC FinFET processor with 2x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range. |
| 051222 | conga-SMX8-Mini/i-SC-1G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Single 14LPC FinFET processor with 1x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 1GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range. |
| 051223 | conga-SMX8-Mini/i-QC-2G eMMC16 | SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range. |
相关配件
| P/N | Product name | Description |
| 007010 | conga-SEVAL | Evaluation carrier board for SMARC modules. |
| 020750 | conga-SMC1/SMARC-ARM | 3.5’’ carrier board for congatec SMARC modules based on ARM architecture. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-SMX8X-Mini
2020/12/07
Manual
User’s Guide for conga-SMX8X-Mini
2024/10/17
