conga-SMX8-Plus
SMARC 2.1 module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU
- NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU
- Enhanced AI, Machine Learning and Vision capabilities featuring NPU and integrated camera ISP’s
- Ultra low power architecture with 2-5W
- Support for up to 3 independent displays
- Extended longevity up to 15 years
- Temperature range up to -40°C .. +85°C
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

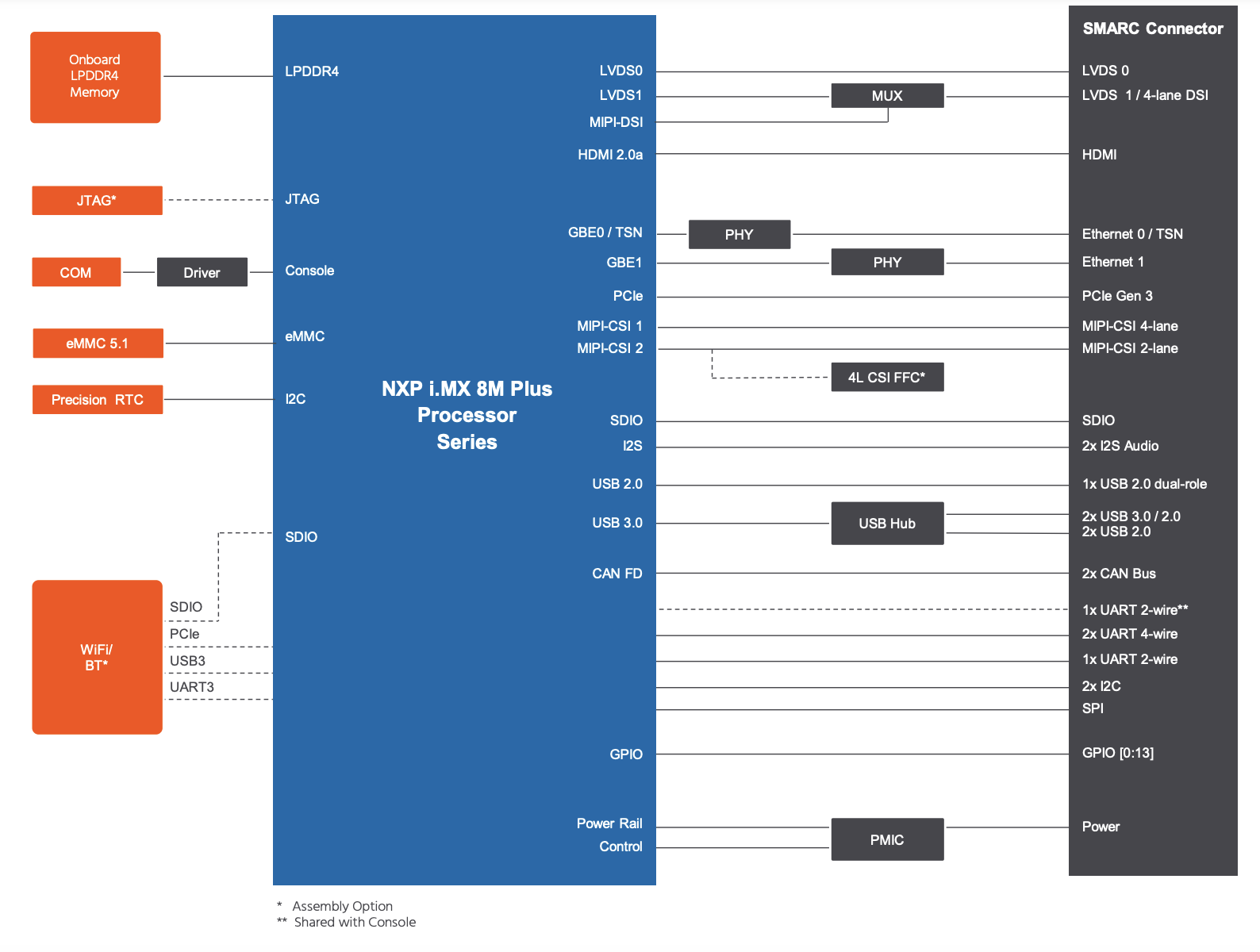

产品规格
| Item | Description |
| Formfactor | SMARC |
| CPU |
NXP i.MX 8M Plus (consumer) (4x ARM® Cortex®-A53 @1.8GHz +1x ARM® Cortex®-M7 + NPU)
NXP i.MX 8M Plus (industrial) (4x ARM® Cortex®-A53 @1.6GHz +1x ARM® Cortex®-M7 + NPU)
|
| DRAM | Up to 6 GByte onboard LPDDR4 memory | 4000 MT/s | inline ECC |
| Ethernet |
2x Gbit Ethernet with IEEE 1588 Support (1x with TSN support)
|
| I/O Interfaces |
1 x dual-role USB 2.0
14 x GPIOs
2 x CAN FD
4 x UART (2x with Handshake)
1 x SPI
2 x I²C bus
1 x PCIe 3.0
1 x SDIO 3.0
2 x USB 3.0
2 x USB 2.0
optional soldered M.2 1216 WiFi/BT
|
| Mass storage | eMMC 5.1 up to 128 GByte |
| Graphics | Integrated in SoC | GC7000UL3D graphics with 2 high performance vec4 shaders | GC520L 2D graphic | supports up to 2x1080p60 or 1x4kp30display resolution | Up to 3 independent displaysVPU up to 1080p60 H.265/H.264 decoding and encoding | OpenGL ES 3.1 | Vu |
| Item | Description |
| Security | Cryptographic Acceleration and Assurance Module Resource Domain Controller | ARM® TrustZone® | High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096 and secure key storage | side channel attack resistance |
| Operating Systems |
Android
Linux
Yocto
|
| Temperature |
Commercial : Operating 0°C to 60°C | Storage -20°C to 80°C
Industrial: Operating -40°C to +85°C | Storage -40°C to +85°C |
| Humidity |
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
|
| Video Interfaces |
1x dual channel 24 bit LVDS | 1x HDMI 2.0a | 1x MIPI-DSI 4-lane shared with second LVDS channel 2x MIPI-CSI 4-lanes | 2x integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution
|
| Size |
82 x 50 mm (3,23” x 1,97”)
|
订购资讯
| P/N | Product name | Description |
| 051300 | conga-SMX8-Plus/QC-4G eMMC16 | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.8GHz +1x ARM Cortex-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C. |
| 051301 | conga-SMX8-Plus/QC-2G eMMC16 | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.8GHz +1x ARM Cortex-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C. |
| 051320 | conga-SMX8-Plus/i-QC-4G eMMC16 | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.6GHz +1x ARM Cortex-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range from -40°C to 85°C. |
| 051321 | conga-SMX8-Plus/i-QC-2G eMMC16 | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.6GHz +1x ARM Cortex-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range from -40°C to 85°C. |
| 051322 | conga-SMX8-Plus/i-QC-4G eMMC16 AW-CM276N | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.6GHz +1x ARM Cortex-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. AzureWave AW-CM276NF onboard Wifi/BT module. Extended temperature range from -25°C to 80°C. |
相关配件
| P/N | Product name | Description |
| 051350 | conga-SMX8-Plus/CSP-B | Passive cooling solution for SMARC module conga-SMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are with 2.7mm bore hole. |
| 051351 | conga-SMX8-Plus/HSP-B | Heat spreader solution for SMARC module conga-SMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are with 2.7mm bore hole. |
| 050060 | SMARC/CSA Adapter | Active cooling solution adapter for SMARC modules used in combination with module heat spreader. |
| 007010 | conga-SEVAL | Evaluation carrier board for SMARC modules. |
| 020750 | conga-SMC1/SMARC-ARM | 3.5’’ carrier board for congatec SMARC modules based on ARM architecture. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-SMX8X-Plus
2024/09/09
Manual
User’s Guide for conga-SMX8X-Plus
2024/08/28
