conga-SMX95
SMARC 2.1 module based on NXP i.MX 95 processor series with up to 6-core ARM Cortex-A55 & NXP eIQ® Neutron NPU
- SMARC Module based on NXP i.MX 95 processor series | up to 6-core ARM Cortex-A55
- NXP eIQ® Neutron NPU for high-speed data processing, Machine Learning and Vision
- Advanced Security with EdgeLock™ and Cryptographic Engine
- Ultra low power architecture with 3-8W
- Temperature range up to -40°C .. +85°C
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍

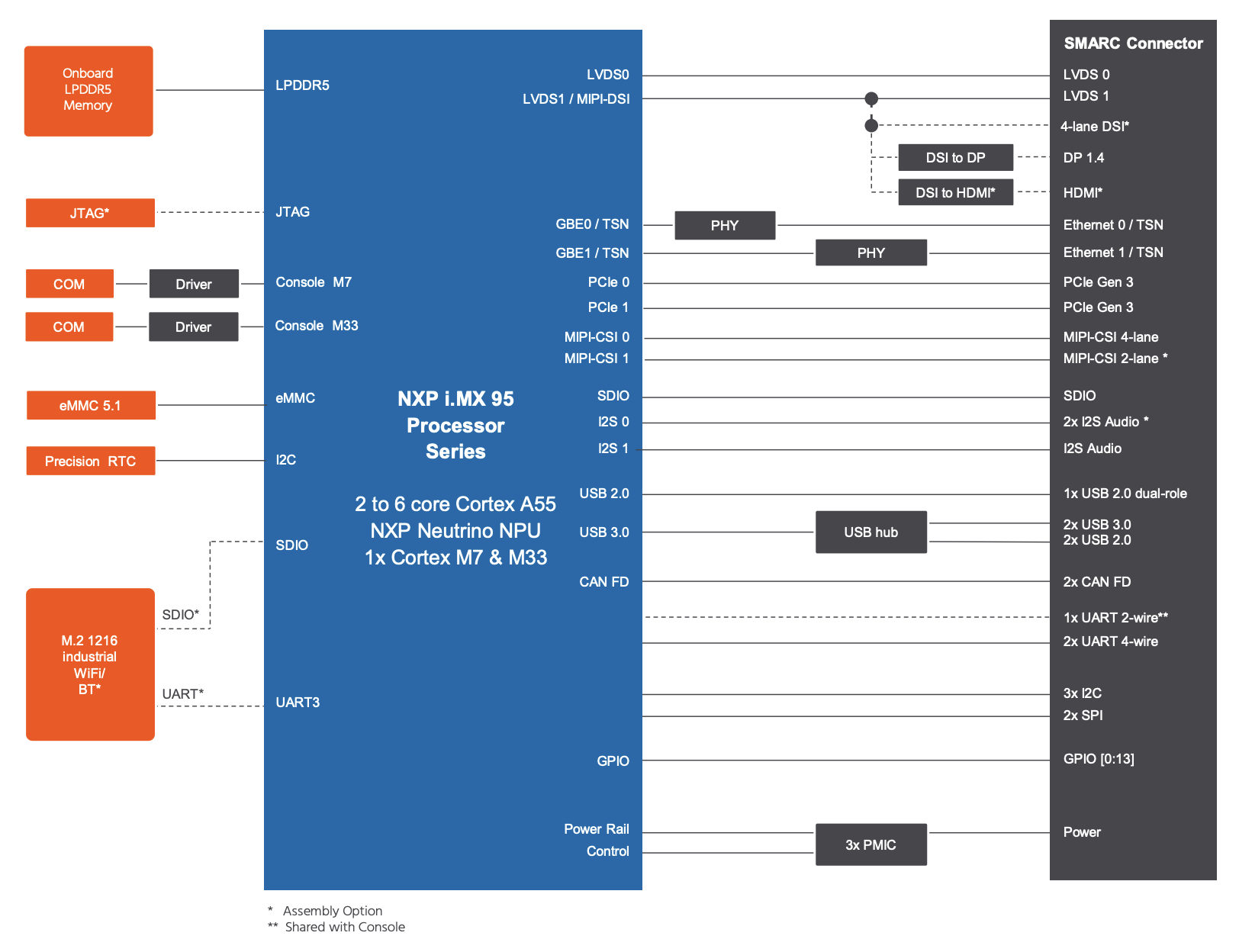

产品规格
| Item | Description |
| Formfactor | SMARC |
| CPU |
NXP i.MX 9596 (commercial) (6x ARM Cortex-A55 @ 2.0 GHz + 1x ARM Cortex-M7 + 1x ARM Cortex-M33 + eIQ Neutron NPU)
NXP i.MX 9596 (industrial) (6x ARM Cortex-A55 @ 1.8 GHz + 1x ARM Cortex-M7 + 1x ARM Cortex-M33 + eIQ Neutron NPU)
|
| DRAM |
Up to 16 GByte onboard LPDDR5 memory | up to 6400 MT/s | inline ECC
|
| Ethernet |
2x Gbit Ethernet with support for TSN | IEEE 1588
|
| I/O Interfaces |
1 x dual-role USB 2.0
2 x USB 2.0
2 x USB 3.0
1 x SDIO 3.0
2 x PCIe 3.0 1-lane
1 x I²C bus
SPI
1 x QSPI
Up to 3x UART (2x with Handshake)
2 x CAN FD
14 x GPIOs
optional soldered M.2 1216 WiFi 6/BT 5.3
|
| Mass storage | eMMC 5.1 up to 256 GByte |
| Graphics | Integrated in SoC | Arm® Mali™ 3D GPU G310 | 2D GPU supporting blend graphics overlays | OpenGL® ES 3.2 | Vulkan® 1.2 | OpenCL 3.0 |
| Item | Description |
| Security | NXP EdgeLock® 2GO key management services | Cryptographic Acceleration and Assurance Module | Resource Domain Controller | ARM® TrustZone® | High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG, SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096 and secure key storage | side channel attack resistance |
| Boot Loader |
U-Boot boot loader
|
| Operating Systems |
Android
Linux
Yocto
|
| Temperature |
Commercial : Operating 0°C to 60°C | Storage -20°C to 80°C
Industrial: Operating -40°C to +85°C | Storage -40°C to +85°C |
| Humidity |
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
|
| Video Interfaces |
1 x Dual channel 24-bit LVDS
1 x Display Port 1.4 1080p60 through MIPI-DSI to DisplayPort Bridge (shared with MIPI-DSI)
optional MIPI-DSI capable of supporting 4kp30 or 3840p60 shared with DisplayPort
1 x optional HDMI 2.0a through MIPI-DSI to HDMI bridge (shared with MIPI-DSI)
up to 2x MIPI-CSI 4-lanes
2 x Integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution (on selected processor SKU’s)
|
| Features |
Watchdog Timer
Cortex-M7 and Cortex-M33 console
optional JTAG debug interface
High Precision Real Time Clock
|
| AI & Deep Learning |
NXP eIQ® Neutron Neural Processing Unit (NPU) with up to 2 TOPS
NXP eIQ® ML Software Development Environment
|
| Size |
82 x 50 mm (3,23” x 1,97”)
|
订购资讯
| P/N | Product name | Description |
| 051600 | conga-SMX95/MX959-6C-8G-eMMC64 | SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 2 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and 64GB onboard eMMC. Commercial grade temperature range from 0°C to 60°C. |
| 051601 | conga-SMX95/MX959-6C-4G eMMC32 | SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 4GB onboard LPDDR5 memory and 32GB onboard eMMC. Commercial grade temperature range from 0°C to 60°C. |
| 051610 | conga-SMX95/i-MX959-6C-8G eMMC64 | SMARC module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM Cortex-A53 @ 1.6GHz +1x ARM Cortex-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range from -40°C to 85°C. |
| 051611 | conga-SMX95/i-MX959-6C-4G eMMC32 | SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 4GB onboard LPDDR5 memory and 32GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. |
| 051620 | conga-SMX95/i-MX959-6C-8G eMMC64 NX611 | SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and 64GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. With Wifi 6 / BT 5.3 module NX611. |
相关配件
| P/N | Product name | Description |
| 051650 | conga-SMX95/CSP-B | Passive cooling solution for SMARC module conga-SMX95 with NXP i.MX 95 lidded ARM processor. All standoffs are with 2.7mm bore hole. |
| 051651 | conga-SMX95/HSP-B | Heat spreader solution for SMARC module conga-SMX95 with NXP i.MX 95 lidded ARM processor. All standoffs are with 2.7mm bore hole. |
| 050060 | SMARC/CSA Adapter | Active cooling solution adapter for SMARC modules used in combination with module heat spreader. |
| 007010 | conga-SEVAL | Evaluation carrier board for SMARC modules. |
| 020750 | conga-SMC1/SMARC-ARM | 3.5’’ carrier board for congatec SMARC modules based on ARM architecture. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-SMX95
2024/11/05
