产品介绍

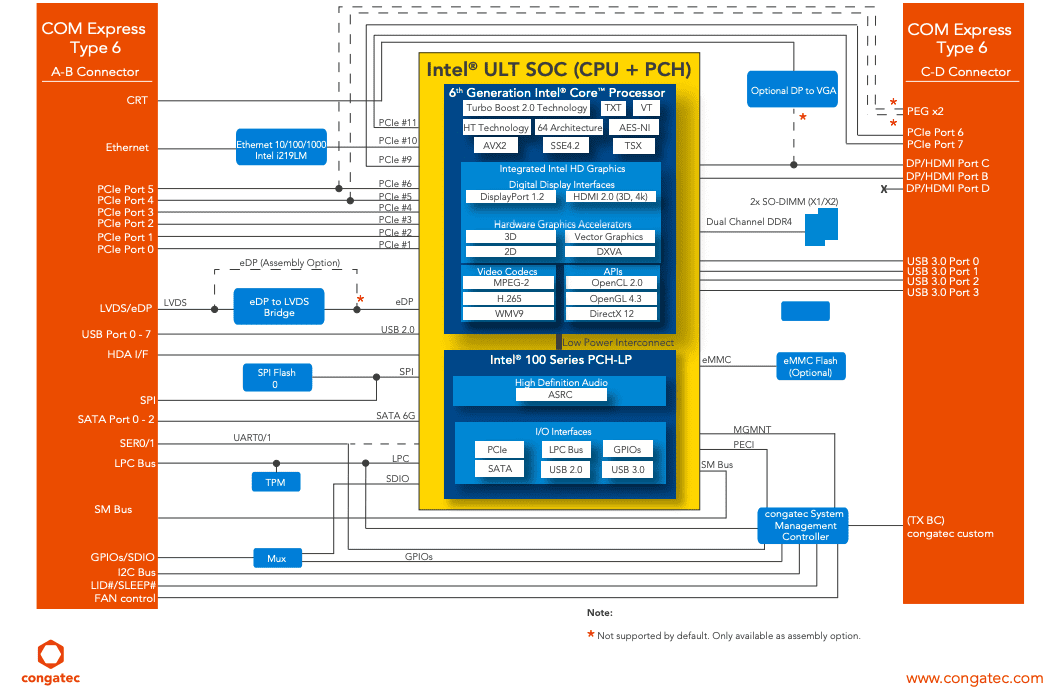

产品规格
| Item | Description |
| Formfactor | COM Express Compact |
| CPU |
Intel® Core™ i7-6600U (2 x 2.6 GHz, 4MB cache, 15W)
Intel® Core™ i5-6300U (2 x 2.4 GHz, 3MB cache, 15W)
Intel® Core™ i3-6100U (2 x 2.3 GHz, 3MB cache, 15W)
Intel® Celeron® 3955U (2 x 2.0 GHz, 2MB cache, 15W)
|
| DRAM | 2 Sockets, SO-DIMM DDR4 32GByte dual channel |
| Ethernet |
Intel® i219-LM GbE LAN Controller
|
| I/O Interfaces |
6 x PCI Express GEN 3.0 lanes
3 x Serial ATA Gen 3
4 x USB 3.0
8 x USB 2.0
1 x LPC bus
1 x I²C bus
2 x UART
|
| Graphics | Intel® Gen9 HD Graphics Engine with OpenCL 2.0, OpenGL 4.3 and DirectX12 (Windows 10) support | up to three independent displays: DisplayPort 1.2 | eDP 1.3 | VGA (optional) |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control |
| embedded BIOS Features |
AMI Aptio® 2.X (UEFI) firmware
8/16 MByte serial SPI firmware flash
|
| Item | Description |
| Security |
This congatec COM Express Compact board can be optionally equipped with a discrete ”Trusted Platform Module” (TPM).
It is capable of calculating efficient hash and RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels. |
| Power Management |
ACPI 4.0
|
| Operating Systems |
Microsoft® Windows® 10
Microsoft® Windows® 7
Linux
Microsoft® Windows® embedded Standard
Microsoft® Windows® 8.1
|
| Temperature |
Standard Operating: 0 to +60°C Storage: -20 to +80°C
|
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces |
2 x DDI / DisplayPort 1.2a with support for Multi-Stream Transport (MST), resolutions up to 4k
1 x eDP 1.3
1 x LVDS 2×24
1 x VGA (optional)
|
| Size | 95 x 95 mm (3,74″ x 3,74″) |
订购资讯
| P/N | Product name | Description |
| 045200 | TC170/i7-6600U | COM Express Type 6 Compact module with Intel® Core™ i7-6600U dual core processor with 2.6GHz up to 3.4GHz, 4MB Intel® Smart Cache , GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). |
| 045201 | TC170/i5-6300U | COM Express Type 6 Compact module with Intel® Core™ i5-6300U dual core processor with 2.4GHz up to 3.0GHz, 3MB Intel® Smart Cache , GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). |
| 045202 | TC170/i3-6100U | COM Express Type 6 Compact module with Intel® Core™ i3-6100U dual core processor with 2.3GHz, 3MB Intel® Smart Cache , GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). |
| 045203 | TC170/3955U | COM Express Type 6 Compact module with Intel® Celeron® 3955U dual core processor with 2.0GHz, 2MB Intel® Smart Cache, GT1 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). |
| 045208 | TC170/i7-6600U VGA | COM Express Type 6 Compact module with Intel® Core™ i7-6600U dual core processor with 2.6GHz up to 3.4GHz, 4MB Intel® Smart Cache , GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). Integrated DisplayPort to VGA converter. |
| 045209 | TC170/i5-6300U VGA | COM Express Type 6 Compact module with Intel® Core™ i5-6300U dual core processor with 2.4GHz up to 3.0GHz, 3MB Intel® Smart Cache , GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Skylake-U). Integrated DisplayPort to VGA converter. |
相关配件
| P/N | Product name | Description |
| 045230 | TC170/HSP-B | Standard Heatspreader for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. All standoffs are with 2.7mm bore hole. |
| 045231 | TC170/HSP-T | Standard Heatspreader for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. All standoffs are M 2.5 threaded. |
| 045232 | TC170/CSP-B | Passive cooling solution for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. All standoffs are with 2.7mm bore hole. |
| 045233 | TC170/CSP-T | Passive cooling solution for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. All standoffs are M2.5 threaded. |
| 045234 | TC170/CSA-B | Active cooling solution for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. Through hole mounting with bore hole standoffs Ø2.7mm, 15mm fins, 24mm overall cooling height and integrated 12V fan |
| 045235 | TC170/CSA-T | Active cooling solution for COM Express Compact modules conga-TC97, conga-TC170 and conga-TC175. All standoffs are M2.5 threaded, 15mm fins, 24mm overall cooling height and integrated 12V fan |
| 0065800 | conga-TEVAL | Evaluation carrier board for Type 6 COM Express modules |
| 0011115 | conga-LDVI/EPI | LVDS to DVI converter board for digital flat panels with onboard EEPROM |
| 400007 | COMe-carrier-socket-5 | Connector for COM-Express carrier boards, height 5mm, packing unit 4 pieces |
| 400004 | COMe-carrier-socket-8 | Connector for COM-Express carrier boards, height 8mm, packing unit 4 pieces |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-TC170
2016/01/11
Manual
User’s Guide for conga-TC170
2024/11/05
Manual
Post Code List
2015/06/15
