conga-TC675r
COM Express Type 6 Compact module based on 13th Gen Intel® Core™ embedded mobile processors (code name “Raptor Lake”)
- Intel® hybrid design combines Performance-cores with Efficient–cores
- Onsoldered LPDDR5x with up to 6400 MT/s
- PCI Express Gen 4 | up to USB 4
- Options for Industrial Temperature Range -40°C to +85°C
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Compact |
| CPU |
Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-13600HRE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
|
| DRAM | Up to 32 GB (optional 64GB) LPDDR5x with up to 6400 MT/s SDRAM | memory down | dual channel | IBECC |
| Ethernet |
2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|

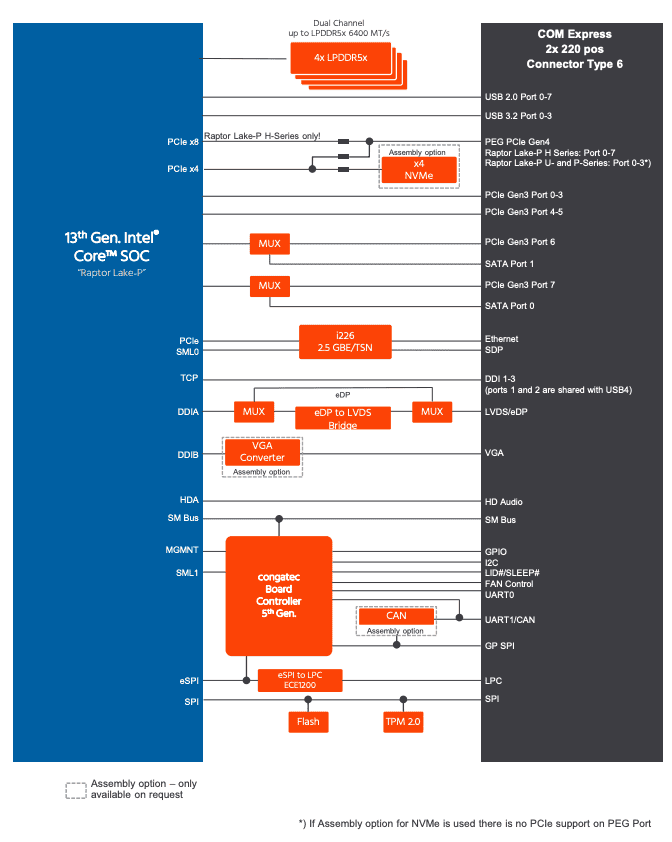

| I/O Interfaces |
Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P-and U-Series)
up to 8 PCIe Gen3
up to 2x USB4
4x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0
up to 2x SATA
up to 2x UART
CAN (opt.)
8 x GPIOs
SPI
LPC bus
SM-Bus
I²C bus
|
| Mass storage | NVMe x4 SSD (optional) |
| Graphics | Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 5.0a with battery support
|
| Operating Systems |
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Operation: -40°C to 85°C | Storage: -40°C to 85°C
|
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces |
Up to 3x DDI (2x shared with USB4) | LVDS or eDP| VGA (optional)
|
| Size | 95 x 95 mm (3,74″ x 3,74″) |
订购资讯
| P/N | Product name | Description |
| 0045300 | conga-TC675/i7-13800HE | COM Express Type 6 Compact module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 0045301 | conga-TC675/i7-1370PE | COM Express Type 6 Compact module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 0045302 | conga-TC675/i7-1365UE | COM Express Type 6 Compact module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 0045303 | conga-TC675/i5-13600HE | COM Express Type 6 Compact module based on Intel® Core™ i5-13600HE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 0045304 | conga-TC675/i5-1340PE | COM Express Type 6 Compact module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 0045305 | conga-TC675/i5-1335UE | COM Express Type 6 Compact module based on Intel® Core™ i5-1335UE processor with 2 P-cores 1.3GHz up to 4.5GHz Turbo and 8 E-cores 1.1GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 0045306 | conga-TC675/i3-13300HE | COM Express Type 6 Compact module based on Intel® Core™ i3-13300HE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 0045307 | conga-TC675/i3-1320PE | COM Express Type 6 Compact module based on Intel® Core™ i3-1320PE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 0045308 | conga-TC675/i3-1315UE | COM Express Type 6 Compact module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 0045309 | conga-TC675/U300E | COM Express Type 6 Compact module based on Intel® Processor U300E with 1 P-core 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 0045310 | conga-TC675/i7-13800HRE | COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) |
| 0045311 | conga-TC675/i7-1370PRE | COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 0045312 | conga-TC675/i7-1365URE | COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| 0045313 | conga-TC675/i5-13600HRE | COM Express Type 6 Compact module based on Intel® Core™ i5-13600HRE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C |Intel® code name Raptor Lake-P (H-Series) |
| 0045314 | conga-TC675/i5-1350PRE | COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 0045315 | conga-TC675/i5-1345URE | COM Express Type 6 Compact module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| 0045316 | conga-TC675/i3-13300HRE | COM Express Type 6 Compact module based on Intel® Core™ i3-13300HRE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) |
| 0045317 | conga-TC675/i3-1320PRE | COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 0045318 | conga-TC675/i3-1315URE | COM Express Type 6 Compact module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
相关配件
| P/N | Product name | Description |
| 049750 | conga-TC675/CSA-HP-B | Standard active cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 049751 | conga-TC675/CSA-HP-T | Standard active cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded. |
| 049752 | conga-TC675/CSP-HP-B | Standard passive cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole. |
| 049753 | conga-TC675/CSP-HP-T | Standard passive cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded. |
| 049754 | conga-TC675/HSP-HP-B | Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are with 2.7mm bore hole. |
| 049755 | conga-TC675/HSP-HP-T | Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are M2.5mm threaded. |
| 065810 | conga-TEVAL2 | Evaluation carrier board for COM Express Type6 rev3.0 modules. |
| 065820 | conga-TEVAL3/COMe 3.1 | Evaluation carrier board for COM Express Type6 rev3.1 modules. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-TC675r
2024/12/12
Manual
User’s Guide for conga-TC675r
2024/11/19
