产品介绍

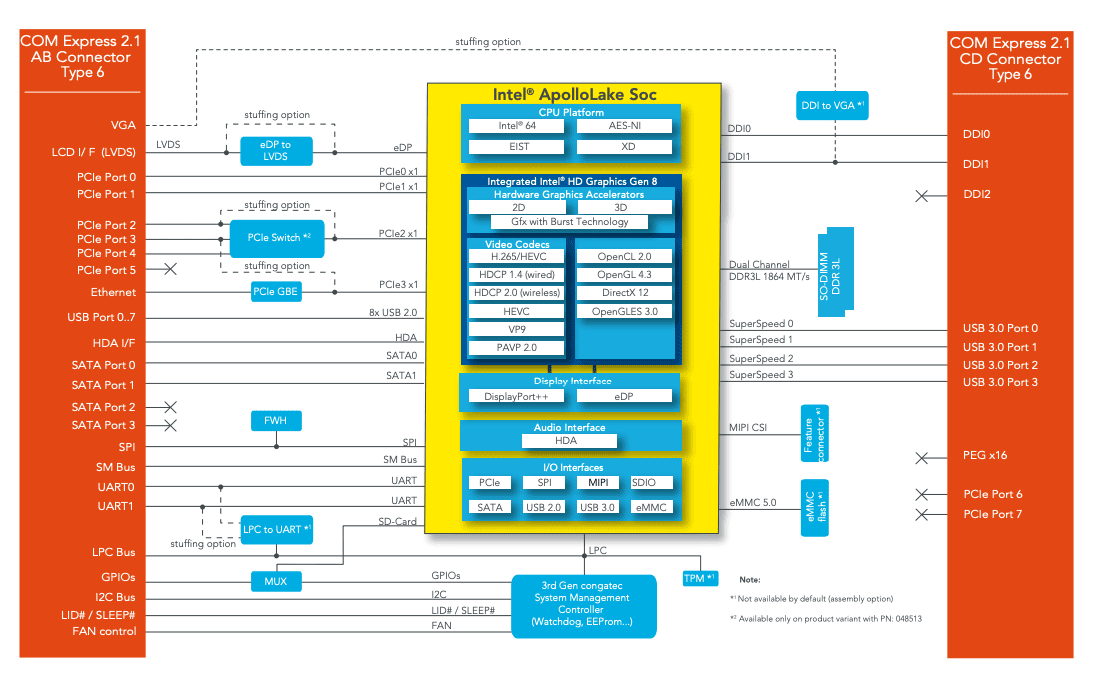

产品规格
| Item | Description |
| Formfactor | COM Express Compact |
| CPU |
Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W)
Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W)
Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W)
Intel® Celeron® N3350 (2 x 1.1 GHz, 2 MB L2 cache, 6W)
Intel® Pentium® N4200 (4 x 1.1 GHz, 2 MB L2 cache, 6W)
|
| DRAM | Dual channel DDR3L up to 1867 MT/s | 2x SO-DIMM | up to 8 GByte total memory |
| Ethernet |
Intel I210 (Industrial) /I211 (Commercial) Gigabit Ethernet Controller with SDP support
|
| I/O Interfaces |
5 x PCIe x1
UART
SDIO
I²C bus
SPI
LPC bus
2 x SATA III (6Gb/s)
8 x USB 2.0
4 x USB 3.0
2 x MIPI-CSI (optional)
|
| Graphics | Intel® HD Graphics Gen 9 | PAVP 2.0 | H.265/HEVC | VP9 | OpenCL 2.0 | OpenGL 4.3 | OpenGL ES 3.0 | DirectX12 | HDCP1.4 |
| congatec Board Controller | Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control |
| embedded BIOS Features |
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
AMI Aptio UEFI
|
| Item | Description |
| Security |
Trusted Platform Module (TPM) optional. Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator
|
| Power Management |
ACPI 5 .0 compliant, Smart Battery Management
|
| Operating Systems |
Microsoft® Windows® 10
Linux
|
| Temperature |
Commercial : Operating: 0 to +60°C Storage: -20 to +80°C Industrial : Operating: -40 to +85°C Storage: -45 to +85°C
|
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces |
Dual channel LVDS transmitter | support for flat panels with 2×24 bit data mapping up to a resolution of 1920×1200@60Hz
Up to 2x DisplayPort 1.2a (max. 3840×2160 @ 30Hz) | 1x eDP 1.3 (optional)
|
| Size | 95 x 95 mm (3,74″ x 3,74″) |
订购资讯
| P/N | Product name | Description |
| 048510 | conga-TCA5/i-E3950 | COM Express Compact module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 048511 | conga-TCA5/i-E3940 | COM Express Compact module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 048512 | conga-TCA5/i-E3930 | COM Express Compact module with Intel® Atom™ x5-E3930 dual core processor with 1.1GHz core frequency up to 1.8GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 048530 | conga-TCA5/N3350 | COM Express Compact module with Intel® Celeron™ N3350 dual core processor with 1.1GHz core frequency up to 2.4GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. |
| 048531 | conga-TCA5/N4200 | COM Express Compact module with Intel® Pentium® N4200 quad core processor with 1.5GHz core frequency up to 2.5GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. |
相关配件
| P/N | Product name | Description |
| 048555 | conga-TCA5/i-CSP-T | Passive cooling solution for COM Express Compact module conga-TCA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
| 048554 | conga-TCA5/i-CSP-B | Passive cooling solution for COM Express Compact module conga-TCA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
| 048551 | conga-TCA5/i-HSP-T | Standard heatspreader for COM Express Compact module conga-TCA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread. |
| 048550 | conga-TCA5/i-HSP-B | Standard heatspreader for COM Express Compact module conga-TCA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole. |
| 048557 | conga-TCA5/CSP-T | Passive cooling solution for COM Express Compact module conga-TCA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
| 048556 | conga-TCA5/CSP-B | Passive cooling solution for COM Express Compact module conga-TCA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
| 048553 | conga-TCA5/HSP-T | Standard heatspreader for COM Express Compact module conga-TCA5 with open silicon Intel Pentium and Celeron processor. All standoffs are M2.5mm thread. |
| 048552 | conga-TCA5/HSP-B | Standard heatspreader for COM Express Compact module conga-TCA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole. |
| 0065800 | conga-TEVAL | Evaluation carrier board for Type 6 COM Express modules |
| 0011115 | conga-LDVI/EPI | LVDS to DVI converter board for digital flat panels with onboard EEPROM |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-TCA5
2021/03/25
Manual
User’s Guide for conga-TCA5
2024/10/30
Manual
Post Code List
2015/06/15
Errata
Errata_congatec_xA5_designs
2018/08/21
