产品介绍
产品规格
| Item | Description |
| SPEC |
6x PCI Express x1, 1x Express Card, 1x PCI Express Graphics (PEG) x16, 1x Mini PCI Express
Gigabit Ethernet
2x USB 2.0, 4x USB 3.0, 1x USB client
High Definition Audio Codec
2x HDMI, 2x Display Port, 4x SATA, 1x DDI / SDVO Slot
2x COM, 1x LPT
1x GPIO/SDIO System speaker, Power button, Reset button, CMOS Battery.
LPC POST code display
CRT connector, LVDS interface
ATX connector,12V/GND banana jacks
|
| Temperature |
Operating: 0 .. +60°C | Storage: -20 .. +80°C
|
| Humidity |
Operating: 10 – 90% | Storage: 5 – 95%
|

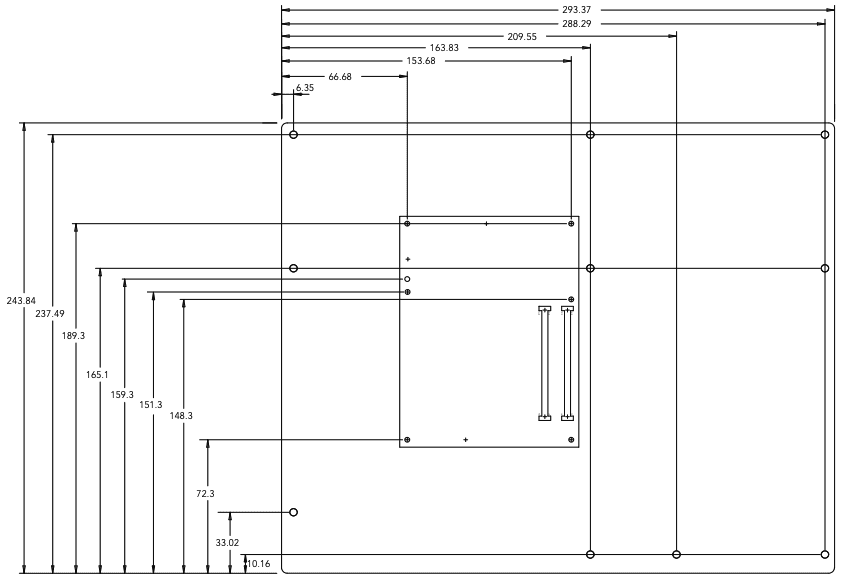

| Size |
294 x 244 mm
|
订购资讯
| P/N | Product name | Description |
| 065810 | conga-TEVAL2 | Evaluation carrier board for COM Express Type6 Rev. 3.0 modules. |
相关配件
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
conga-TEVAL
2020/05/06
Manual
User’s Guide for conga-TEVAL/COMe 3.0
2024/10/30
