conga-TR4
COM Express® Type 6 module based on AMD Ryzen Embedded V1000 Series SOC
- AMD’s Next Gen V1000 processor Series
- “Zen” core architecture with up to 4 cores
- Improved graphic performance with “Vega” GPU
- Up to 32GByte dual channel DDR4 3200MT/s memory
- TDP scalable down to 12W
- up to 4 x 4K DP / eDP
产品介绍
产品规格
订购资讯
相关配件
资讯下载

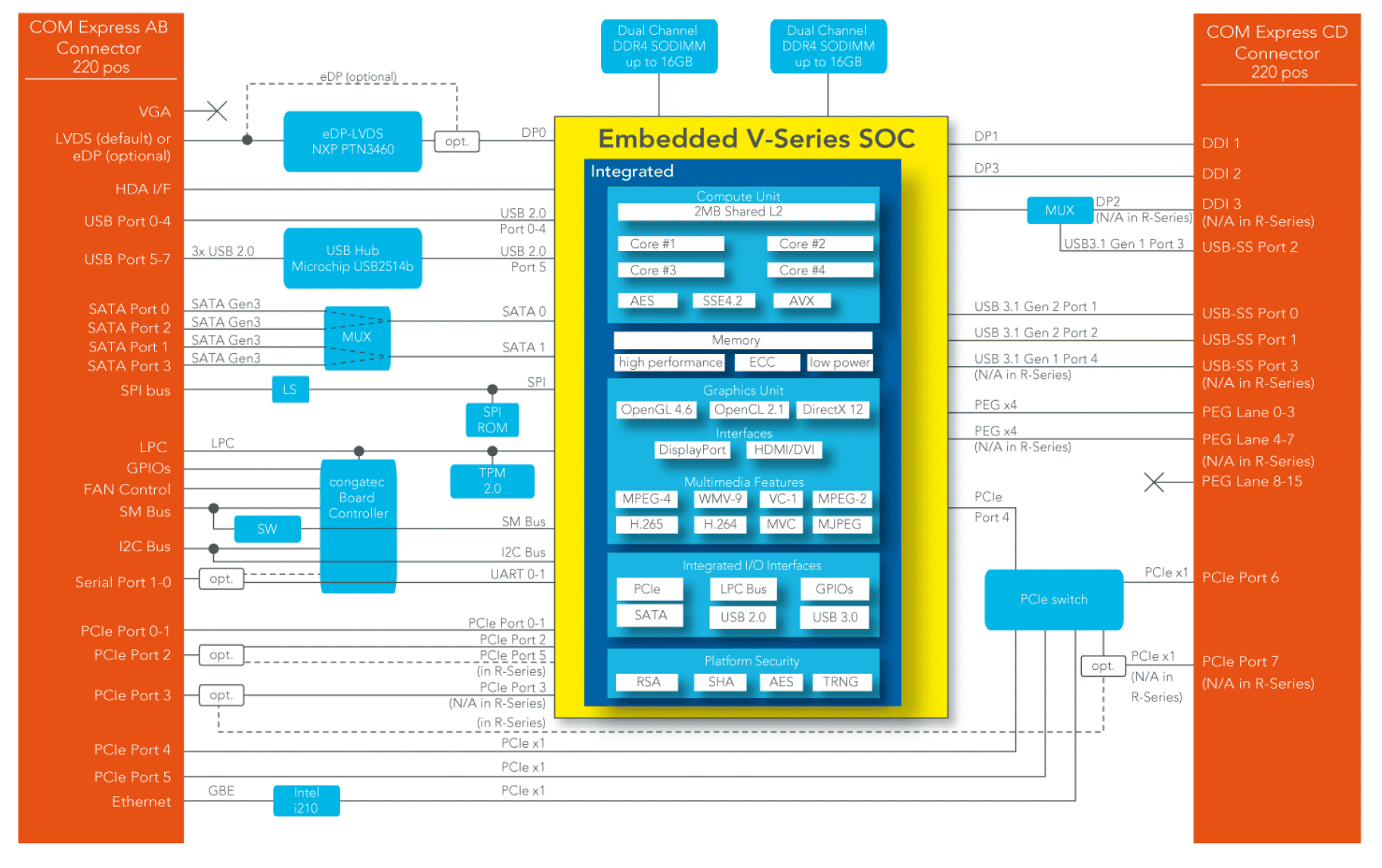

产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Compact |
| CPU |
AMD V1807B (4 x 3.35 GHz, 2MB L2 cache, 45W)
AMD V1756B (4 x 3.25 GHz, 2MB L2 cache, 45W)
AMD V1605B (4 x 2.0 GHz, 2MB L2 cache, 15W)
AMD V1202B (2 x 2.5 GHz, 1MB L2 cache, 15W)
AMD V1404I (4 x 2.0 GHz, 2MB L2 cache, 15W)
AMD R1606G (2 x 2.6 GHz, 1MB L2 cache, 15W)
AMD R1505G (2 x 2.4 GHz, 1MB L2 cache, 15W)
|
| DRAM | 2 Sockets, SO-DIMM DDR4 up to 32 GByte with ECC |
| Ethernet |
Gigabit Ethernet
|
| I/O Interfaces |
4 x PCI Express™ 3.0 lanes
SM-Bus
SPI
LPC bus
I²C bus (fast mode, 400 kHz, multi-master)
2 x SATA 6 Gb/s
8 x USB 2.0
2 x USB 3.1 Gen1
2 x USB 3.1 Gen2
1 x PEG 3.0 x8
4 x PCI Express™ 2.0 lanes
2 x UART
|
| Graphics | Integrated AMD Radeon™ Graphics supports DirectX 12 | OpenGL 4.6 and OpenCL™ 2.1 | up to 4 simultaneous Displays | Unified Video Decoder 6 (H.265, H.264, MVC, MPEG4, MPEG2, VC-1, WMV and MJPEG) Video Compression Engine 3.1 (dual, H.264, SVC) |
| congatec Board Controller |
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control
|
| embedded BIOS Features |
AMI Aptio® 2.X (UEFI) firmware
8 MByte serial SPI firmware flash
|
| Item | Description |
| Security |
The conga-TR4 offers a discrete TPM 2.0 (Infineon SLB9665).
This TPM includes coprocessors to calculate efficient hash and RSA algorithms with key lengths up to 2048 bits as well as a real random number generator. Security sensitive applications like gaming and e-commerce will benefit also with improved authentication, integrity and confidence levels. The conga-TR4 also offers AMD Secure Processor™. |
| Power Management |
ACPI 5 .0 compliant, Smart Battery Management
|
| Operating Systems |
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise (64bit only)
Linux
|
| Temperature |
Commercial : Operating: 0 to +60°C | Operating industrial: -40 .. +85°C | Storage: -20 to +80°C
|
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Size | 95 x 125 mm (3.74″ x 4.92″) |
订购资讯
| P/N | Product name | Description |
| 041600 | conga-TR4/V1807B | COM Express Type 6 Basic module based on AMD embedded V-Series V1807B 4-core processor with 3.35 GHz up to 3.8 GHz turbo boost, 2MB L2 Cache and dual channel DDR4 3200MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 11 CU. |
| 041601 | conga-TR4/V1756B | COM Express Type 6 Basic module based on AMD embedded V-Series V1756B 4-core processor with 3.25 GHz up to 3.6 GHz turbo boost, 2MB L2 Cache and dual channel DDR4 3200MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 8 CU. |
| 041602 | conga-TR4/V1605B | COM Express Type 6 Basic module based on AMD embedded V-Series V1605B 4-core processor with 2.0 GHz up to 3.6 GHz turbo boost, 2MB L2 Cache and dual channel DDR4 2400MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 8 CU. |
| 041603 | conga-TR4/V1202B | COM Express Type 6 Basic module based on AMD embedded V-Series V1202B 2-core processor with 2.3 GHz up to 3.2 GHz turbo boost, 1MB L2 Cache and dual channel DDR4 2400MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 3 CU. |
| 041603 | conga-TR4/i-V1404I | COM Express Type 6 Basic module based on AMD embedded V-Series V1404B 4-core processor with 1.6* | 2.0 GHz up to 2.8* | 3.6 GHz turbo boost, 2MB L2 Cache and dual channel DDR4 2400MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 8 CU. |
| 041620 | conga-TR4/R1606G | COM Express Type 6 Basic module based on AMD embedded R-Series R1606G 2-core processor with 2.6 GHz up to 3.5 GHz turbo boost, 1MB L2 Cache and dual channel DDR4 2400MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 3 CU. |
| 041521 | conga-TR4/R1505G | COM Express Type 6 Basic module based on AMD embedded R-Series R1505G 2-core processor with 2.4 GHz up to 3.3 GHz turbo boost, 1MB L2 Cache and dual channel DDR4 2400MT/s memory interface (formerly Great Horned Owl). Features AMD Radeon™ Vega integrated graphics core with 3 CU. |
相关配件
| P/N | Product name | Description |
| 041651 | conga-TR4/HSP-HP-B | Standard heatspreader for high performance COM Express module conga-TR4 with integrated heat pipes. All standoffs are with 2.7mm bore hole. |
| 041652 | conga-TR4/HSP-HP-T | Standard heatspreader for high performance COM Express module conga-TR4 with integrated heat pipes. All standoffs are M2.5mm thread. |
| 041653 | conga-TR4/CSP-HP-B | Standard passive cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins and 20mm overall heat sink height. All standoffs are with 2.7mm bore hole. |
| 041654 | conga-TR4/CSP-HP-T | Standard passive cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins and 20mm overall heat sink height. All standoffs are M2.5mm thread. |
| 041655 | conga-TR4/CSA-HP-B | Standard active cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins, 20mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 041656 | conga-TR4/CSA-HP-T | Standard active cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins, 20mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread. |
| 0065800 | conga-TEVAL | Evaluation carrier board for Type 6 COM Express modules |
| 0011115 | conga-LDVI/EPI | LVDS to DVI converter board for digital flat panels with onboard EEPROM |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-TR4
2024/10/30
Manual
User’s Guide for conga-TR4
2024/08/14
Manual
Post Code List
2015/06/15
