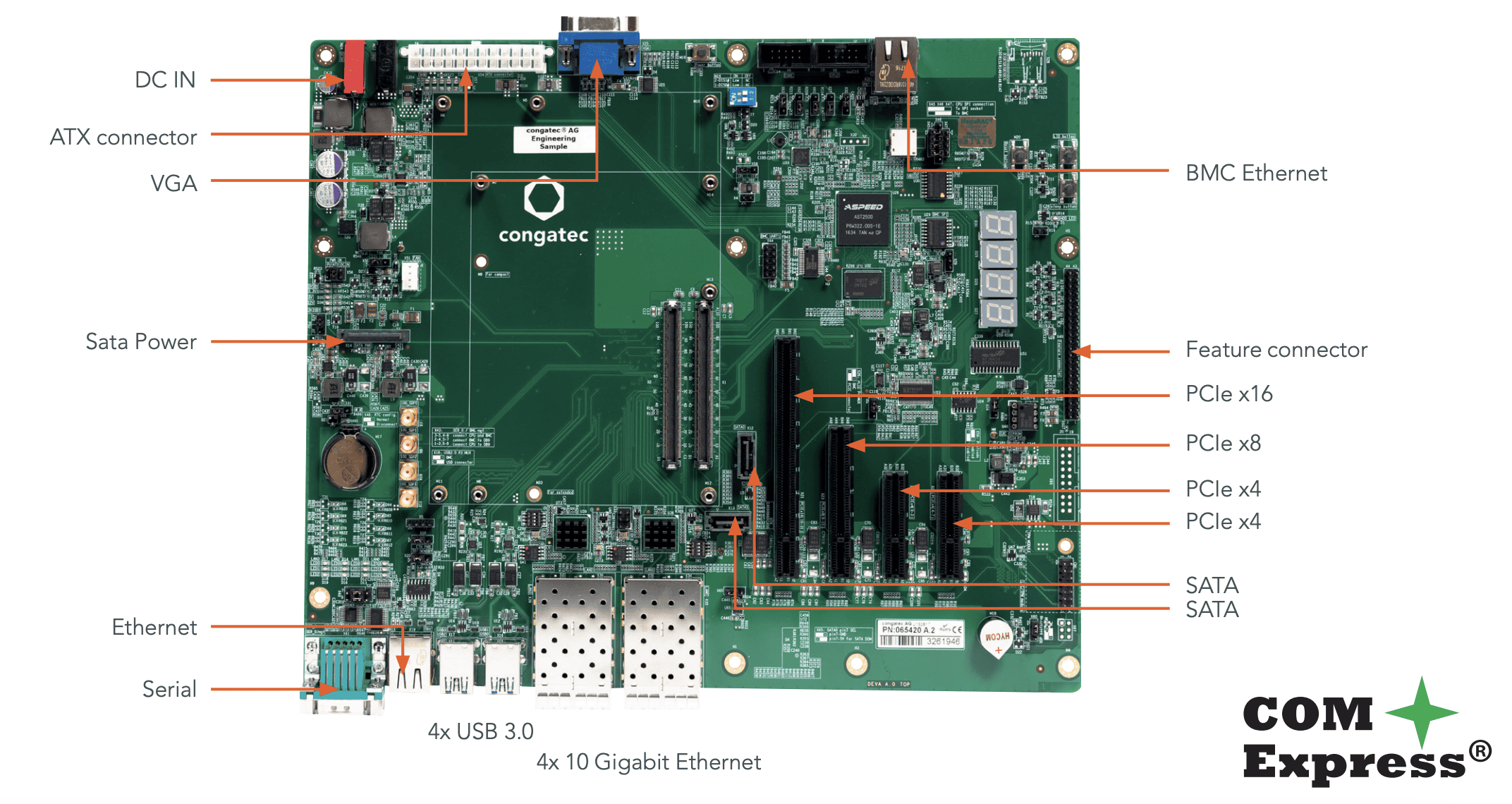

conga-X7EVAL

Evaluation Carrier Board for COM Express Type 7

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

产品介绍

产品规格

订购资讯

相关配件

资讯下载

恩比克科技(东莞)有限责任公司

联络资讯
广东省东莞市寮步镇仁居路1号松湖智谷研发中心4栋 901室
+86 769-23078291
info@enbik.tw

联系我们

若您有任何产品及解决方案的需求，或是各种技术问题，欢迎直接填写e-mail到我们的客服信箱，我们将尽快为您回覆，感谢您的支持与爱护。

info@enbik.tw

info@enbik.tw

Item	Description
Ethernet	4x 10 Gigabit Ethernet SFP+ \| 1x Gbe RJ45
Internal Connectors	32x PCIe lanes (1x PCIe (3.0) x16 \| 1x PCIe(3.0)x8 \| 5th lane shared with BMC \| 2x PCIe (3.0) x4) 2x SATA Gen3 1x LPC header 1x I²C Bus \| 1x SM Bus \| 1x GPIO 1x FAN control
External Connectors	4x USB 3.0/2.0 \| 4th USB2.0 shared with BMC \| 1x VGA connecting DB-15 \| 2x COM port from module
Baseboard Management Controller	1x VGA
Buttons	Power button \| Reset button \| Sleep button \| LID button
Postcode	4x 7-Segment Postcode LEDs connected to GP_I2C bus
Power Input	ATX Power Supply \| 12V/GND banana jacks
Temperature	Operating Temp.: 0°C … +60°C Storage Temp.: -20°C … +70°C
Humidity	Operating: 10 – 90% r. H. non cond. \| Storage: 5 – 95% r. H. non cond.
Size	294 x 244 mm (11.5” x 9.6”)

P/N	Product name	Description
065420	X7EVAL	Evaluation Carrier Board for COM Express Type 7 modules with four 10GbE SFP+ fiber/copper ports. The carrier features an Aspeed AST2500 Board Management Controller (BMC). Commercial temperature range from 0°C to 60°C.
065421	X7EVAL/industrial	Evaluation Carrier Board for COM Express Type 7 modules with four 10GbE SFP+ fiber/copper ports. No BMC. Industrial temperature range from -40°C to 85°C.
