RugCon-RV2-T1
恩比克RugCon-RV2-T1，小型强固边缘计算电脑，可搭配英特尔® 第14/13/12代酷睿 i7/i5/i3低功耗高效能15/28瓦处理器，支持3个RJ45带锁扣网口并可选配PoE供电，6个串口及6个USB口，8个隔离DIO，多组M.2插槽支持5G/4G/LTE/WIFI/BT通讯模组，接口螺丝锁附有效抗震，车辆点火开关及远端开关机控制，1组12V直流电源输出
- 3x 网口(RJ45), 可选支持2个PoE网口供电模组
- 6个串口支持(其中4x RS232/422/485, 2x RS232)
- 6个USB口 ( 其中支持2个USB3)
- 1组音频输入输出(Mic In/Line Out)
- 4通道隔离DI，4通道隔离DO
- 2 路独立显示 (DP/DVI-D)
- 2x M.2 2280 SATAIII 用于 SSD安装,支持Raid 0/1保护
- 1xM.2 2242/3052 B key带 SIM 支持4G/5G
- 1x Full Size Mini-PCIe带 SIM支持4G/5G
- 3x M.2 Key E Type 2230 for WIFI/BT/GPS
- 可选支持1x M.2 2280 Key M(PCIe x4)可用于 AI加速卡或NVME高速SSD安装
- DC In 6~48 V 宽电压输入
- 支持 1路 DC Out 12V/1A 电源输出
- Ignition车载电源点火开关
- Remote 远端开关
- 可选安装MF2A MXM GPU AI算力盒
- 产品类别： 强固型工业电脑, 紧凑型强固边缘计算平台

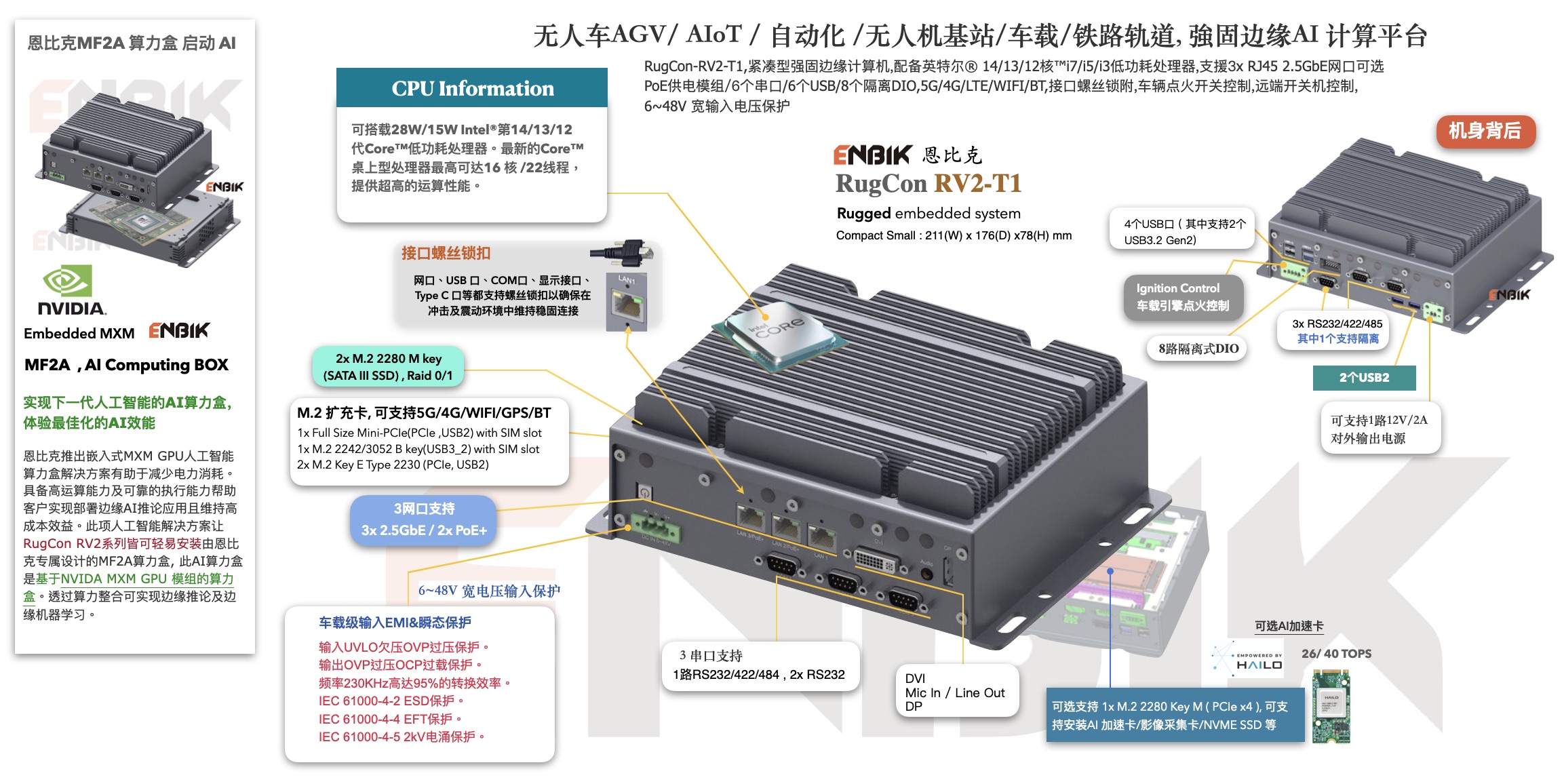

恩比克 RugCon-RV2-T1仅宽21.1厘米，结合了坚固的外壳、低功耗、高效能计算能力和在小尺寸下精确的I/O设计，特别适用于机器视觉、AGV/AMR、车载计算机、机器人控制和自动化控制，以及各种不同空间，在有限的电源有限的应用场所和各种恶劣和极端边缘环境。该系统还在千兆乙太网、USB等I/O上具有螺丝锁机制，以保证在冲击/振动情况下的连线。
RugCon RV2-T1是一款紧凑型强固人工智能加速边缘计算系统，搭载英特尔®酷睿低功耗高效能i7/i5/i3处理器。 配备3个2.5 GbE（2x PoE+可选）、4个RS232/422/485、2个RS232、6个USB、8个隔离DIO、5个M.2通讯扩充套件插槽和其他丰富和必要的介面。 透过M.2 2280 PCIE x4扩充套件插槽，它可用于安装人工智能加速卡或高速NVME SSD。在电源输入的部分提供6~48V宽压电压输入保护并可支援车辆电源点火开关及远端开关机控制,另外提供一组 12V 直流电源输出，可用于边缘端周边设备的直接协助供电。
在AI的部分, 恩比克RV2-T1支援MXM GPU算力模组，它可以灵活整合EBNIK恩比克自主研发的 MF2A MXM GPU AI算力盒，以提高AI边缘深度学习和推理能力并具备极佳的边缘AI部署成本效益。
| IO Interface | ||
| USB |
6 |
3x USB 3.2 Gen2x1(10Gbps)/USB 2.0,
3x USB 2.0 |
| Display |
2 |
1x DVI-D (1920 x 1200) , 1x DP(4096x 2304) |
| Audio |
1 |
1x Mic-In , 1x Line Out |
| LAN |
5 |
1x 2.5 GbE with TSN support (i226),
2x 2.5 GbE(i226), 2x Optional PoE+ |
| COM |
6 |
1x Isolated RS232/422/485, 3x RS232/422/285, 2x RS232 |
| CAN |
0 |
N/A |
| DIO |
8 |
4 Channel isolated DI, 4 Channel isolated DO |
| Storage | ||
| M.2 |
2 |
2x M.2 2280 SATA, support Raid 0/1 |
| 2.5” |
0 |
N/A |
| On Board Expansion | ||
| Mini-PCIe
M.2 Expansion |
5 |
1x Full Size Mini-PCIe with SIM supporting 4G/5G/LTE
1x M.2 2242/3052 B key with SIM supporting 5G/LTE 3x M.2 Key E Type 2230 for BT/GPS |
| M.2 2280 M key |
1 |
Optional support 1x M.2 2280 Key M ( PCIe x4 ), Support AI acceleration card/image capture card/NVME SSD, etc. |
| Mechanical | ||
| Mechanical | Dimension : 211(W) x 176(D) x 78(H) mm
Weight : 2.35 kg Mounting : Wall Mount |
|
| Mechanical | ||
| AI BOX | Support installing MF1A, this is ENBIK AI BOX which equipped with MXM GPU AI Card | |
| Environmental | ||
| Operating Temp. | -25°C ~ 70°C
-40°C ~ 85°C ( Extended) |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity | 0%~90% , non-condensing | |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 514.8, Category 4 |
|
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 516.8, Procedure I |
|
| EMC | E-Mark, EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55035 |
|
| Power |
| 1x Power Button
1x 3-pin pluggable terminal block for 6~48V DC Input , 1x 4-pin pluggable terminal block forIgnition control and Remote Control 1x 2-pin pluggable terminal block for12V/1A DC output |
| Warranty |
| 3 Year Warranty |
| Intel® 14th (15W) | Intel® 13th (15W) | Intel® 12th (15W) | ||||||||||||
| CPU | Ultra 7-155U | Ultra 7-125U | i7-1365URE | i7-1365UE | i5-1335UE | i3-1315UE | i7-1365U | i7-1355U | i5-1335U | i3-1315U | i7-1265U | i7-1255U | i5-1235U | i3-1215U |
| DDR | DDR5 (Max. 96 GB) | DDR5 ( Max. 64 GB) | ||||||||||||
| Cores / Threads | 12 C / 14 T | 12 C / 14 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T |
| P Turbo | up to 4.8GHz | up to 4.3GHz | up to 4.9GHz | up to 4.9GHz | up to 4.5GHz | up to 4.5GHz | up to 5.2GHz | up to 5GHz | up to 4.6GHz | up to 4.5GHz | up to 4.8GHz | up to 4.7GHz | up to 4.4GHz | up to 4.4GHz |
| Intel® 14th (28W) | Intel® 13th/12th (28W) | |||||||
| CPU | Ultra 7-155H | Ultra 7-125H | i7-1370PE | i5-1350PE | i5-1340PE | i3-1320PE | i5-1350P | i5-1250P |
| DDR | DDR5 (Max. 96 GB) | DDR5 ( Max. 64 GB) | ||||||
| Cores / Threads | 16 C / 22 T | 14 C / 18 T | 14 C / 20 T | 12 C / 16 T | 12 C / 12 T | 8 C / 12 T | 12 C / 16 T | 12 C / 16 T |
| P Turbo | up to 4.8GHz | up to 4.3GHz | up to 4.8GHz | up to 4.6GHz | up to 4.5GHz | up to 4.5GHz | up to 4.7GHz | up to 4.4GHz |
