RugCon-RV2-T2F

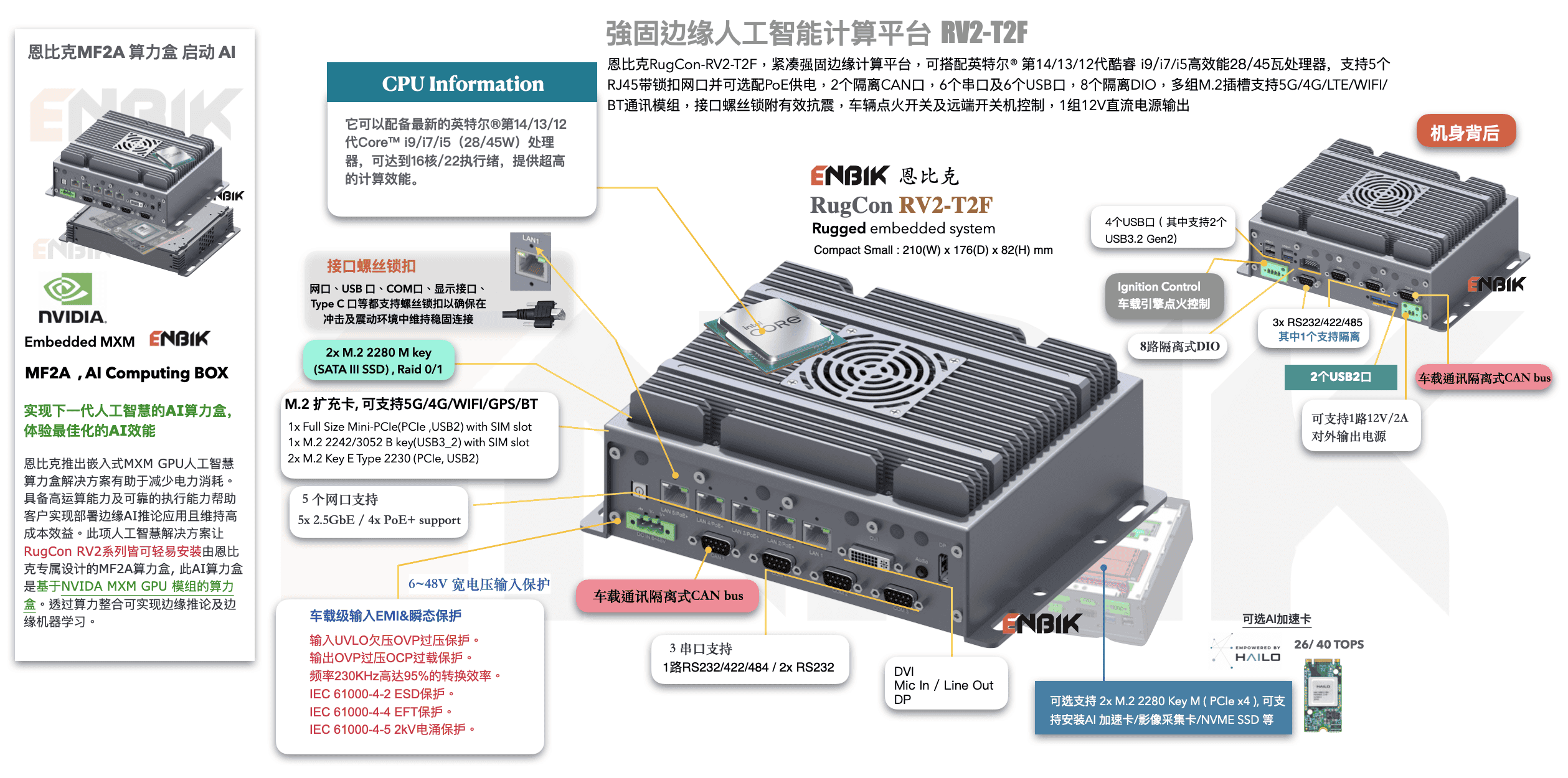

恩比克RugCon-RV2-T2F，紧凑强固边缘计算平台，可搭配英特尔® 第14/13/12代酷睿 i9/i7/i5高效能28/45瓦处理器，支持5个RJ45带锁扣网口并可选配PoE供电，2个隔离CAN口，6个串口及6个USB口，8个隔离DIO，多组M.2插槽支持5G/4G/LTE/WIFI/BT通讯模组，接口螺丝锁附有效抗震，车辆点火开关及远端开关机控制，1组12V直流电源输出
- Intel® 14th/13th/12th Core™ i9/i7/i5 (P/H Series) 28W/45W)
- 5x 网口(RJ45), 可选支持2个PoE网口供电模组
- 2个隔离CAN口
- 6个串口支持(其中4x RS232/422/485, 2x RS232)
- 6个USB口 ( 其中支持2个USB3)
- 1组音频输入输出(Mic In/Line Out)
- 4通道隔离DI，4通道隔离DO
- 2 路独立显示 (DP/DVI-D)
- 2x M.2 2280 SATAIII 用于 SSD安装,支持Raid 0/1保护
- 1xM.2 2242/3052 B key带 SIM 支持4G/5G
- 1x Full Size Mini-PCIe带 SIM支持4G/5G
- 3x M.2 Key E Type 2230 for WIFI/BT/GPS
- 可选支持2x M.2 2280 Key M(PCIe x4)可用于 AI加速卡或NVME高速SSD安装
- DC In 6~48 V 宽电压输入
- 支持 1路 DC Out 12V/1A 电源输出
- Ignition车载电源点火开关
- Remote 远端开关
- 可选安装MF2A MXM GPU AI算力盒
- 产品类别： 强固型工业电脑, 高性能强固边缘计算平台
恩比克 RugCon-RV2-T2Ｆ仅21.1厘米宽，结合了坚固的外壳、低功耗、高效能计算能力和小尺寸下精确的I/O设计，特别适用于机器视觉、AGV/AMR、车载计算机、机器人控制和自动化控制,以及各种不同狭窄空间,有限的电源供应应用场所和各种恶劣和极端边缘环境。该系统还在千兆乙太网、USB等I/O上具有螺丝锁机制，以保证在冲击/振动情况下的连线。
恩比克RugCon RV2-T2F是一款低功耗、经济的人工智慧加速边缘计算系统，搭载英特尔®酷睿低功耗高效能i9/i7/i5(28W/45W)处理器。 配备5个2.5 GbE（4x PoE+可选），2个隔离CAN，4个RS232/422/485，2个RS232，6个USB，8个隔离DIO，5个M.2通讯扩充套件插槽和其他丰富和必要的介面。 透过M.2 2280 PCIE x4扩充套件插槽，它可用于安装人工智慧加速卡或高速NVME SSD。在电源输入的部分提供6~48V宽压电压输入保护并可支援车辆电源点火开关及远端开关机控制,另外提供一组 12V 直流电源输出，可用于边缘端周边设备的直接协助供电。
在AI的部分, 恩比克RV2-T2F支援MXM GPU算力模组，它可以灵活整合EBNIK恩比克自主研发的 MF2A MXM GPU AI算力盒，以提高AI边缘深度学习和推理能力并具备极佳的边缘AI部署成本效益。
| IO Interface | ||
| USB |
6 |
3x USB 3.2 Gen2x1(10Gbps)/USB 2.0,
3x USB 2.0 |
| Display |
2 |
1x DVI-D (1920 x 1200) , 1x DP(4096x 2304) |
| Audio |
1 |
1x Mic-In , 1x Line Out |
| LAN |
5 |
1x 2.5 GbE with TSN support,
Option for 4x 2.5 GbE with PoE+ |
| COM |
6 |
1x Isolated RS232/422/485, 3x RS232/422/285, 2x RS232 |
| CAN |
2 |
2x CAN (Isolation) |
| DIO |
8 |
4 Channel isolated DI, 4 Channel isolated DO |
| Storage | ||
| M.2 |
2 |
2x M.2 2280 SATA, support Raid 0/1 |
| 2.5” |
0 |
N/A |
| On Board Expansion | ||
| Mini-PCIe
M.2 Expansion |
5 |
1x Full Size Mini-PCIe with SIM supporting 4G/5G/LTE
1x M.2 2242/3052 B key with SIM supporting 5G/LTE 3x M.2 Key E Type 2230 for BT/GPS |
| M.2 2280 M key |
2 |
Optional support 2x M.2 2280 Key M ( PCIe x4 ), Support AI acceleration card/image capture card/NVME SSD, etc. |
| Mechanical | ||
| Mechanical | Dimension : 211(W) x 176(D) x 78(H) mm
Weight : 2.35 kg Mounting : Wall Mount |
|
| Mechanical | ||
| AI BOX | Support installing MF1A, this is ENBIK AI BOX which equipped with MXM GPU AI Card | |
| Environmental | ||
| Operating Temp. | -25°C ~ 70°C
-40°C ~ 85°C ( Extended) |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity | 0%~90% , non-condensing | |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 514.8, Category 4 |
|
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 516.8, Procedure I |
|
| EMC | E-Mark, EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55035 |
|
| Power |
| 1x Power Button
1x 3-pin pluggable terminal block for 6~48V DC Input , 1x 4-pin pluggable terminal block forIgnition control and Remote Control 1x 2-pin pluggable terminal block for12V/1A DC output |
| Warranty |
| 3 Year Warranty |
|
Intel® 13th Core™ (45W) |
Intel® 12th Core™ (45W) |
|||||||||
|
CPU |
I9-13900H |
I7-13700H |
I5-13600H |
I7-13800HE |
I5-13600HE |
I9-12900H |
I7-12700H |
I5-12600H |
I7-12800HE |
I5-12600HE |
|
DDR |
DDR5 : up to 4800MT/s ( Max. 64 GB) |
|||||||||
|
Cores / Threads |
14 C / 20 T |
14 C / 20 T |
12 C / 16 T |
14 C / 20 T |
12 C / 16 T |
14 C / 20 T |
14 C / 20 T |
12 C / 16 T |
14 C / 20 T |
12 C / 16 T |
|
P Turbo |
up to 5.4GHz |
up to 5.0GHz |
up to 4.8GHz |
up to 5.0GHz |
up to 4.8GHz |
up to 5.0GHz |
up to 4.7GHz |
up to 4.5GHz |
up to 4.6GHz |
up to 4.5GHz |
