RugCon-RVS-T1

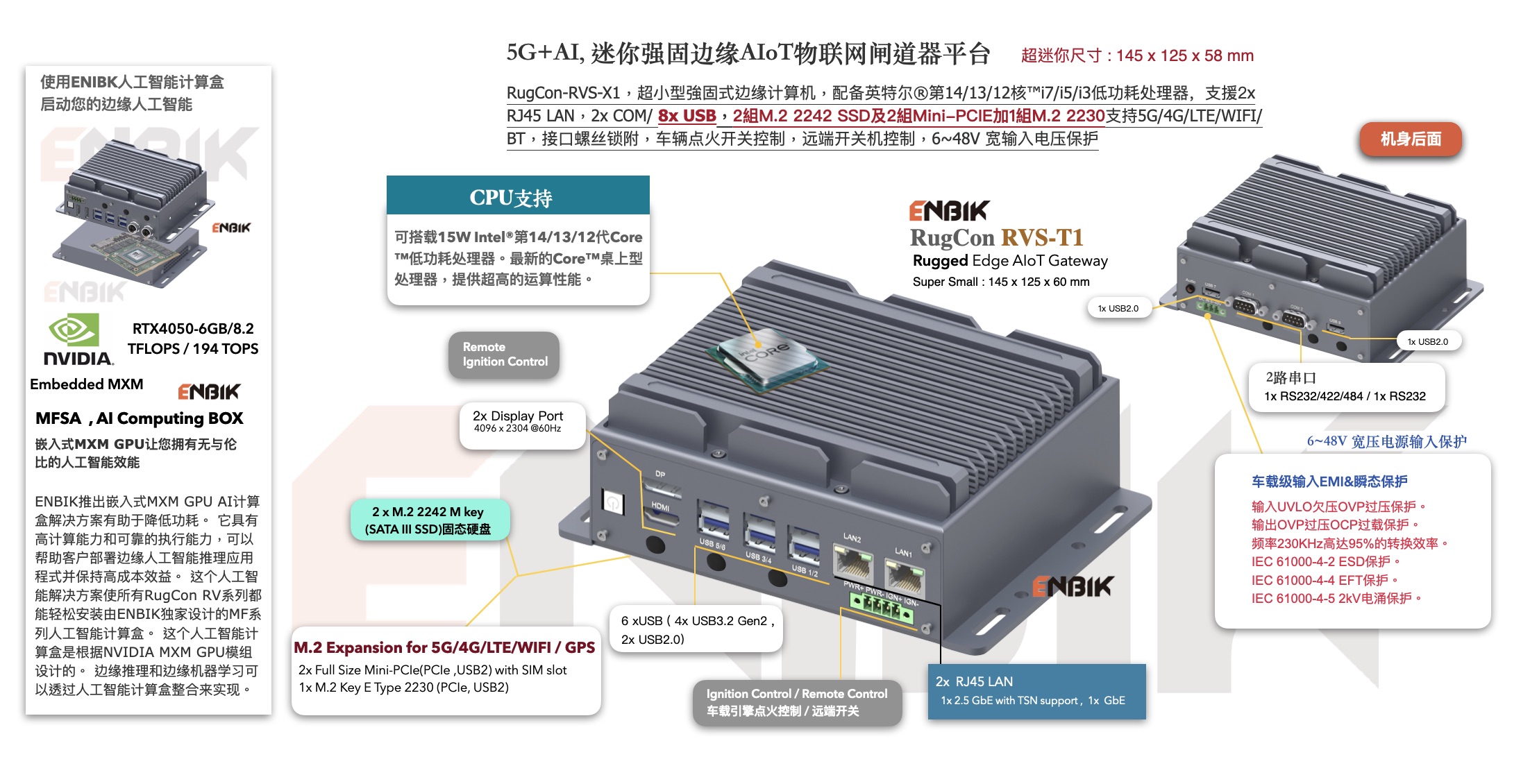

恩比克RugCon-RVS-T1，迷你强固边缘计算电脑，可搭配英特尔® 第14/13/12代酷睿 i7/i5/i3低功耗高效能15瓦处理器，支持2个RJ45网口，2个串口/8个USB口，2组Miini-PCIE加1组M.2 2230插槽支持5G/4G/LTE/WIFI/BT通讯模组，车辆点火开关及远端开关机控制

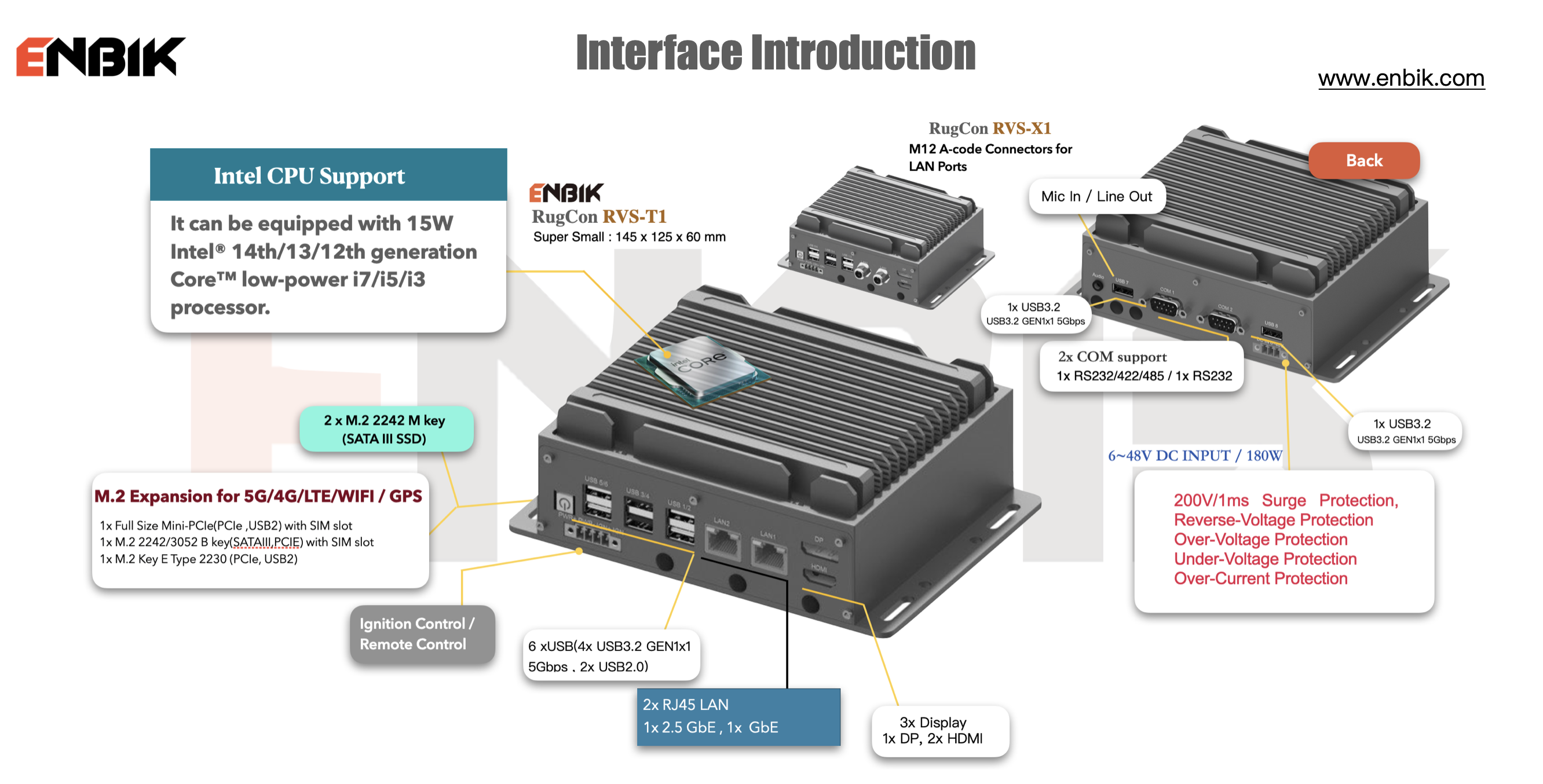

- 2x RJ45网口, (1x 2.5GbE, 1x GbE)
- 2个串口支持(其中1x RS232/422/485, 1x RS232)
- 8个USB口 ( 其中支持4个USB3.2 Gen2)
- 1组音频输入输出(Mic In/Line Out)
- 2 路独立显示 (DP/HDMI)
- 2x M.2 2242 SATAIII 用于 SSD安装
- 2x Full Size Mini-PCIe带 SIM支持4G/5G
- 1x M.2 Key E Type 2230 for WIFI/BT/GPS
- DC In 6~48 V 宽电压输入
- Ignition车载电源点火开关
- Remote 远端开关
- 可选安装MFSA MXM GPU AI算力盒
- 产品类别： 强固型工业电脑, 迷你强固边缘计算平台
ENBIK RugCon-RVS-T1只有145毫米宽，结合了坚固的防水外壳、低功耗、高效能处理器和精确的I/O设计，尺寸小。 它特别适用于边缘AIoT、机器视觉、AGV/AMR、车载计算机、机器人控制和自动化控制，以及空间有限、电源供应有限的应用，以及各种恶劣和极端边缘环境。
RugCon RVS-T1是一款配备英特尔®酷睿低功耗高效能处理器的人工智能加速边缘计算系统。 配备2个RJ45网口、1个 RS232/422/485、1个RS232、8个USB(其中4个支持USB3.2)、2个 Mini-PCIe和1x M.2 2230插槽用于5G/4G/LTE/WIFI/BT通讯模组。此外RVS-T1还具备2个 M.2 2242 SATAIII插槽，可以同时安装2个SSD并执行Raid 0/1保护。
在AI的部分, 恩比克RVS-T1支援MXM GPU算力模组，它可以灵活整合EBNIK恩比克自主研发的 MFSA MXM GPU AI算力盒，以提高AI边缘深度学习和推理能力并具备极佳的边缘AI部署成本效益。
| IO Interface | ||
| USB |
8 |
4x USB 3.2 Gen2x1(10Gbps)/USB 2.0,
4x USB 2.0 |
| Display |
2 |
1x HDMI , 1x DP |
| Audio |
1 |
1x Mic-In , 1x Line Out |
| LAN |
2 |
1x RJ45 2.5 GbE with TSN support , 1x RJ45 GbE |
| COM |
2 |
1x RS232/422/485,1x RS232 |
| CAN |
0 |
N/A |
| DIO |
0 |
N/A |
| Storage | ||
| M.2 |
2 |
2x M.2 2242 M key SATAIII |
| 2.5” |
0 |
N/A |
| On Board Expansion | ||
| Mini-PCIe
M.2 Expansion |
3 |
2x Full Size Mini-PCIe with SIM supporting 4G/5G/LTE
1x M.2 Key E Type 2230 for BT/GPS |
| M.2 2280 M key |
0 |
N/A |
| Mechanical | ||
| Mechanical | Dimension : 145(w) x 125(D) x 60(H) mm
Weight : 1.2 kg Mounting : Wall Mount |
|
| Mechanical | ||
| AI BOX | Support installing MFSA, this is ENBIK AI BOX which equipped with MXM GPU AI Card | |
| Environmental | ||
| Operating Temp. | -25°C ~ 70°C
-40°C ~ 85°C ( Extended) |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity | 0%~90% , non-condensing | |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 514.8, Category 4 |
|
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 516.8, Procedure I |
|
| EMC | CE/FCC Class A | |
| Power |
| 1x Power Button
1x 3-pin pluggable terminal block for 6~48V DC Input 1x 4-pin pluggable terminal block forIgnition control and Remote Control
|
| Warranty |
| 3 Year Warranty |
| Intel® 14th (15W) | Intel® 13th (15W) | Intel® 12th (15W) | ||||||||||||
| CPU | Ultra 7-155U | Ultra 7-125U | i7-1365URE | i7-1365UE | i5-1335UE | i3-1315UE | i7-1365U | i7-1355U | i5-1335U | i3-1315U | i7-1265U | i7-1255U | i5-1235U | i3-1215U |
| DDR | DDR5 (Max. 96 GB) | DDR5 ( Max. 64 GB) | ||||||||||||
| Cores / Threads | 12 C / 14 T | 12 C / 14 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T |
| P Turbo | up to 4.8GHz | up to 4.3GHz | up to 4.9GHz | up to 4.9GHz | up to 4.5GHz | up to 4.5GHz | up to 5.2GHz | up to 5GHz | up to 4.6GHz | up to 4.5GHz | up to 4.8GHz | up to 4.7GHz | up to 4.4GHz | up to 4.4GHz |
