RVS-X1, 恩比克超迷你手掌大小高效能强固型边缘计算机

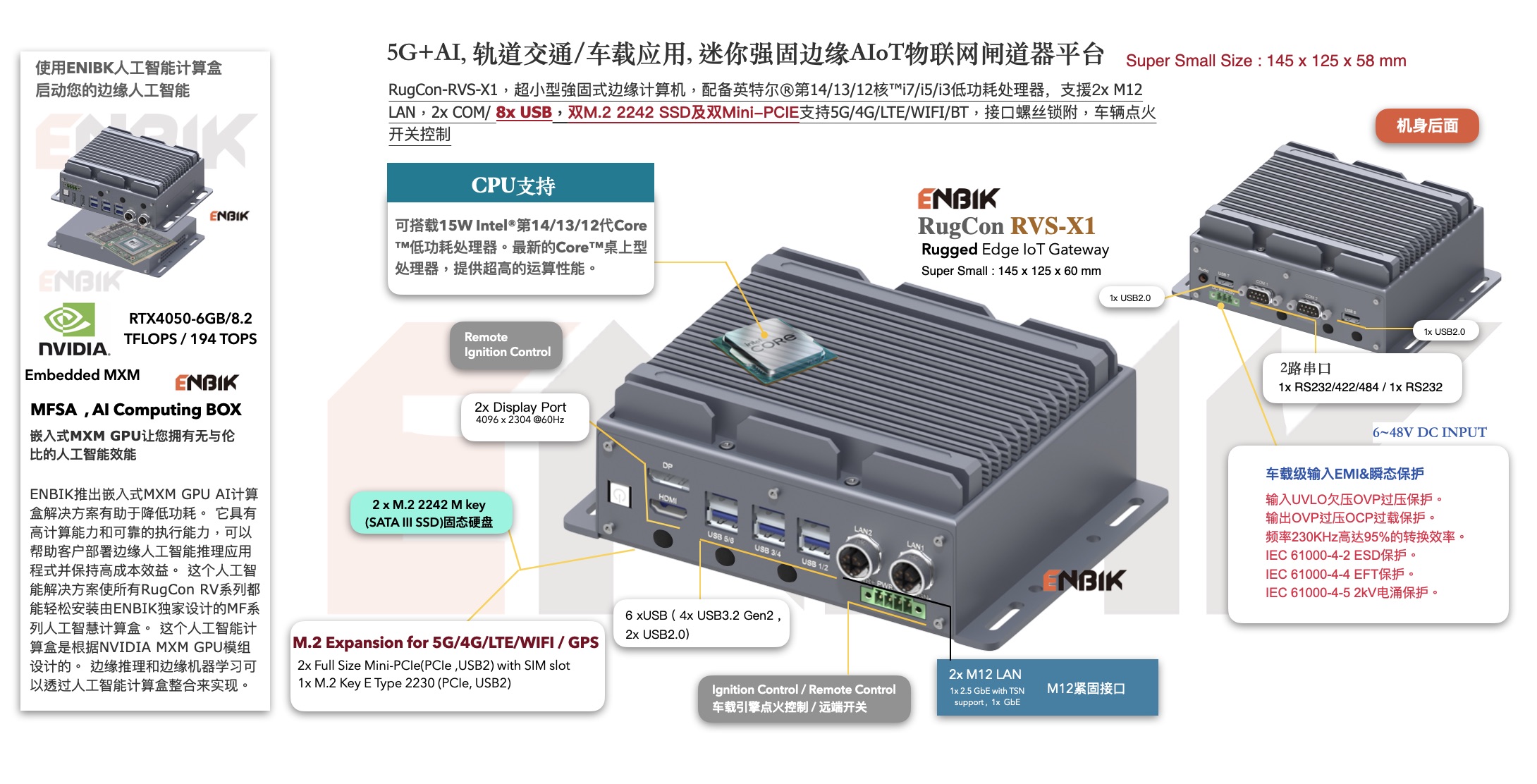

恩比克 RVS-X1，超迷你手掌大小的强固型边缘计算机，配备8个USB / 2个M12区域网和英特尔®第13/12代酷睿™处理器
- Supports Intel® 13th/ 12th-Gen Core™ 15W CPU
- 2x M12 LAN(1x 2.5GbE, 1x GbE)
- 1x RS232/422/485, 1x RS232
- 8x USB(4x USB3.2, 2x USB3.0, 2x USB 2.0) , option for USB Power on/off control
- 1x Mic In/Line Out
- 2x Displays (1x HDMI , 1x DP)
- 2x M.2 2242 SATA III for SSD (1x share with M.2 3052 slot )
- 1x M.2 2242/3052 B key with SIM slot, support 4G/5G
- 1x Full Size Mini-PCIe with SIM slot, support 4G/5G
- 1x M.2 Key E Type 2230 for WIFI/BT/GPS
- 6~48V Wide DC Input Voltage
- -40°C ~ 70°C wide operating temperature
- Ignition/Remote Power Switch Control
- 产品类别： M12网口,强固型边缘计算平台, 强固型工业电脑, 迷你强固边缘计算平台
Introduction
恩比克 RugCon-RVS-X1是一款带有2个M12网口的超迷你手掌尺寸强固型边缘计算机，结合了坚固的防水外壳、低功耗、高效能低功耗英特尔®第13/12代酷睿™ i7/i5/i3处理器和精确的I/O设计，仅为145 x 125 x 60毫米，非常适合空间有限的安装和部署。 RVS-X1提供广泛的I/O埠，包括2个区域网、1个RS232/422/485、1个RS232、8个USB和多个M.2内部扩充套件插槽，用于5G/4G/WIFI/GPS。 RVS-X1还具有2x M.2 2242 SATA III，可以同时安装两个SSD。
RVS-X1支援MXM扩充套件介面，它可以灵活地整合恩比克的MXM GPU AI算力盒，以提高边缘AI深度学习和推理能力。 在低功耗配置驱动高效能计算的同时，它有助于降低功耗，具有高计算能力、高稳定性和高可靠性，帮助客户实现部署密集型人工智慧推理应用，并保持高成本效益。
Application
适用于边缘运算、AIoT、机器视觉、AGV/AMR、车载系统、轨道交通、机器人控制和自动化控制，以及安装空间有限、电源供应有限的各种恶劣和极端边缘环境。
| IO Interface | ||
| USB |
8 |
4x USB 3.2 Gen2x1(10Gbps)/USB 2.0,
4x USB 2.0 |
| Display |
2 |
1x HDMI , 1x DP |
| Audio |
1 |
1x Mic-In , 1x Line Out |
| LAN |
2 |
1x RJ45 2.5 GbE with TSN support , 1x RJ45 GbE |
| COM |
2 |
1x RS232/422/485,1x RS232 |
| CAN |
0 |
N/A |
| DIO |
0 |
N/A |
| Storage | ||
| M.2 |
2 |
2x M.2 2242 M key SATAIII |
| 2.5” |
0 |
N/A |
| On Board Expansion | ||
| Mini-PCIe
M.2 Expansion |
3 |
2x Full Size Mini-PCIe with SIM supporting 4G/5G/LTE
1x M.2 Key E Type 2230 for BT/GPS |
| M.2 2280 M key |
0 |
N/A |
| Mechanical | ||
| Mechanical | Dimension : 145(w) x 125(D) x 60(H) mm
Weight : 1.2 kg Mounting : Wall Mount |
|
| Mechanical | ||
| AI BOX | Support installing MFSA, this is ENBIK AI BOX which equipped with MXM GPU AI Card | |
| Environmental | ||
| Operating Temp. | -25°C ~ 70°C
-40°C ~ 85°C ( Extended) |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity | 0%~90% , non-condensing | |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 514.8, Category 4 |
|
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
MIL-STD-810H, Method 516.8, Procedure I |
|
| EMC | CE/FCC Class A | |
| Power |
| 1x Power Button
1x 3-pin pluggable terminal block for 6~48V DC Input 1x 4-pin pluggable terminal block forIgnition control and Remote Control |
| Warranty |
| 3 Year Warranty |
| Intel® 14th (15W) | Intel® 13th (15W) | Intel® 12th (15W) | ||||||||||||
| CPU | Ultra 7-155U | Ultra 7-125U | i7-1365URE | i7-1365UE | i5-1335UE | i3-1315UE | i7-1365U | i7-1355U | i5-1335U | i3-1315U | i7-1265U | i7-1255U | i5-1235U | i3-1215U |
| DDR | DDR5 (Max. 96 GB) | DDR5 ( Max. 64 GB) | ||||||||||||
| Cores / Threads | 12 C / 14 T | 12 C / 14 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T |
| P Turbo | up to 4.8GHz | up to 4.3GHz | up to 4.9GHz | up to 4.9GHz | up to 4.5GHz | up to 4.5GHz | up to 5.2GHz | up to 5GHz | up to 4.6GHz | up to 4.5GHz | up to 4.8GHz | up to 4.7GHz | up to 4.4GHz | up to 4.4GHz |
