conga-HPC/cRLP
COM-HPC Mini Size high performance module based on 13th Gen Intel® Core™ processor series (code name “Raptor Lake-P”)
- Intel® hybrid design combines Performance-cores with Efficient–cores
- Up to Intel® UHD Graphics 770 driven by Xe Architecture
- PCI Express Gen 4 and 5 | USB 3.2 Gen 2×2
- AI Acceleration based on Intel® Deep Learning Boost (VNNI)
产品介绍
产品规格
订购资讯
相关配件
资讯下载
产品介绍
产品规格
| Item | Description |
| Formfactor | COM-HPC |
| CPU |
Intel® Core™ i7-13800HE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365UE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i5-1340PE (4 P-cores 1.8GHz up to 4.5GHz, 8 E-cores 1.3GHz up to 3.3GHz, 12MB cache, 28W)
Intel® Core™ i3-1315UE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
|
| DRAM | 2 SO-DIMM sockets for DDR5 memory modules up to 48 GB RAM each (max. 96 GB RAM system capacity) |up to 5200 MT/s |
| Ethernet |
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
|

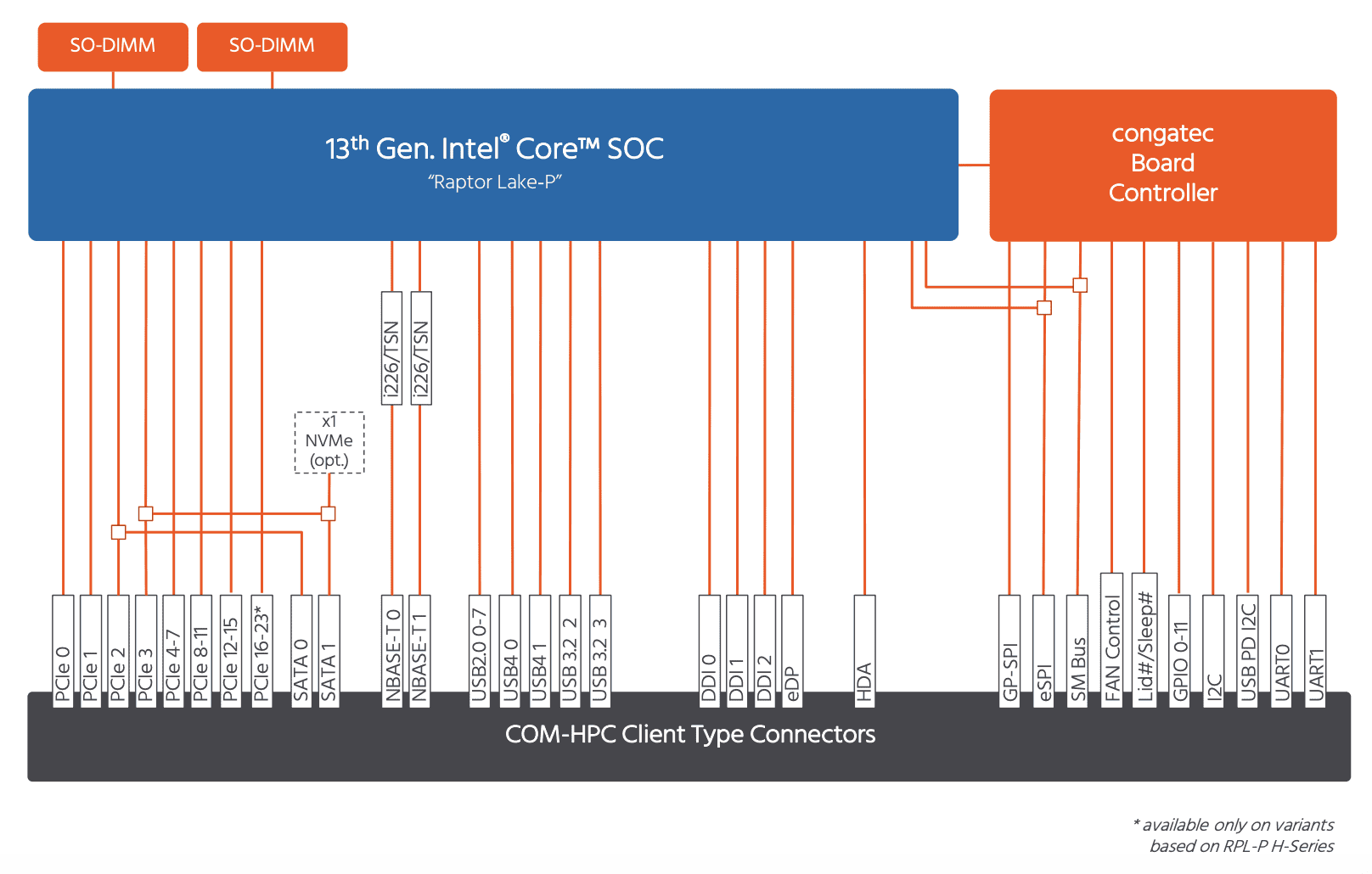

| I/O Interfaces |
8 x PCIe Gen5 (only available on variants based on RPL-P H series)
2 x4 PCIe Gen4
up to 8 PCIe Gen3
2 x USB4
2 x USB 3.2 Gen2x1
Up to 8x USB 2.0
up to 2x SATA
2 x UART
12 x GPIOs
eSPI
SM-Bus
I²C bus
GSPI
|
| Mass storage | NVMe x1 SSD (optional) |
| Graphics | Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 80 EUs |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Security |
Trusted Platform Module (TPM 2.0)
|
| Power Management |
ACPI 6.0 with battery support
|
| Operating Systems |
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces |
3x DDI | eDP
|
| Size | 95 x 120 mm |
订购资讯
| P/N | Product name | Description |
| 045500 | conga-HPC/cRLP-i7-13800HE | COM-HPC Size A module based on Intel® Core™ i7-13800HE processor with6 P-cores 2.5GHz up to 5.0GHz and 8 E-cores 1.8GHz up to 4.0GHz | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 045501 | conga-HPC/cRLP-i7-1370PE | COM-HPC Size A module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz and 8 E-cores 1.2GHz up to 3.7GHz | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 045502 | conga-HPC/cRLP-i7-1365UE | COM-HPC Size A module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz and 8 E-cores 1.2GHz up to 3.7GHz | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045504 | conga-HPC/cRLP-i5-1340PE | COM-HPC Size A module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz and 8 E-cores 1.3GHz up to 3.3GHz | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 045508 | conga-HPC/cRLP-i3-1315UE | COM-HPC Size A module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045510 | conga-HPC/cRLP-i7-13800HRE | COM-HPC Size A module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz and 8 E-cores 1.8GHz up to 4.0GHz | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) |
| 045511 | conga-HPC/cRLP-i7-1370PRE | COM-HPC Size A module based on Intel® Core™ i7-1370PRE processor with6 P-cores 1.9GHz up to 4.8GHz and 8 E-cores 1.2GHz up to 3.7GHz | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 045512 | conga-HPC/cRLP-i7-1365URE | COM-HPC Size A module based on Intel® Core™ i7-1365URE processor with2 P-cores 1.7GHz up to 4.9GHz and 8 E-cores 1.2GHz up to 3.7GHz | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| 045514 | conga-HPC/cRLP-i5-1350PRE | COM-HPC Size A module based on Intel® Core™ i5-1350PRE processor with4 P-cores 1.8GHz up to 4.6GHz and 8 E-cores 1.3GHz up to 3.4GHz | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
相关配件
| P/N | Product name | Description |
| 049550 | conga-HPC/cRLP-CSA-HP-B | Standard active cooling solution for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 049551 | conga-HPC/cRLP-CSA-HP-T | Standard active cooling solution for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are M2.5mm threaded. |
| 049552 | conga-HPC/cRLP-CSP-HP-B | Standard passive cooling solution for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are with 2.7mm bore hole. |
| 049553 | conga-HPC/cRLP-CSP-HP-T | Standard passive cooling solution for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are M2.5mm threaded. |
| 049554 | conga-HPC/cRLP-HSP-HP-B | Standard heatspreader for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole. |
| 049555 | conga-HPC/cRLP-HSP-HP-T | Standard heatspreader for COM-HPC module conga-HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded. |
| 065600 | conga-HPC/EVAL-Client | Evaluation Carrier Board for COM-HPC Client type Modules. |
| 065620 | conga-HPC/uATX-Client | COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size A,B and C. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-HPC/cRLP
2024/08/01
Manual
User’s Guide for conga-HPC/cRLP
2024/07/02
