conga-TCA7
COM Express Type 6 Compact based on Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors
- COM Express Type 6 Compact based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors
- High performance Intel® UHD Graphics for 10th Gen Intel® Processors
- Up to 3.200 MT/s DDR4 SODIMM Memory Support
- Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability
- Options for Industrial Temperature Range -40°C to 85°C
产品介绍
产品规格
订购资讯
相关配件
资讯下载

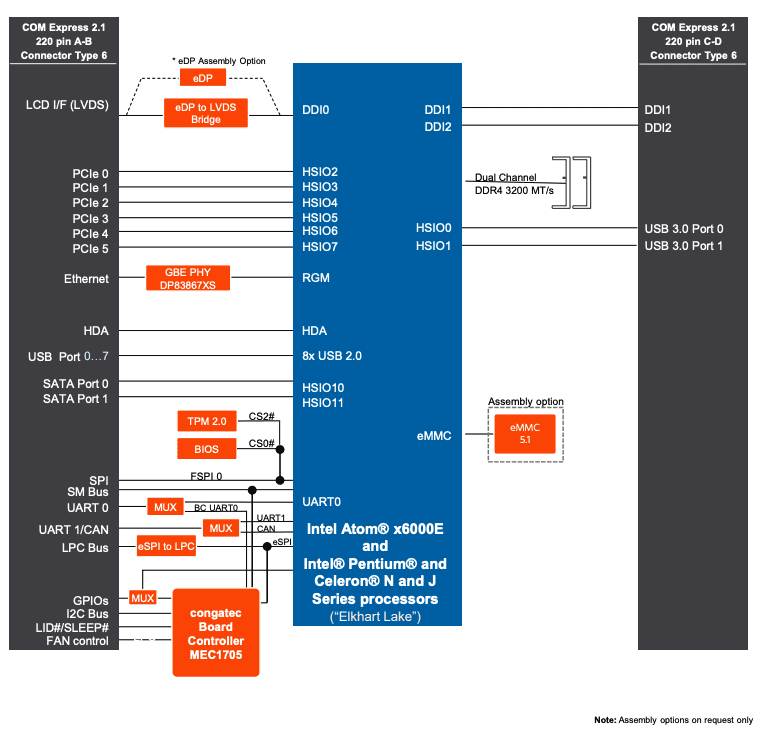

产品介绍
产品规格
| Item | Description |
| Formfactor | COM Express Compact |
| CPU |
Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W)
Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
|
| DRAM | Support for 2x SO DIMM on socket (dual channel DDR4 up to 3.200 MT/s) | max. 32 GB total capacity |
| Ethernet |
Intel® GbE with TSN support | real-time trigger
|
| I/O Interfaces |
Up to 6x PCIe Gen3
2 x USB 3.1 Gen2
Up to 8x USB 2.0
2 x SATA III (6Gb/s)
2 x UART (UART1 muxed with CAN)
GPIOs
I²C bus
SM-Bus
SPI
LPC bus
|
| Mass storage | eMMC 5.1 onboard flash up to 128 Gbyte (optional) |
| Graphics | Intel® UHD Graphics (Gen11) |
| congatec Board Controller | Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control |
| embedded BIOS Features |
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
|
| Item | Description |
| Operating Systems |
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
|
| Hypervisor |
RTS Real-Time Hypervisor
|
| Temperature |
Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces |
Dual channel 18/24 bit LVDS interface up to 1920×1200@60Hz | shared with eDP up to 3840×2160@60Hz (option)
2 x DP++
|
| Size | 95 x 95 mm (3,74″ x 3,74″) |
订购资讯
| P/N | Product name | Description |
| 049300 | TCA7/x6425E | COM Express Compact module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. |
| 049301 | TCA7/x6413E | COM Express Compact module with Intel® Atom® x6413E quad core processor with 1.5GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. |
| 049302 | TCA7/x6211E | COM Express Compact module with Intel® Atom® x6211E dual core processor with 1.3GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. |
| 049310 | TCA7/i-x6425RE | COM Express Compact module with Intel® Atom® x6425RE quad core processor with 1.9GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 049311 | TCA7/i-x6414RE | COM Express Compact module with Intel® Atom® x6414RE quad core processor with 1.5GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 049312 | TCA7/i-x6212RE | COM Express Compact module with Intel® Atom® x6212RE dual core processor with 1.2GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade temperature range from -40°C to 85°C. |
| 049320 | TCA7/J6426 | COM Express Compact module with Intel® Pentium® J6426 quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. |
| 049321 | TCA7/J6413 | COM Express Compact module with Intel® Celeron® J6413 quad core processor with 1.8GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. |
相关配件
| P/N | Product name | Description |
| 049350 | TCA7/i-HSP-B | Standard heatspreader for COM Express Compact module conga-TCA7 with lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. |
| 049351 | TCA7/i-HSP-T | Standard heatspreader for COM Express Compact module conga-TCA7 with lidded Intel Atom x6000E processors. All standoffs are M2.5mm thread. |
| 049352 | TCA7/i-CSP-B | Passive cooling solution for COM Express Compact module conga-TCA7 with lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. |
| 049353 | TCA7/i-CSP-T | Passive cooling solution for COM Express Compact module conga-TCA7 with lidded Intel Atom x6000E processors. All standoffs are M2.5mm thread. |
| 049354 | TCA7/HSP-B | Standard heatspreader for COM Express Compact module conga-TCA7 with open silicon Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore hole. |
| 049355 | TCA7/HSP-T | Standard heatspreader for COM Express Compact module conga-TCA7 with open silicon Intel Pentium/Celeron J and N processors. All standoffs are M2.5mm thread. |
| 049356 | TCA7/CSP-B | Passive cooling solution for COM Express Compact module conga-TCA7 with open silicon Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore hole. |
| 049357 | TCA7/CSP-T | Passive cooling solution for COM Express Compact module conga-TCA7 with open silicon Intel Pentium/Celeron J and N processors. All standoffs are M2.5mm thread. |
资讯下载
文件类型
档案名称
更新日期
下载
Datasheet
Data Sheet for conga-TCA7
2024/10/09
Manual
User’s Guide for conga-TCA7
2024/11/11
